IPC4-RT-I14A-i510-1235-16128

Brand: IPC4 by ICC
Categories:

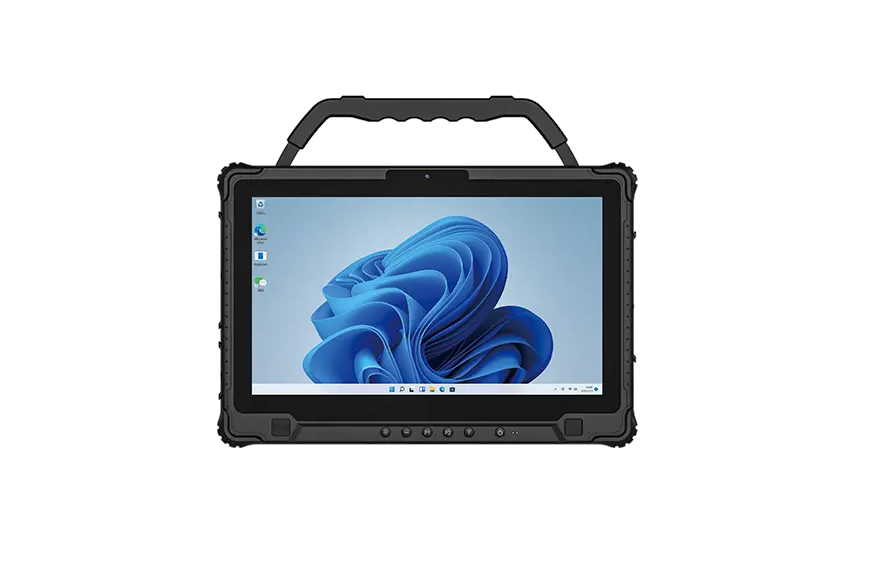

A rugged industrial tablet PC equipped with an Intel® i5-1235U processor, offering high performance in harsh industrial and field conditions.

It is a perfect screen for outdoor use with its 14" FHD 1920x1080 resolution and 1000cd/m² brightness.

10-point capacitive touch screen offers high sensitivity with G+G technology.

While it offers a powerful performance with 16 GB DDR5 RAM, it can be optionally increased up to 32 GB.

It has 256 GB SSD storage capacity and can be optionally upgraded to 512 GB or 1 TB.

5G and LTE connections can be added optionally, providing uninterrupted internet connection in any environment.

It can take high-quality photos and videos with its front (5.0MP USB) and rear (8 MP USB) cameras.

It offers secure login with fingerprint reader.

Extensive connectivity options including USB3.2, Thunderbolt 4, HDMI 2.0a and RJ45 LAN (2x).

Clear sound output thanks to dual speakers (4Ω/3W x2).

Long battery life with 56WH capacity large battery and additional 14.4WH bridge battery.

With MIL-STD 810G certification, it can operate in harsh weather and environmental conditions.

Thanks to its IP65 protection class, it is resistant to dust and water splashes.

It provides secure authentication and fast data transfer with NFC support.

Thanks to its modular structure, it supports special configurations for different business lines.

It is suitable for field use with its optional passive pen, 5G module and additional battery support.

It can be used worldwide thanks to the 100~240V adapter support.

Provides better viewing under sunlight with the anti-reflective film option.

It offers high durability in industrial, defense, logistics and open field operations.

It provides uninterrupted use with its long-lasting battery technology.

Increases portability with its ultra-lightweight design.

It offers quick access to the control center and camera with a user-friendly physical keypad.


Features


Product Code IPC4-RT-I14A-i510-1235-16128
Screen size 14" TFT LCD
Resolution 1920 x 1080
Screen Format 16 | 9
Brightness 1000 cd/m²
Touch Type 10-point capacitive
Embedded GPU Intel® Iris® Xe Graphics eligible
Cooling Without Fan
Processor [CPU] Intel® Core™ i5-1235U 10 Core 1.30 / 4.40 GHz | BM : 13570
Processor [CPU] Family Intel® Core™ i5 12th Gen
RAM [System Memory] 16 GB (Optional: 32 GB)
SSD/HDD/mSATA/M.2 256 GB (512 GB/1 TB SSD Optional)
LAN/Ethernet GbE x 2 Optional
USB 3.2 x1
USB 2.0 x2
USB Type-C Thunderbolt 4 x 1
RS 232 Serial Port x1
Video Output HDMI 2.0a (Mini) x 1
POGO 12PIN Pogo Pin x 1
Audio Output 3.5mm headphone jack
Expansion Slot Micro SD x 1
Wireless 802.11
Bluetooth BT5.1 (BLE)
Front camera 5MP
Rear Camera 13 MP
4G - LTE It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price.
GPS (+)
G Sensor (+)
2D/QR Code Reader Optional
Fingerprint reader (+)
NFC Optional
Battery Main Battery: 1300mAh / 11.1V (14.4WH) (Fixed) Switch Battery: 4850mAh / 11.55V (56WH) (8 hours video playback)
SHIMMER x1
Supply Voltage DC 19V/3.78A
Working temperature -20°C ~ 60°C
External Dimensions (mm) 366.2 x 246.9 x 24.8
Body Material ABS+METAL
IP Protection Class IP65
Certificates CE | MIL-STD-810H
Supported Operating Systems Windows®10 | Windows®11 | Linux | Operating system license sold separately.
