IPC4-RT-I10A-i510-1235-16128
Brand: IPC4 by ICC
Categories:

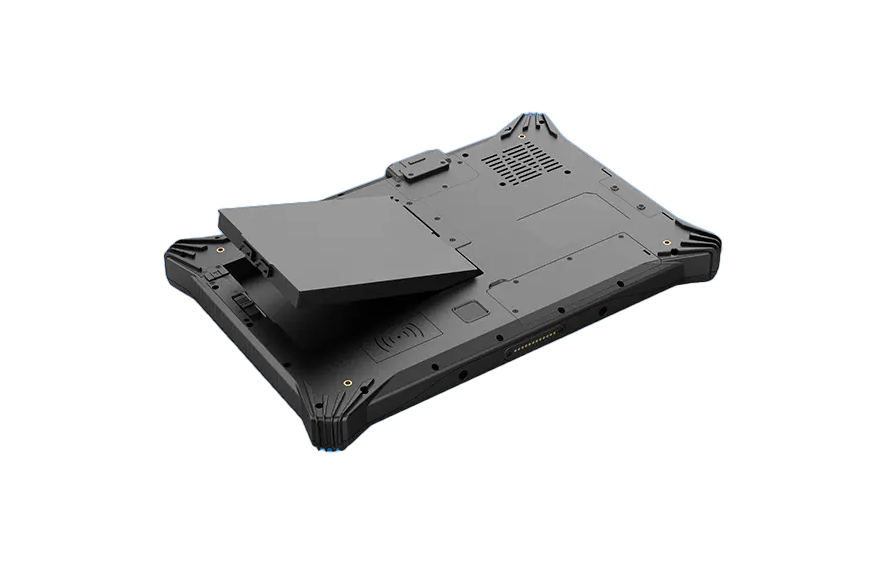

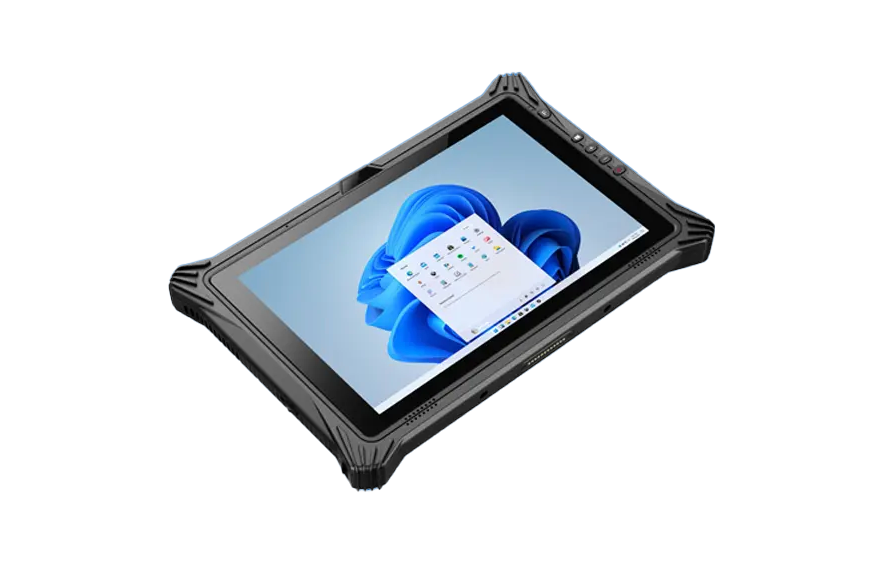

A rugged tablet PC suitable for field and industrial use, equipped with Intel® Alder Lake i5-1235U/i7-1255U processor options.
It is a perfect screen for outdoor use with its 10.1" FHD 1920x1200 resolution and 700nits brightness value.
PCAP capacitive touch screen provides high sensitivity operation even with gloves.
It offers performance suitable for demanding workloads with its 16 GB DDR4L RAM option.
It offers ample data storage space with 128GB SSD storage capacity.
Thanks to Wi-Fi 6 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax technology, it offers dual band (2.4G + 5.8G) wireless connection support.
It can take high-quality images and videos with its 2.0MP front and 8.0MP rear cameras.
It offers secure login with fingerprint reader.
It offers extensive connectivity options such as USB 3.0, Type-C, HDMI 1.4a and RJ45 LAN ports.
Built-in speaker (8Ω/0.8W) provides clear sound output.
Provides long battery life with dual battery system (7.4V / 860mAh + 7.4V / 5000mAh).
It complies with MIL-STD 810G military standards and can operate in harsh weather and environmental conditions.
It provides accurate location tracking with GPS, Beidou and GLONASS support.
It is resistant to dust and water thanks to its IP65 protection class.
Thanks to its modular structure, it can be customized for different business lines.
Optional NFC, 4G LTE and 2D, RJ45, DB9, USB2.0 and QR Code Scanner barcode scanner modules can be added.
It can be used worldwide thanks to the 100~240V adapter support.
Increases portability with in-car mounting kit and accessories such as shoulder strap, hand strap, carrying handle, power adapter.
It is ideal for industrial, logistics, open field and defense industry applications.
Offers 2-in-1 use with optional detachable keyboard.
Its lightweight and durable design increases portability for field workers.
Optional accessories such as a Docking Charger, Vehicle Mount, Removable Battery, and Quad Charging enhance portability. Active and passive pen support allows for precise data entry.
Features
| Product Code | IPC4-RT-I10A-i510-1235-16128 |
| Screen size | 10.1" TFT LCD |
| Resolution | 1920 x 1200 |
| Screen Format | 16 | 10 |
| Brightness | 700 cd/m² |
| Touch Type | Projective Capacitive [P-CAP] |
| Embedded GPU | Intel® Iris® Xe Graphics eligible |
| Cooling | IPX5 Fan x 1 |
| Processor [CPU] | Intel® Core™ i5-1235U 10 Core 1.30 / 4.40 GHz | BM : 13570 |
| Processor [CPU] Family | Intel® Core™ i5 12th Gen |
| RAM [System Memory] | 16 GB DDR4L (4800MHz) |
| SSD/HDD/mSATA/M.2 | 128 GB ROM |
| LAN/Ethernet | RJ45 x 1 (10/100Mbps) Optional |
| USB 3.0 | x1 |
| USB Type-C | x1 |
| RS 232 Serial Port | Optional DB9 x1 |
| Video Output | HDMI 1.4a mini x 1 |
| POGO | 12PIN Pogo Pin x 1 |
| Audio Output | Built in 8Ω/1W Waterproof Speaker x 1 |
| Expansion Slot | Micro SD x 1 128GB |
| Wireless | 802.11 |
| Bluetooth | BT5.1 (BLE) |
| Front camera | 2 MP |
| Rear Camera | 8MP |
| 4G - LTE | It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price. |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | (Optional) N3680 Hardware Decoder x 1 |
| Fingerprint reader | (+) |
| Battery | Main Battery: 7.4V/860mAh, Transition Battery: 7.4V/5000mAh |
| Docking + In-Vehicle Mounting | (Optional) DC10U (+) (Optional) VHM10U (Optional) (+) |
| SHIMMER | x1 |
| Supply Voltage | DC 9-19V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 289.9 x 196.7 x 27.4 |
| Weight (kg) | 1230g |
| Body Material | ABS+PC |
| IP Protection Class | IP65 |
| Certificates | CE | MIL-STD-810G |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
