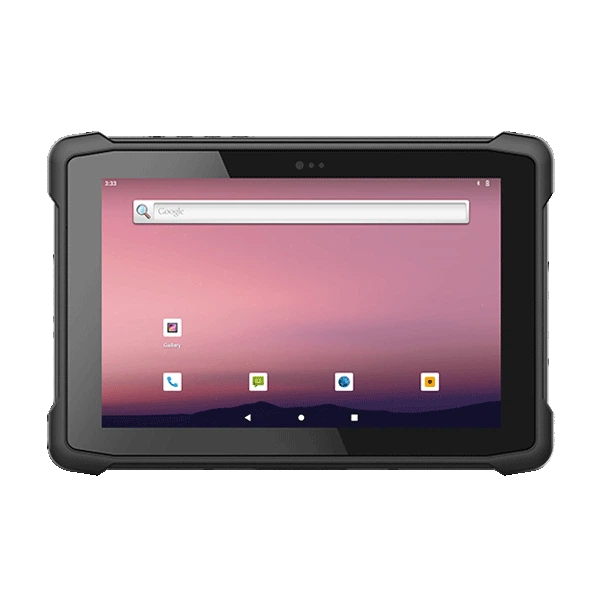

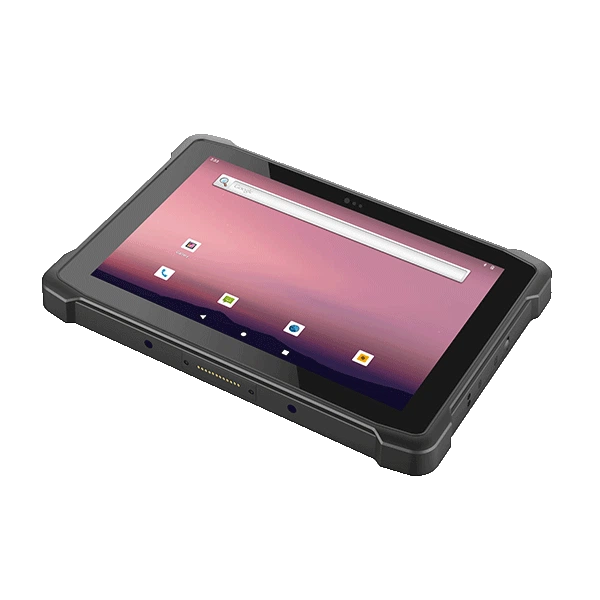

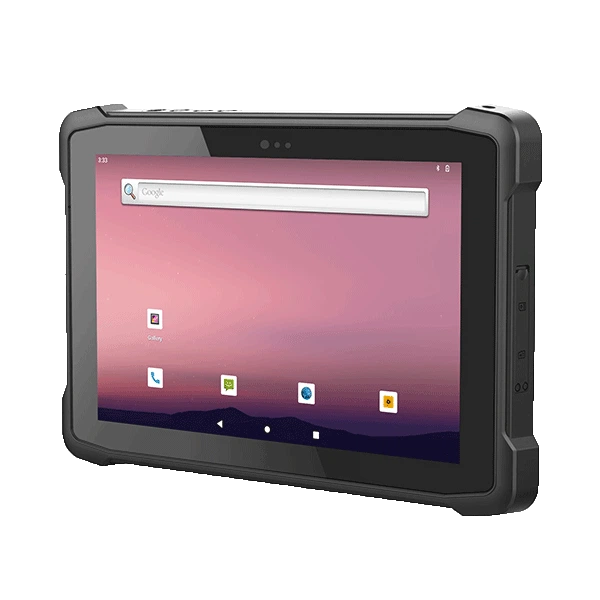

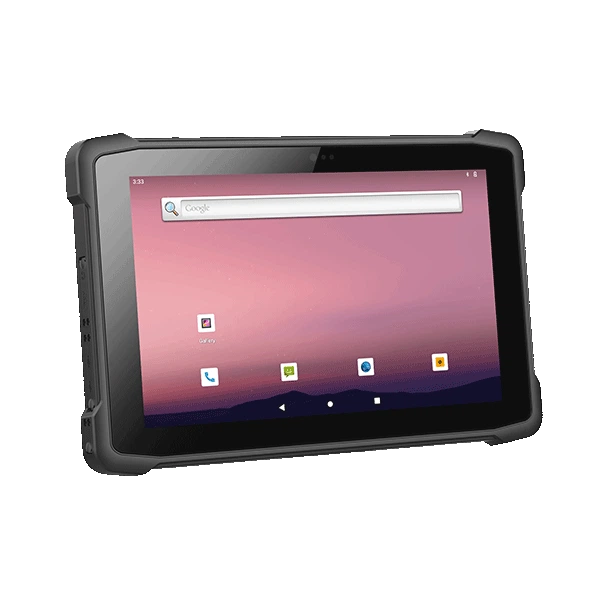

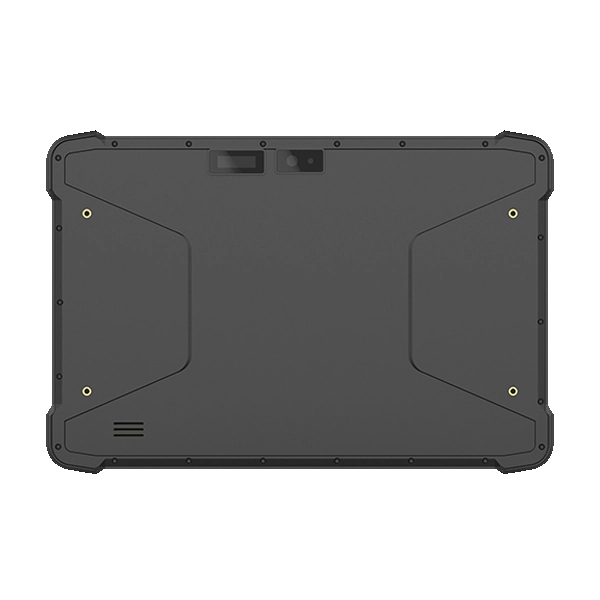

IPC4-RT-AT11X-8128
Brand: IPC4 by ICC
Categories:
Industrial tablet developed for harsh field conditions with MediaTek MT6789 Octa-Core processor and Android 14 (GMS) operating system.
The 10.1-inch IPS screen offers a clear image even in open areas with its 1280x800 resolution and 700 nit brightness.
It provides smooth performance in multitasking with 8GB LPDDR4 RAM.
It offers ample storage for apps and data with 128GB eMMC internal memory.
It provides fast and stable connection with Wi-Fi 802.11 a/b/g/n/ac (2.4G + 5G) dual band support.
High-quality images and videos can be taken with the front 5 MP and rear 13 MP cameras.
Provides low energy consumption and high-speed connection with Bluetooth 5.2 (BLE).
It offers up to 9 hours of continuous use with its 8000mAh battery.
It is equipped with sensors such as G-sensor, gyroscope and magnetic compass.
Provides uninterrupted communication in the field with 4G LTE mobile connection.
It offers high location accuracy with GPS + GLONASS + Beidou support.
Additional storage up to 512 GB can be added with the Micro SD card slot.
It provides easy access to peripherals with USB 2.0 and USB Type-C connections.
An external display can be connected via the Mini HDMI output.
It is ideal for warehouse and logistics applications with optional Zebra SE4710 2D barcode reader support.
Standard accessories: Power adapter, Type-C cable, OTG cable, hand strap.
Optional accessories: Vehicle mount kit, additional battery, swivel handle, carrying strap, magnetic keyboard.
Provides easy use in the vehicle with the in-car mounting kit (VHM11).
IPC4 Rugged Tablets offer reliable solutions for the logistics, public safety and construction sectors with their durability in harsh environments.
With its advanced GPS module, it works with high precision in applications such as land measurement and fleet tracking.
Thanks to its high-resolution screen, technical drawings and detailed information in the field can be easily viewed.
It simplifies industrial processes with its durable design, high-performance processor and wide connectivity options.
Features
| Product Code | IPC4-RT-AT11X-8128 |
| Screen size | 10.1" IPS |
| Resolution | 1280 x 800 |
| Screen Format | 16 | 10 |
| Brightness | 700 cd/m² |
| Touch Type | 10-point capacitive [G+G, 6H hardness, scratch-resistant] |
| Embedded GPU | ARM® Mali-G57 MC2 |
| Cooling | Without Fan |
| Processor [CPU] | MediaTek MT6789 Octa-Core |
| Processor [CPU] Family | MediaTek® |
| RAM [System Memory] | 8 GB |
| SSD/HDD/mSATA/M.2 | 128 GB eMMC |
| LAN/Ethernet | RJ45 x 1 (10/100Mbps) Optional |
| USB 2.0 | x1 |
| USB Type-C | x 1 (Data & Charging) |
| Video Output | Mini HDMI x 1 |
| POGO | 12PIN Pogo Pin x 1 |
| Audio Output | Built in 8Ω/1W Waterproof Speaker x 1 |
| Expansion Slot | Micro SD x 1 (supports 512GB) |
| Wireless | 802.11 a/b/g/n/ac |
| Bluetooth | BT5.2 (BLE) |
| Front camera | 5MP |
| Rear Camera | 13 MP |
| 4G - LTE | It comes with standard hardware. It will be delivered with an IMEI registration to BTK. IMEI registration is included in the price. |
| GPS | (+) |
| G Sensor | (+) |
| 2D/QR Code Reader | Optional (Zebra SE4710) |
| NFC | Optional |
| Gyro-Sensor | (+) |
| Battery | 3.7V / 8000mAh, Li-Polymer |
| Battery Usage Time | 9 hours (default 50% volume, 50% brightness, 1080P video playback) |
| Docking + In-Vehicle Mounting | (Optional) DC82 VHM11 |
| SHIMMER | x 1 (Nano-SIM) |
| E-compass | (+) |
| Supply Voltage | DC 5V/3A |
| Working temperature | -10°C ~ 55°C |
| External Dimensions (mm) | 275.7 x 187.5 x 24.5 |
| Weight (kg) | 1000g |
| Body Material | PC+ABS+TPU |
| IP Protection Class | IP65 |
| Certificates | CE | MIL-STD-810G |
| Supported Operating Systems | Android 14 |
