IPC4-RL-X15T-i510-1135-16256

Brand: IPC4 by ICC
Categories: Rugged Laptop

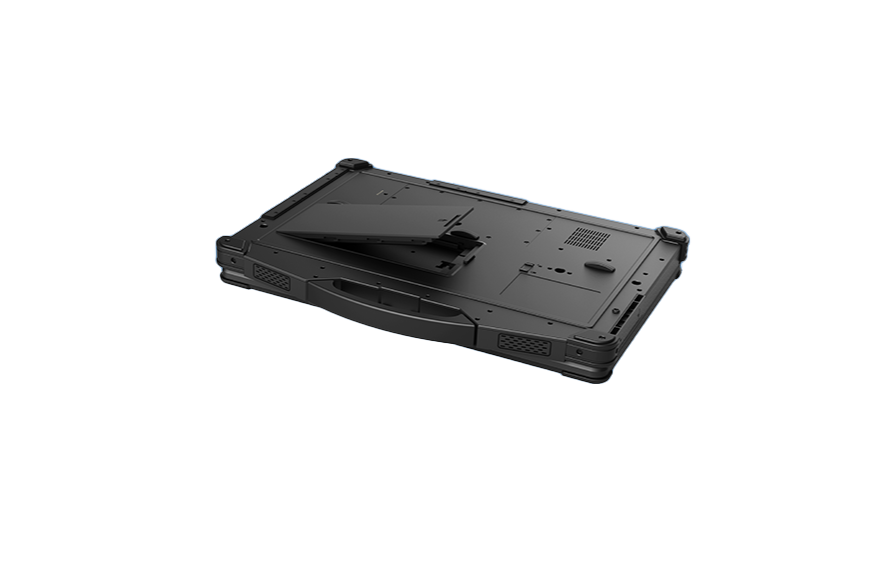

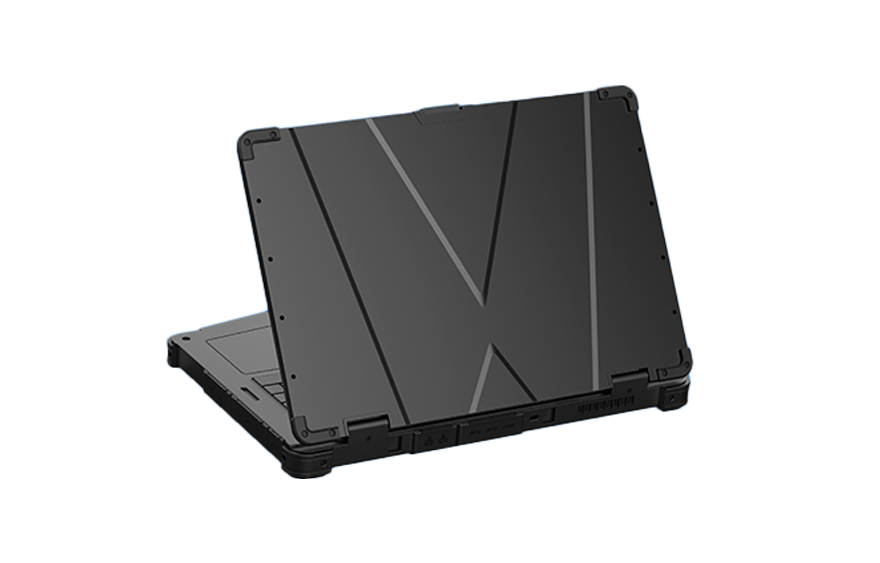

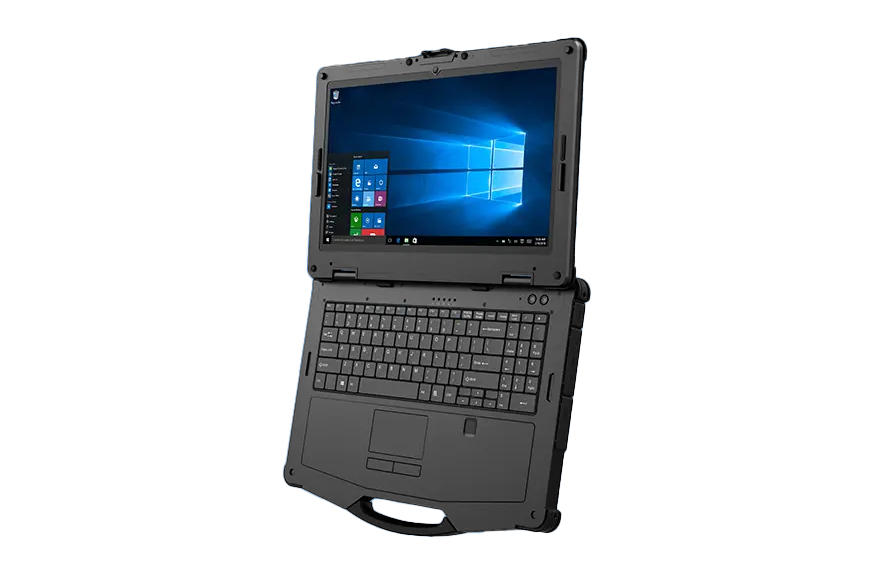

A rugged laptop for industrial and demanding environments, equipped with Intel's 11th generation Tiger Lake i5-1135G7 and i7-1165G7 processors.

It is a perfect screen for outdoor use with its 15.6" FHD 1920x1080 resolution and 700cd/m² brightness value.

While it offers high performance with 16 GB DDR4 RAM, it optionally supports higher memory capacities.

It offers large storage capacity with 256GB, 512GB or 1TB M.2 SSD options. Additionally, storage space can be increased with 2.5” HDD support.

5G and LTE connections can be added optionally, providing uninterrupted internet connection in any environment.

It is suitable for field work and mapping applications with built-in GNSS (GPS, GLONASS and QZSS support).

It offers increased security with fingerprint reader and TPM 2.0.

Extensive connectivity options including USB 3.0 x3, USB 2.0 x1, HDMI, SD card slot and RJ45 LAN (2x).

Dual speakers (8Ω/1W x2) deliver clear sound.

Long battery life with removable 1750mAh and 6300mAh capacity batteries.

With MIL-STD 810G certification, it can operate in harsh weather and environmental conditions.

Thanks to its IP65 protection class, it is resistant to dust and water splashes.

Provides video conferencing support with 2MP front camera.

It can be customized with optional components such as NFC, 4G LTE, 5G and additional security modules.

Thanks to its modular structure, it supports special configurations for different business lines.

It is suitable for long-term field use with optional spare battery and fast charging stations.

It can be used worldwide thanks to the 100~240V adapter support.

A touch screen can be added as an option.

Provides better viewing under the sun with the anti-reflective film option.

It offers high durability in industrial, defense, logistics and open field operations.

It provides uninterrupted use with its long-lasting battery technology.

Increases portability with its ultra-lightweight design.


Features


Product Code IPC4-RL-X15T-i510-1135-16256
Screen size 15.6" TFT LCD
Resolution 1920 x 1080
Screen Format 16 | 9
Brightness 700 cd/m²
Touch Type Opsiyonel
GPU Intel® Iris® Xe Graphics, up to 96EU (GPU1.3G)
Cooling Without Fan
Processor [CPU] Intel® Core™ i5-1135G7 4 Core 2.40 GHz | BM : 10000
Processor [CPU] Family Intel® Core™ i5 11. Gen
RAM [System Memory] 16 GB DDR5 SO-DIMM, maksimum 64GB
SSD/HDD/mSATA/M.2 256 GB SSD
LAN/Ethernet GbE x 2
USB 3.0 x 3
USB 2.0 x 1
RS 232 Serial Port x 1
RS 485 Serial Port x 1
Video Output HDMI Type A x 1
Audio Output Mic-in x 1 + Line-out x 1 + Built in 8Ω/1W Waterproof Speaker x 2
Wireless 802.11
Bluetooth BT5.1 (BLE)
Front camera 2 MP
4G - LTE Opsiyonel
Fingerprint reader (+)
Battery Ana Batarya: 1750mAh / 7.4VGeçiş Bataryası: 6300mAh / 7.4V (Çıkarılabilir)
Docking + In-Vehicle Mounting Docking
Supply Voltage DC 9-19 V
Working temperature -20°C ~ 60°C
External Dimensions (mm) 407 x 305.8 x 45.5
IP Protection Class IP65
Certificates CE | FCC | MIL-STD 810G
Supported Operating Systems Windows®10 | Windows®11 | Linux | Operating system sold separately from license.
