IPC4-RL-X15M-U710-155H-32256

Brand: IPC4 by ICC
Categories: Rugged Laptop

It is a rugged laptop equipped with Intel's Meteor Lake-H series processors, delivering high performance in harsh industrial and field conditions.

It offers a perfect screen for outdoor use with its 15.6" FHD 1920x1080 resolution and 1000cd/m² brightness value.

It provides high performance even under heavy workloads with maximum 96 GB RAM support.

It offers expandable storage with dual M.2 SSD slots.

5G and LTE connectivity can be added optionally, providing uninterrupted internet connection in any environment.

Built-in GNSS (GPS and GLONASS support) is ideal for field work and mapping applications.

It offers increased security with fingerprint reader and TPM 2.0.

It includes extensive connectivity options including USB3.2, Thunderbolt 4, HDMI and RJ45 LAN (2x).

It offers clear sound output thanks to dual speakers (4Ω/3W x2).

It provides long battery life with its 56WH capacity main battery and additional 14.4WH bridge battery.

It has MIL-STD 810G certification and can operate in harsh weather and environmental conditions.

Thanks to its IP65 protection class, it is resistant to dust and water splashes.

Provides video conferencing support with 5MP front camera.

It can be customized with optional components such as NFC, 4G LTE, 5G and additional security modules.

With its modular structure, it supports special configurations for different business lines.

It is suitable for long-term field use with optional spare battery and fast charging stations.

It can be used worldwide thanks to the 100~240V adapter support.

A touch screen can be added as an option.

Provides better viewing under the sun thanks to the anti-reflective film option.

It offers high durability in industrial, defense, logistics and open field operations.

It provides uninterrupted use with its long-lasting battery technology.

Increases portability with its ultra-lightweight design.


Features


Product Code IPC4-RL-X15M-U710-155H-32256
Screen size 15.6" TFT LCD
Resolution 1920 x 1080
Screen Format 16 | 9
Brightness 1000 cd/m²
Touch Type Projective Kapasitif [P-CAP]
GPU Intel® Xe LPG iGfx/dGfx Graphics
Cooling Without Fan
Processor [CPU] Intel® Core™ Ultra 7 155H 16 Core 3.80 / 4.90 GHz | BM : 24950
Processor [CPU] Family Intel® Core™ Ultra 7
RAM [System Memory] Standart 32 GB [Yükseltilebilir]
SSD/HDD/mSATA/M.2 256 GB NVMe SSD (opsiyonel 512 GB / 1TB)
LAN/Ethernet GbE x 2
USB 3.0 x 1
USB 3.2 x 1
USB 2.0 x 1
USB Type-C Thunderbolt 4 x1
RS 232 Serial Port DB9 (x1)
Video Output HDMI x 1
POGO 12PIN Pogo Pin x1
Audio Output Mic-in x 1 + Line-out x 1 + Built in 4Ω/3W Waterproof Speaker x 2
Expansion Slot 1 x M.2 2280 M-KEY (NVMe SSD support), 1 x M.2 E-KEY (for Wi-Fi, 4G/5G modules or additional expansions)
Wireless 802.11
Bluetooth BT5.1 (BLE)
Front camera 5 MP
4G - LTE Opsiyonel
GPS (+)
Fingerprint reader (+)
NFC Opsiyonel
Battery Ana Batarya: 4850mAh / 11.55V (56WH)Geçiş Bataryası: 1300mAh / 11.1V (14.4WH)
Docking + In-Vehicle Mounting (Opsiyonel) DC10U (+) (Opsiyonel) VHM20U
SHIMMER x 1
Supply Voltage DC 19V/3.78A
Working temperature -20°C ~ 60°C

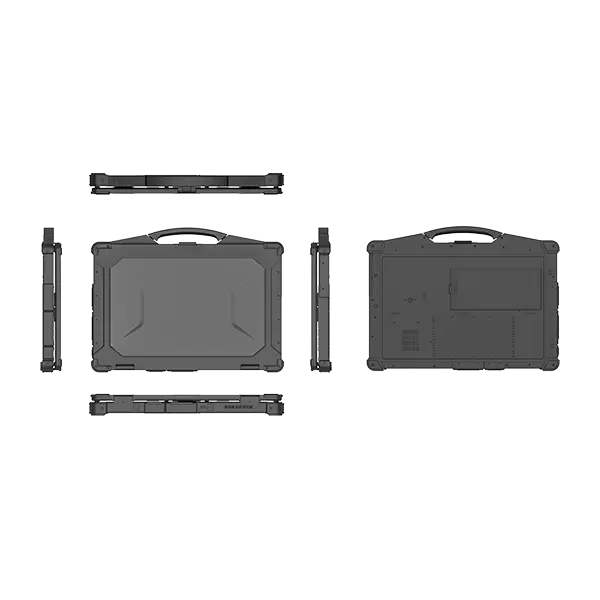

External Dimensions (mm) 407 x 305.8 x 45.5
IP Protection Class IP65
Certificates MIL-STD 810G
Supported Operating Systems Windows®11 [Pre-installed] | License Not Included.
