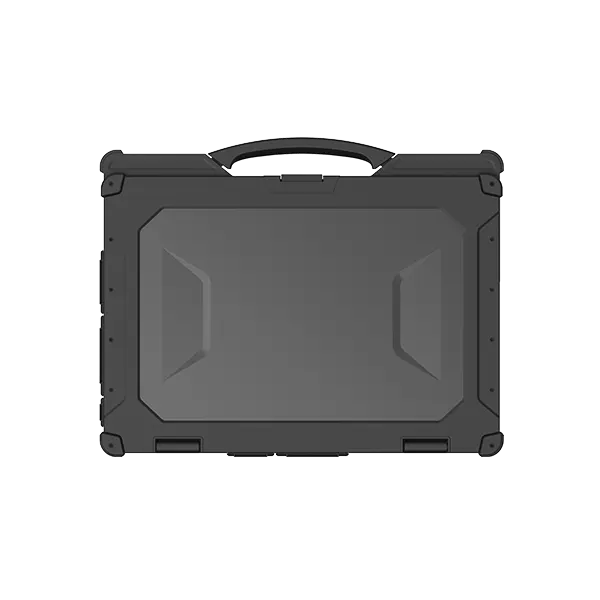

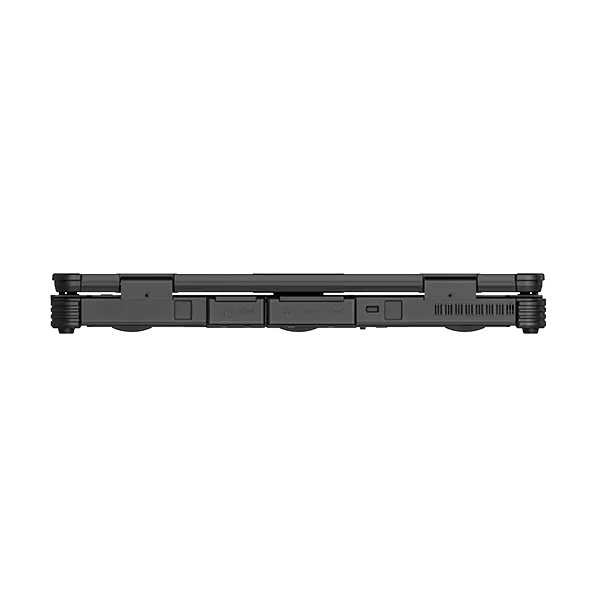

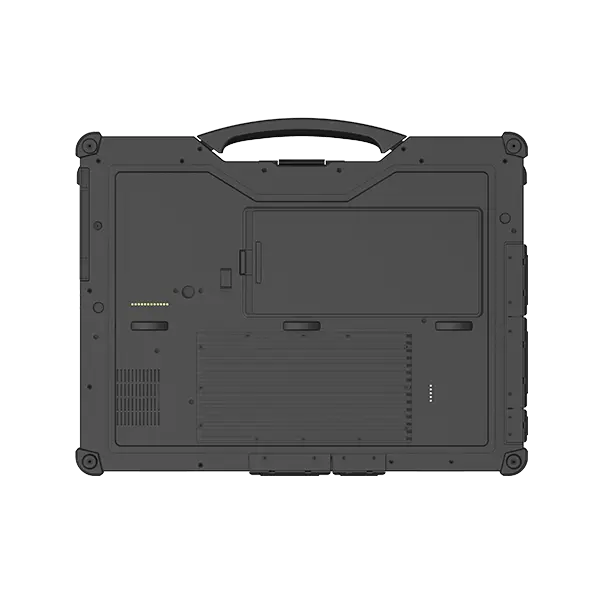

IPC4-RL-X14M-U510-125H-16256

Brand: IPC4 by ICC
Categories: Rugged Laptop

rugged laptop equipped with Intel's Meteor Lake-H series processors, delivering high performance in harsh industrial and field conditions.

It is a perfect screen for outdoor use with its 14" FHD 1920x1080 resolution and 1000cd/m² brightness value.

It provides high performance even under heavy workloads with maximum 96 GB RAM support.

Expandable storage with dual M.2 SSD slots.

5G and LTE connections can be added optionally, providing uninterrupted internet connection in any environment.

Built-in GNSS (GPS and GLONASS support), ideal for field work and mapping applications.

It offers increased security with fingerprint reader and TPM 2.0.

Extensive connectivity options including USB3.2, Thunderbolt 4, HDMI and RJ45 LAN (2x).

Dual speakers (4Ω/3W x2) for clear sound output.

Long battery life with 56WH capacity main battery and additional 14.4WH bridge battery.

With MIL-STD 810G certification, it can operate in harsh weather and environmental conditions.

Thanks to its IP65 protection class, it is resistant to dust and water splashes.

Provides video conferencing support with 5MP front camera.

It can be customized with optional components such as NFC, 4G LTE, 5G and additional security modules.

Thanks to its modular structure, it supports special configurations for different business lines.

It is suitable for long-term field use with optional spare battery and fast charging stations.

It can be used worldwide thanks to the 100~240V adapter support.

A touch screen can be added as an option.

Provides better viewing under the sun with the anti-reflective film option.

It offers high durability in industrial, defense, logistics and open field operations.

It provides uninterrupted use with its long-lasting battery technology.

Increases portability with its ultra-lightweight design.


Features


Product Code IPC4-RL-X14M-U510-125H-16256
Screen size 14" TFT LCD
Resolution 1920 x 1080
Screen Format 16 | 9
Brightness 1000 cd/m²
Touch Type Projective Kapasitif [P-CAP]
GPU Intel® Xe LPG iGfx/dGfx Graphics
Cooling Without Fan
Processor [CPU] Intel® Core™ Ultra 5 125H 14 Core 4.50 GHz | BM : 22300
Processor [CPU] Family Intel® Core™ Ultra 5
RAM [System Memory] 16 GB DDR5 SO-DIMM, maksimum 64GB
SSD/HDD/mSATA/M.2 256 GB NVMe SSD (opsiyonel 512 GB / 1TB)
LAN/Ethernet GbE x 2
USB 3.0 x 1
USB 3.2 x 1
USB 2.0 x 1
USB Type-C Thunderbolt 4 x1
RS 232 Serial Port x 1
Video Output HDMI x 1
POGO 12PIN Pogo Pin x1
Audio Output Mic-in x 1 + Line-out x 1 + Built in 4Ω/3W Waterproof Speaker x 2
Wireless 802.11
Bluetooth BT5.1 (BLE)
Front camera 5 MP
4G - LTE Opsiyonel
GPS (+)
Fingerprint reader (+)
NFC Opsiyonel
Battery Ana Batarya: 4850mAh / 11.55V (56WH)Geçiş Bataryası: 1300mAh / 11.1V (14.4WH)
Docking + In-Vehicle Mounting (Opsiyonel) DC10U (+) (Opsiyonel) VHM20U
SHIMMER x 1
Supply Voltage DC 19V/3.78A
Working temperature -20°C ~ 60°C
External Dimensions (mm) 363.2 x 287.4 x 42.1
IP Protection Class IP65
Certificates MIL-STD 810G
Supported Operating Systems Windows®11 [Pre-installed] | License Not Included.
