IPC4-RL-I22J-C10-5100-8128

Brand: IPC4 by ICC
Categories: Rugged Laptop

A durable tablet PC equipped with the Intel Jasper Lake N5100 processor, offering high performance in harsh industrial and field conditions.

It is a perfect screen for outdoor use with its 12.2" FHD 1920x1200 resolution and 650nits brightness value.

The G+G capacitive touch screen with Gorilla 7H grade glass coating offers high sensitivity operation even with gloves.

It runs multitasking smoothly with 8 GB RAM.

It has 128GB eMMC storage capacity and is expandable.

It offers dual-band (2.4G + 5.8G) wireless connection thanks to Wi-Fi 802.11 (a/b/g/n/ac) technology.

It provides high-quality image and video shooting with its 2.0MP front and 5.0MP rear cameras.

It offers secure login with fingerprint reader.

Extensive connectivity options including USB 3.0, Type-C, HDMI 1.4a and RJ45 LAN (Optional DB9 Serial Port).

Built-in dual speakers (8Ω/0.8W) deliver clear sound output.

It provides long battery life with 6500mAh + 1000mAh battery capacity.

It complies with MIL-STD 810G military standards and can operate in harsh weather and environmental conditions.

Provides location tracking with GPS, Beidou and GLONASS support.

It is resistant to dust and water thanks to its IP65 protection class.

With its modular structure, it can be customized for different business lines.

Optional NFC, 4G LTE and 2D barcode scanner modules can be added.

It can be used worldwide thanks to the 100~240V adapter support.

Increases portability with additional accessories such as in-car mounting kit and shoulder strap.

It is ideal for industrial, logistics, open field and defense industry applications.

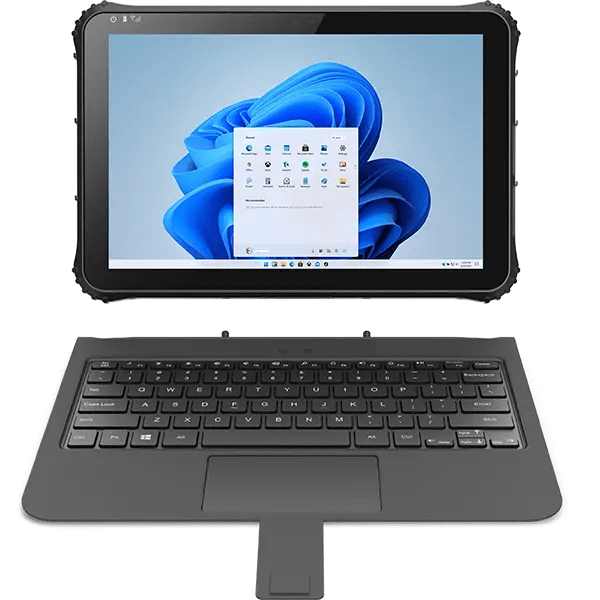

It offers 2-in-1 use with optional detachable keyboard.

Its lightweight and durable design increases portability for field workers.

It is suitable for precise data entry with optional active and passive pen support.


Features


Product Code IPC4-RL-I22J-C10-5100-8128
Screen size 12.2" IPS
Resolution 1920 x 1200
Screen Format 16 | 10
Brightness 650 cd/m²
Touch Type Projective Kapasitif [P-CAP]
GPU Intel® HD Graphics Gen 11 LP
Cooling Without Fan
Processor [CPU] Intel® Celeron® N5100 4 Core 1.10 GHz BM : 3350
Processor [CPU] Family Intel® Celeron®
RAM [System Memory] 8 GB
SSD/HDD/mSATA/M.2 128 GB eMMC
LAN/Ethernet RJ45 x 1 (10/100Mbps) Opsiyonel
USB 3.0 x 1
USB 2.0 x 2
USB Type-C x 1
RS 232 Serial Port x 1
RS 485 Serial Port x 1
Video Output Micro HDMI 1.4a x 1
POGO 12PIN Pogo Pin x1
Audio Output Mic-in x 1 + Line-out x 1 + Built in 8Ω/1W Waterproof Speaker x 2
Wireless 802.11
Bluetooth BT5.0 (BLE)
Front camera 5 MP
Rear Camera 8 MP
4G - LTE Opsiyonel
G-Sensor (+)
2D/QR Code Reader Opsiyonel N3680
NFC Opsiyonel
Battery Ana Batarya: 6500mAhGeçiş Bataryası: 1000mAh
Docking + In-Vehicle Mounting Docking Opsiyonel
SHIMMER x 1
Supply Voltage DC 12V/4A
Working temperature -20°C ~ 60°C
External Dimensions (mm) 319.6 x 216 x 24.3
Weight (kg) 1500g
IP Protection Class IP65
Certificates CE | MIL-STD-810G
Supported Operating Systems Windows®11 [Pre-installed] | License Not Included.
