IPC4-101A-MES
Brand: IPC4 by ICC
Categories: MES Panel PC
This industrial panel PC Based terminal is specially designed for factory MES applications. And it was developed to meet the requirements of the harsh production environment.

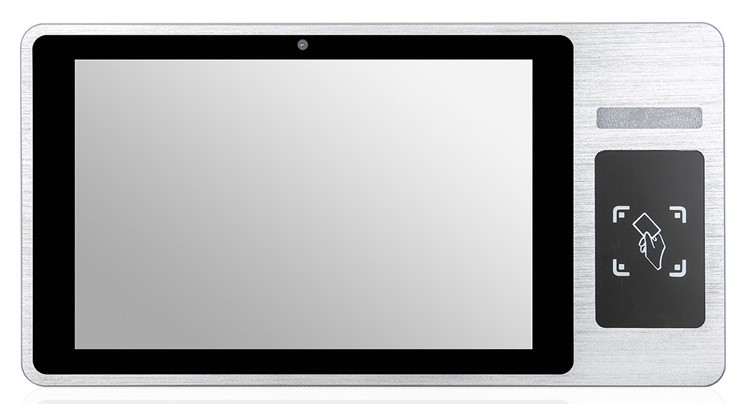

It offers solutions for MES, digitalization and smart factory applications with the 13.56MHz RFID card reader and built-in camera added on the Fanless industrial motherboard that supports specially developed Android operating systems.
Combined with the industrial-grade card reader and ultra-wide-angle camera function module, multiple verification of the consistency of the human ID card is carried out to protect personal and property security.
Scope of application
• Complete SDK development kit support
• Aluminum alloy good heat dissipation and corrosion resistant, IP66 rated dust and waterproof case
***Software not included. User development is required.
• Industry 4.0 projects
• Data collecting
• Industrial automation
• Smart city
• IOT
• Process control
• Smart Factory
• Industry 4.0
Features
| Product Code | IPC4-101A-MES |
| Screen size | 10.1" TFT LCD |
| Resolution | 1280 x 800 |
| Screen Format | 16 | 10 |
| Brightness | 350 cd/m² |
| Contrast | 1000 | 1 |
| Viewing Angle | 178°(H ) / 178°(V) |
| Touch Type | Projected Kapasitif [P-CAP] |
| Backlight Life (Min. Hours) | 50.000 |
| Cooling | Fanless |
| Processor [CPU] | RockChip™ RK3399 + Dual Core Cortex-A72 1.80 GHz + Cortex-A53 Quad Core 1.40 GHz |
| Processor [CPU] Family | RockChip™ RK3399 |
| RAM [System Memory] | 4 GB Upgradable |
| SSD/HDD/eMMC/M.2 | 32 GB eMMC | [Upgradable] |

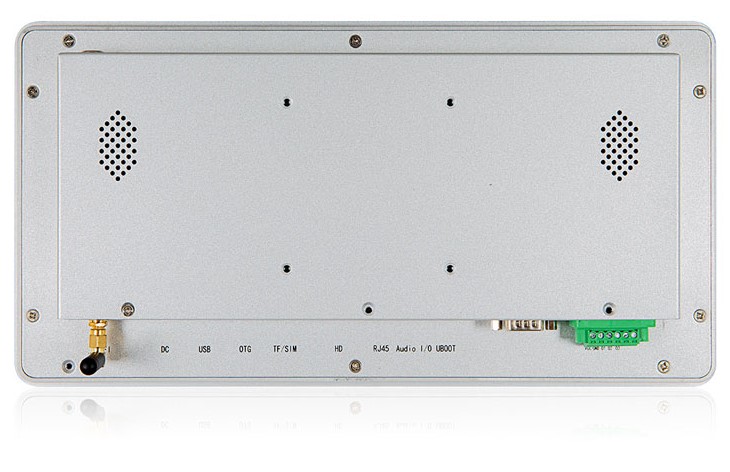

| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 1 |
| RS 232 Serial Port | x 2 |
| RS 485 Serial Port | x 1 |
| Digital I/O | GPIO x 3 |
| Video Output | HDMI x 1 |
| Audio Output | Dahili Hoparlör + Line-in x 1 + Line-Out x 1 |
| Expansion Slot | MicroSD Slot x 1 |
| Wireless | 802.11 b/g/n |
| Bluetooth | BT4.1 |
| Front camera | 100W HD |
| Mounting Type | VESA 75 | VESA100 | Panel Mount | Stand [Mounting Unit Not Included] |
| Supply voltage | DC 12 - 36V (Adapter is included in the package.) |
| Operating temperature | -10°C / 60°C |
| Weight (kg) | 1.5 |
| Body Material | Aluminum |
| IP Protection Class | IP65 Compatible Aluminum Front Frame |
| Certificates | CE | FCC | ROHS |
| Supported Operating Systems | Android 7.x, Android 10.x, Android 11.x |
