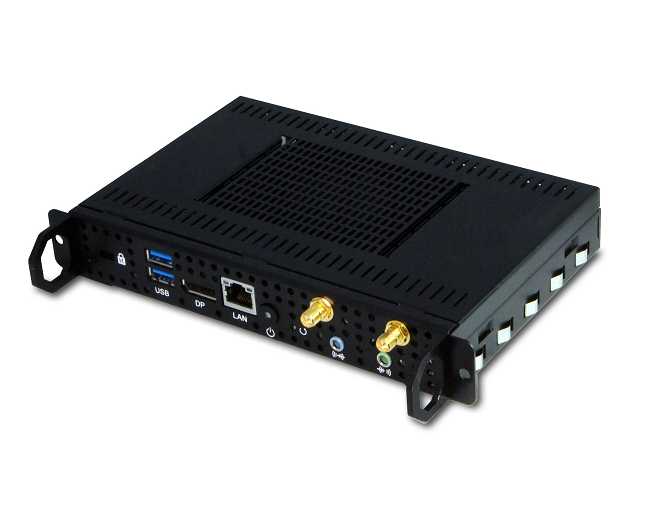

IBASE iOPS-76 is an Open Pluggable Specification (OPS) compliant signage player powered by the new 3rd Generation Intel® Mobile Core™ i7/i5/i3/Celeron® Quad Core/Dual Core processors featuring Mobile Intel® QM77 Express chipset. Open Pluggable Specification (OPS) effectively reduces deployment and field maintenance costs to simplify device installation, maintenance, upgrades, and allows digital signage manufacturers to deploy systems faster with lower costs for development and implementation.
iOPS-76 complies with Intel® Active Management Technology 8.0 for optimal remote control management and supports up to 2 displays with Slot JAE 80-pin connector and Display Port signals for excellent image quality content production. 2 x DDR3 SO-DIMM (Dual Channel)
Product Code | IOPS-76L |
Processor [CPU] | Intel® Celeron® 827E 2 Core 1.40 GHz | BM : 365 |
Processor [CPU] Family | Intel® Celeron® |
RAM [System Memory] | [Max 16 GB] |
SSD/HDD/mSATA/M.2 | 64 GB mSATA |
LAN/Ethernet | GbE x 1 |
USB 3.0 | x 2 |
Video Output | DP x 1 |
Expansion Slot | Full Size Mini PCIe x 1 |
Wireless | 802.11 |
Mounting Type | Open Pluggable Specification |
Supply Voltage | DC 12-19 V |
Working temperature | 0°C ~ 45°C |
External Dimensions (mm) | 200 x 119 x 30 |
Body Material | Aluminum |
Certificates | CE | FCC |
Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
