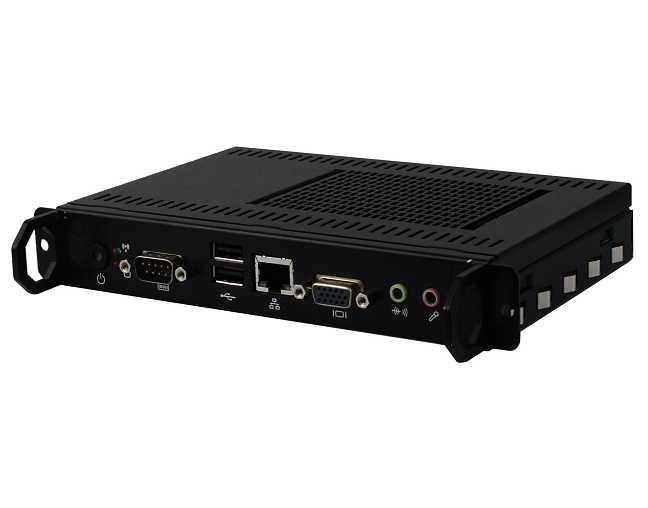

IOPS-18
Brand: IBASE
Categories: OPS System
AMD® Embedded G Series APU (Dual Core)
• Integrated 80-Core DirectX 11 GPU in Processor
• 1x DDR3-1333 SO-DIMM, Max. 8GB
• 1x Mini-PCIe (Full Size) for Wi-Fi, Bluetooth or 4G LTE options
• Supported I/O: VGA, LAN Port, USB 2.0, COM Port, internal Mini-PCIe, OPS connector
• HDD LED activity indicator
Features
| Product Code | IOPS-18 |
| Processor [CPU] | AMD® T56N APU 2 Core 1.70 GHz |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 64 GB | RAID |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 1 + VGA x 1 + DP x 1 |
| Expansion Slot | Mini-PCIe [x1] x 1 |
| Mounting Type | Open Pluggable Specification |
| Supply Voltage | DC 12-19 V |
| Operating temperature | 0°C ~ 40°C |
| External Dimensions (mm) | 200 x 119 x 30 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
