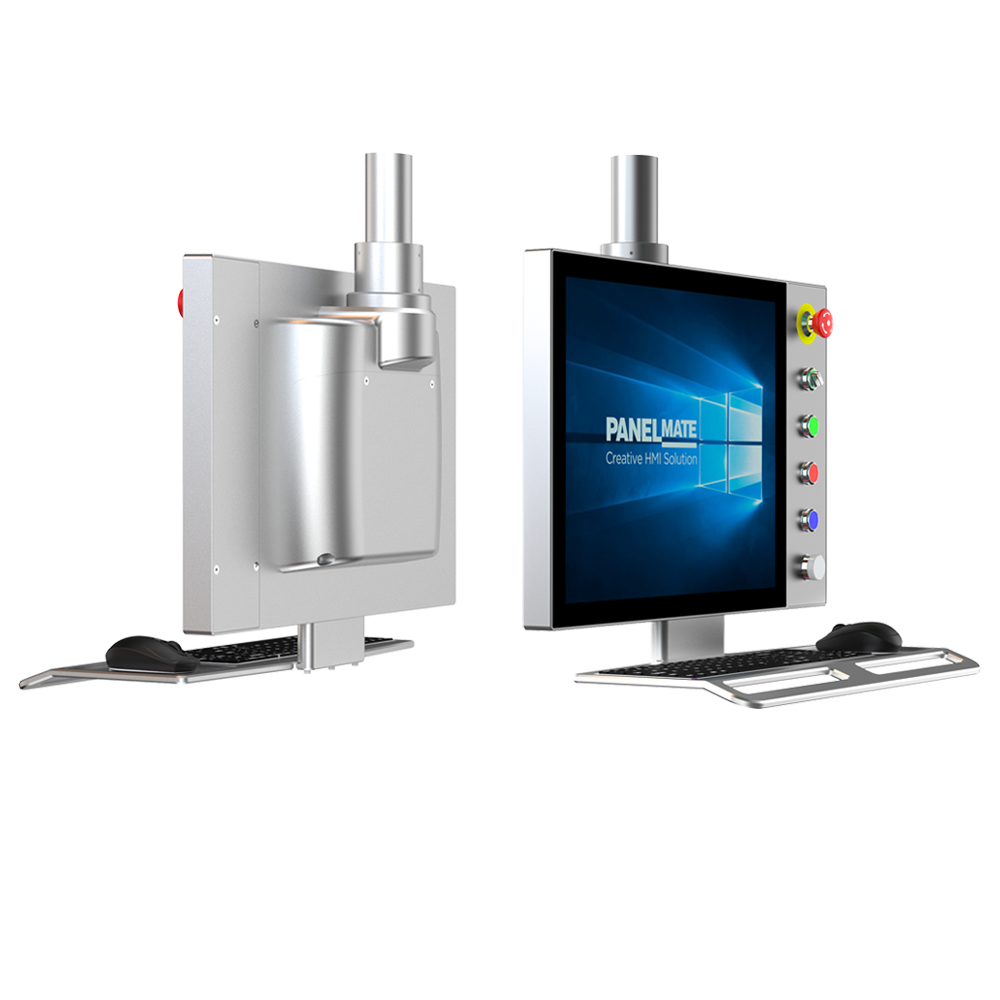

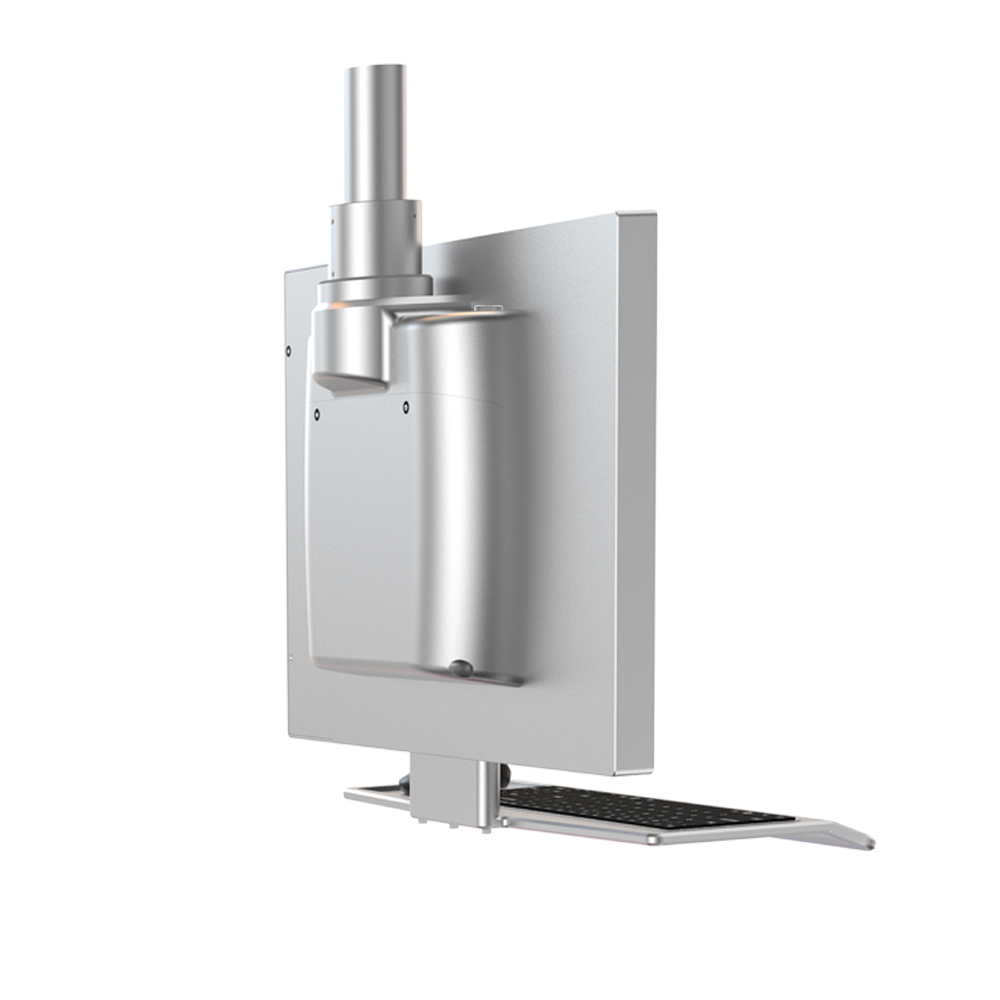

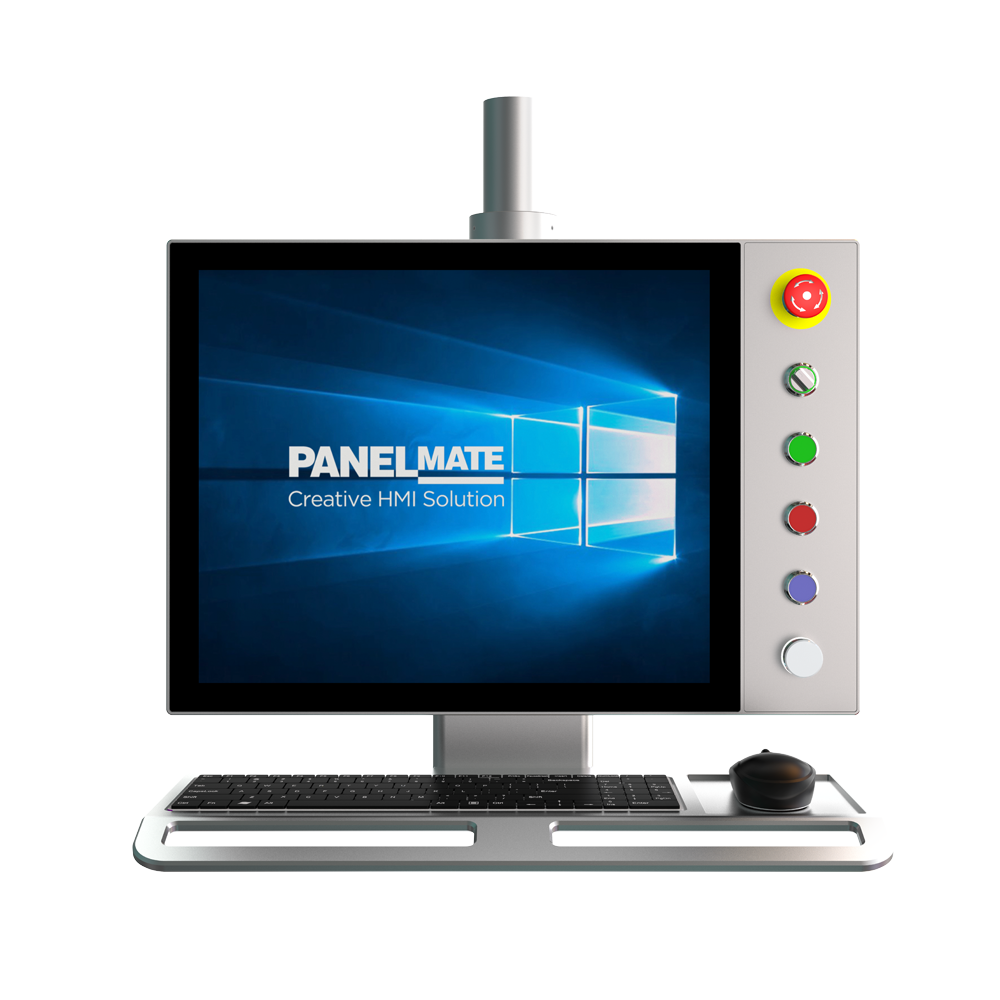

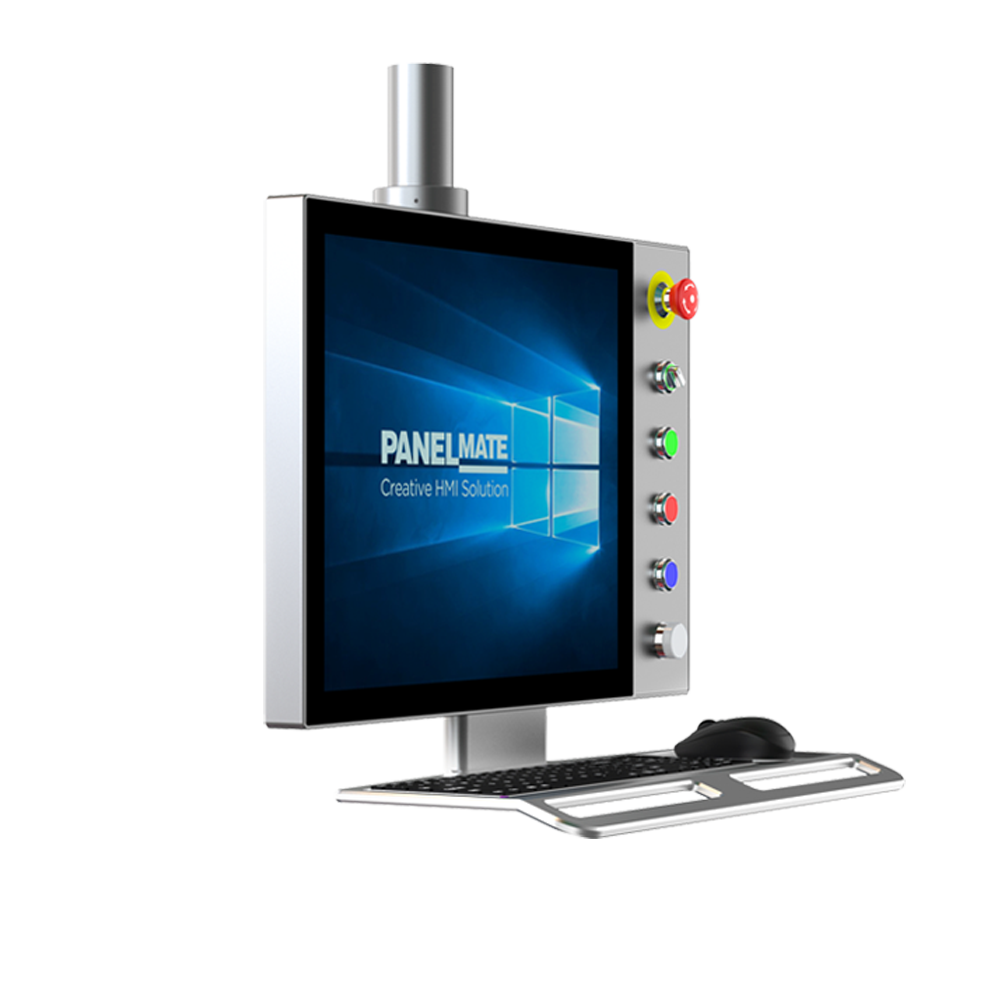

PANELMATE's hanging arm industrial monitor optimizes your workspace with its unique design. Its aluminum-magnesium alloy body combines durability and elegance.
Thanks to the IP65 protection level, PANELMATE provides full protection against dust and water. It offers superior performance even in harsh industrial conditions, is long-lasting and reliable.
PANELMATE offers a wide range of screen sizes ranging from 15" to 21.5". It provides excellent images in all conditions with a 178/178 degree viewing angle that provides clear viewing from any angle.
Providing clear viewing even under sunlight, PANELMATE offers high brightness performance with a brightness value of up to 1000 nits. Ideal for outdoor uses.
With touch screen options, PANELMATE offers a user-friendly experience. It provides flexibility with single point resistive touch screen or multiple capacitive touch screen options.

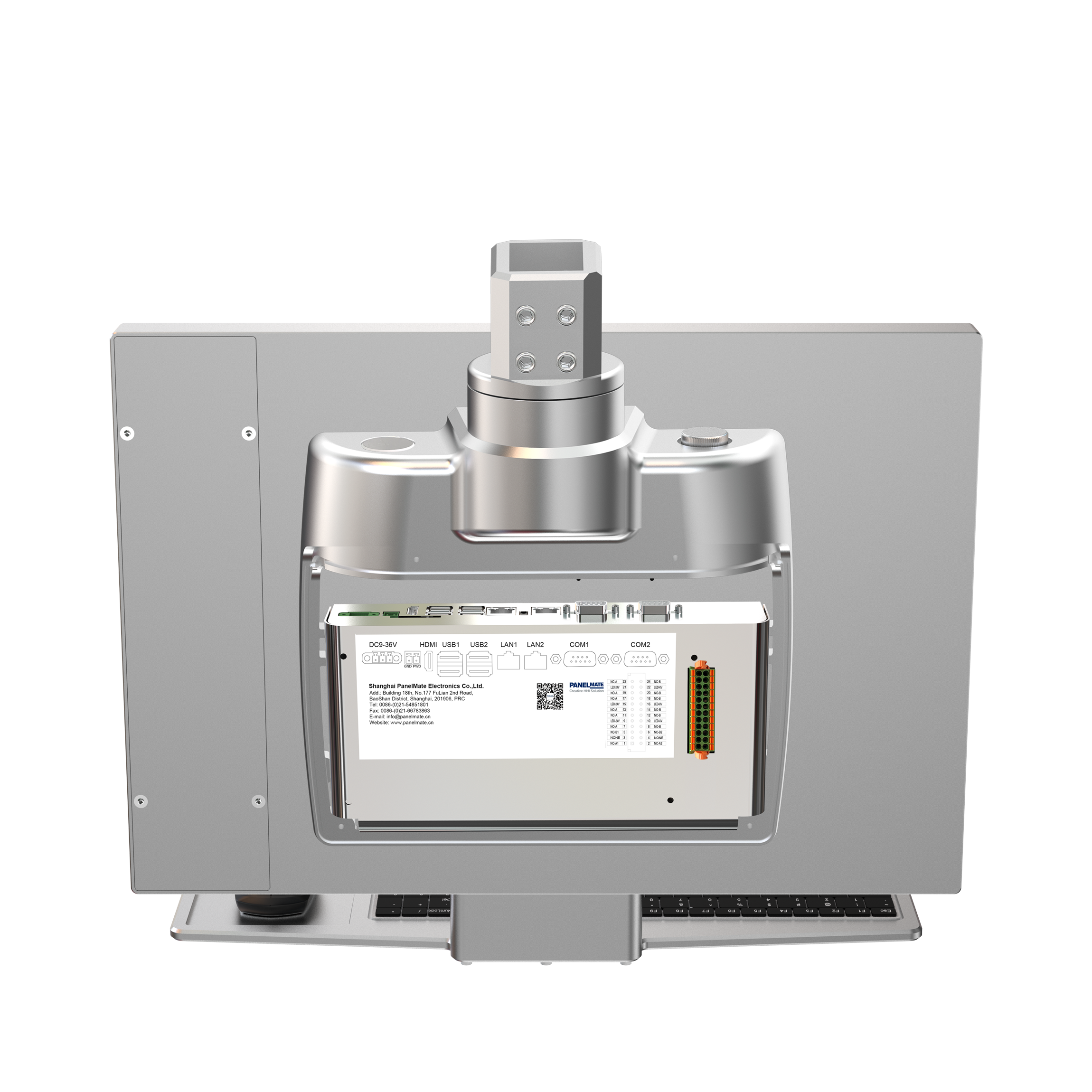

PANELMATE offers wide connection options with DVI, HDMI, VGA video interfaces and 2xUSB ports. In this way, it can be easily integrated with various devices and provides versatile use.
Thanks to its wide voltage range of DC 9~36V, PANELMATE is compatible with different power supplies. Flexible energy options expand usage areas and provide ease of installation.
With support for long distance USB signal output, PANELMATE can transmit USB signals up to 50 meters. This feature ensures seamless connectivity and efficiency even in large areas.
PANELMATE, which can transmit video and USB signals up to 100 meters with a CAT6 network cable, offers high performance and flexibility. This feature ensures high efficiency even in large areas.
Product Code | IDD59190-5K |
Screen size | 19" TFT LCD |
Resolution | 1280 x 1024 |
Screen Format | 5 | 4 |
Brightness | 250 cd/㎡ |
Contrast | 1000 | 1 |
Viewing Angle | 178°(H) / 178°(V) |
Touch Type | Projected Capasitif [P-CAP] |
Video Input | HDMI x 1 | DVI x 1 | VGA x 1 |
USB 2.0 | x 2 [Touch Control] |
Buttons | 1 x USB + 1 x Reset + 1 x Stop Start + 1 x Knob + 1 x Emergency Stop Button |
Power consumption | 14W |
Mounting Type | 4460 | 6085 | 48 ARM [Hanging Arm is Priced Separately.] |
Supply Voltage | DC 12-36 V |
Operating temperature | 0°C ~ 50°C |
External Dimensions (mm) | 512.7 x 351.6 x 130 |
Chassie Material | Aluminum | Body Color: Metallic Gray |
IP Protection Class | Front IP65 |
Certificates | CE | FCC | ROHS | ISO |
