IDD51240-5K

Brand: PANELMATE
Categories: Industrial Monitor

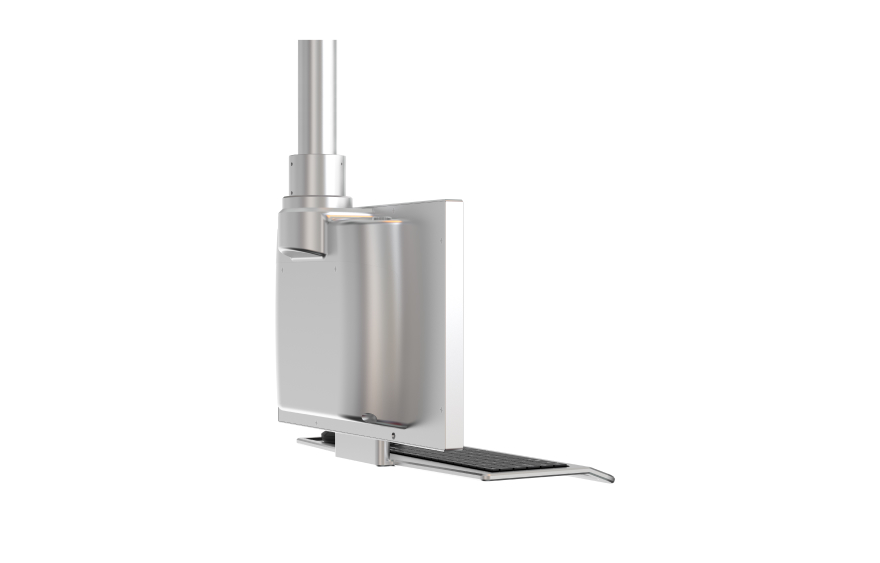

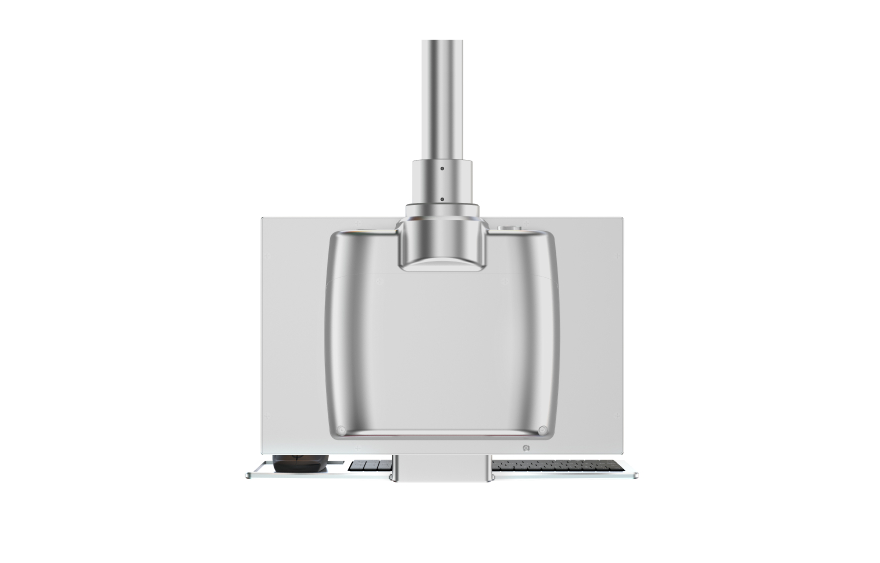

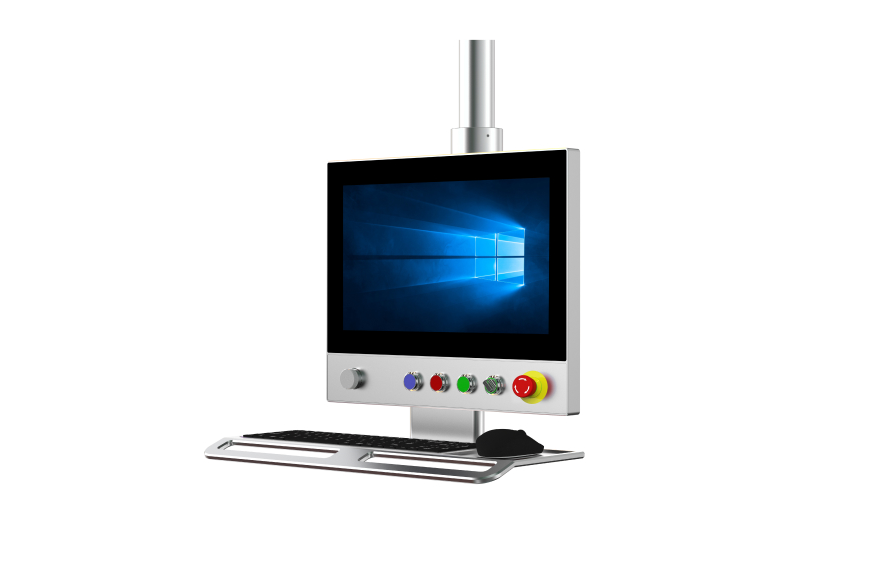

PANELMATE's hanging arm industrial monitor optimizes your workspace with its unique design. Its aluminum-magnesium alloy body combines durability and elegance.

Thanks to the IP65 protection level, PANELMATE provides full protection against dust and water. It offers superior performance even in harsh industrial conditions, is long-lasting and reliable.

PANELMATE offers a wide range of screen sizes ranging from 15" to 21.5". It provides excellent images in all conditions with a 178/178 degree viewing angle that provides clear viewing from any angle.

Providing clear viewing even under sunlight, PANELMATE offers high brightness performance with a brightness value of up to 1000 nits. Ideal for outdoor uses.

With touch screen options, PANELMATE offers a user-friendly experience. It provides flexibility with single point resistive touch screen or multiple capacitive touch screen options.

PANELMATE offers wide connection options with DVI, HDMI, VGA video interfaces and 2xUSB ports. In this way, it can be easily integrated with various devices and provides versatile use.

Thanks to its wide voltage range of DC 9~36V, PANELMATE is compatible with different power supplies. Flexible energy options expand usage areas and provide ease of installation.

With support for long distance USB signal output, PANELMATE can transmit USB signals up to 50 meters. This feature ensures seamless connectivity and efficiency even in large areas.

PANELMATE, which can transmit video and USB signals up to 100 meters with a CAT6 network cable, offers high performance and flexibility. This feature ensures high efficiency even in large areas.


Features


Product Code IDD51240-5K
Screen size 23.8" TFT LCD
Resolution 1920 x 1080
Screen Format 16 | 9
Brightness 250 cd/㎡
Contrast 3000 | 1
Viewing Angle 178°(H) / 178°(V)
Touch Type Resistive
Video Input HDMI x 1 | DVI x 1 | VGA x 1
USB 2.0 x 2 [Touch Control]
Buttons 1 x USB + 1 x Reset + 1 x Stop Start + 1 x Knob + 1 x Emergency Stop Button
Power consumption 22W
Mounting Type 4460 | 6085 | 48 ARM [Hanging Arm is Priced Separately.]
Supply Voltage DC 12-36 V
Operating temperature 0°C ~ 50°C
External Dimensions (mm) 574.4 x 427.5 x 130
Chassie Material Aluminum | Body Color: Metallic Gray
IP Protection Class Front IP65
Certificates CE | FCC | ROHS | ISO
