IB915F-3955(MOQ)
Brand: IBASE
Categories:

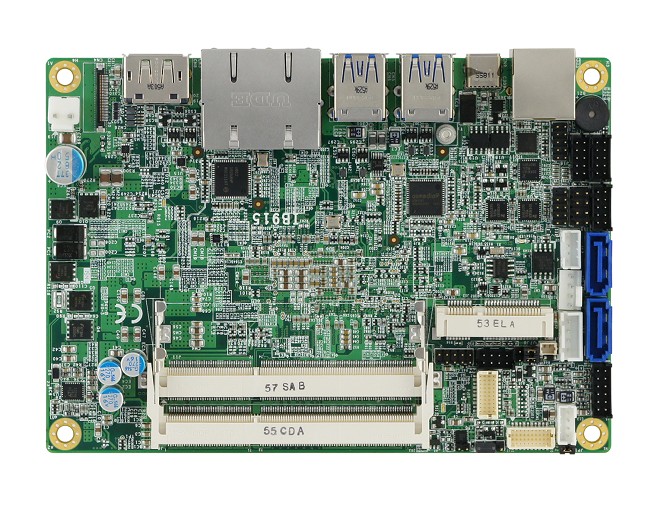

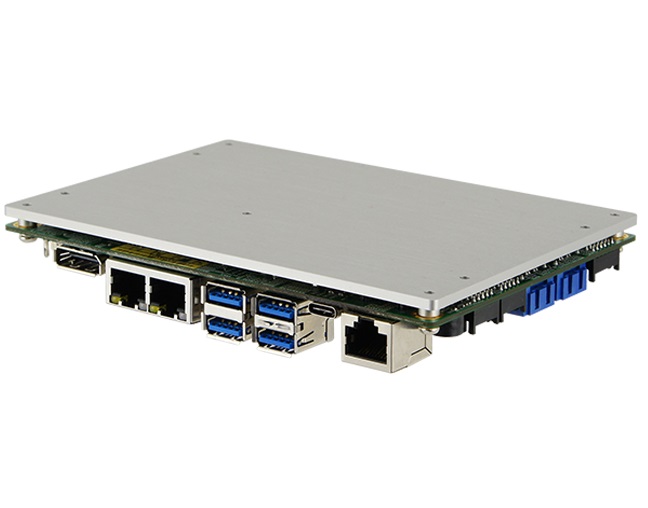

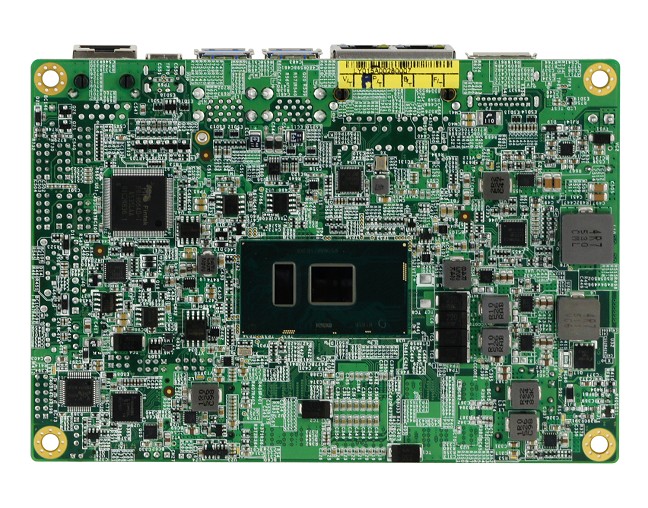

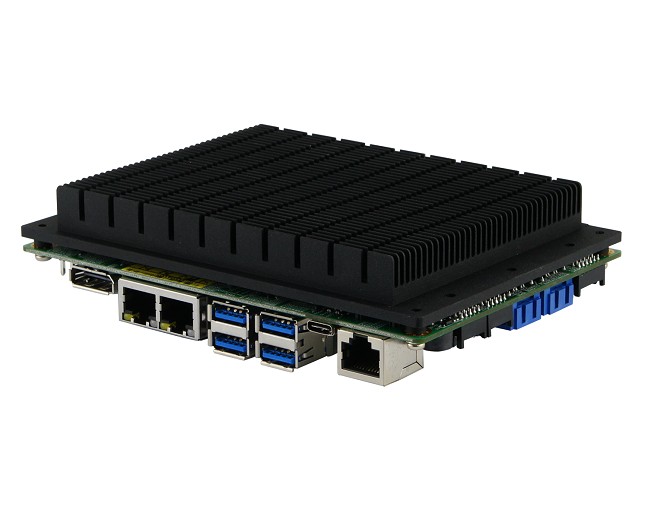

The IB915 3.5-inch disk size supports 6th Generation Intel® Core™ U-series processors, including Intel® Core™ i7-6600U running at 2.6GHz, Intel® Core™ i5 6300U processor (2.4GHz), and Intel® Core™ i3 -6100U processor (2.3GHz). The IB915 single-board computer is an excellent solution for applications in the factory automation, medical, kiosk, and networking markets, and delivers excellent performance and energy efficiency with better 3D graphics than previous generations.
The new IB915 delivers excellent computing performance with new integrated Intel HD graphics designed to deliver enhanced video and stunning 3D graphics. Triple display interfaces provided are for eDP, DP and 24-bit dual channel LVDS. The IB915 also includes a remote control
Measuring 102 mm x 147 mm (4" x 5.8"), a maximum system RAM (memory) size of 16 GB is supported via two DDR3L-1600 SO-DIMM sockets. The IB915 includes two Gigabit high-speed LAN functions, Watchdog timer, Digital I/O, mSATA and IBASE's iSMART green technology
Features
| Product Code | IB915F-3955(MOQ) |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 146 x 101.7 |
| Processor [CPU] | Intel® Celeron® 3955U 2 Core 2.00 GHz | BM : 1580 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| USB 3.1 | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DIx 4 / DOx 4 |
| Video Output | DP x 1 + eDP x 1 + LVDS x 1 |
| LVDS | 24 bit 1CH x 1 |
| Expansion Slot | Mini-PCIe [x1] x 1 |
| Supply Voltage | DC 9-19 V |
| Certificates | CE |
