IB811F-I30
Brand: IBASE
Categories: 3.5'' SubCompact

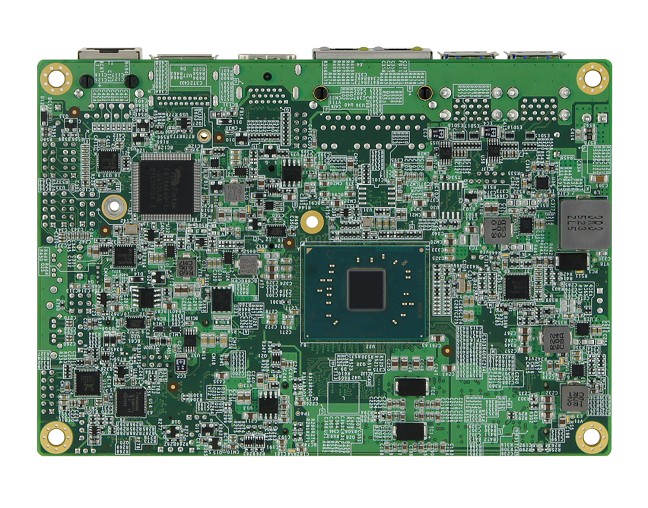

The IB811 3.5 inch Disk Size SBC features 9V~36V wide voltage input, making it suitable for rugged industrial and in-vehicle applications with variable voltage input requirements. SBC supports four types of legacy Apollo Lake processors, including Intel® Atom™ x7-E3950, Intel® Pentium N4200, and Intel® Celeron® N3350. The card has two RAM (memory) sockets that support up to 8GB DDR3L-1866/1600 SO-DIMM modules.
Besides 9V ~ 36V wide voltage input, IB811 also supports wide range operating temperature (-40°C to 85°C), offering significant improvements in processing and graphics performance over previous Intel architecture. SoC integrated GeForce that allows hardware-based 4K playback
IB811 is the perfect platform for Embedded applications that require a small form factor to fit into space-constrained environments. Features flexible I/O and expansion connectivity, including a Full-Size Mini-PCIe slot and an M.2 (B-key) connector
Features
| Product Code | IB811F-I30 |
| Form Factor | 3.5" SubCompact Board |
| Card Size (mm) | 146 x 101.7 |
| Processor [CPU] | Intel® Atom® x5-E3930 2 Core 1.30 GHz | BM : 1100 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | SATA3 x 2 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DI x 4 / DO x 4 |
| Video Output | HDMI x 1 + DP x 1 |
| LVDS | 24 bit 1CH x 1 |
| Expansion Slot | Mini-PCIe [x1] x 1 | M.2 (B Key) x 1 |
| Supply Voltage | DC 9-36 V |
| Certificates | CE |
