GENESYS-WHU6-A11-0003
Brand: AAEON [An ASUS Co.]
Categories: 3.5" SUBCmpact Board System

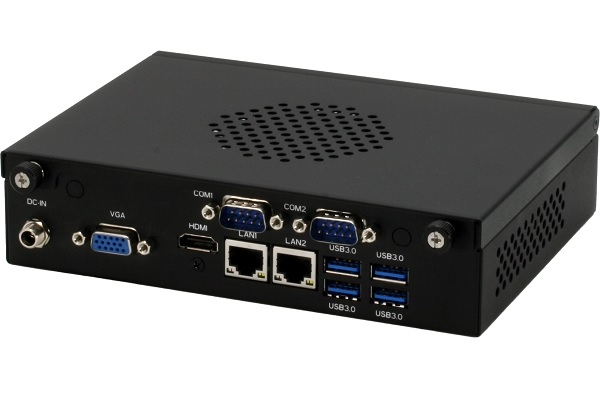

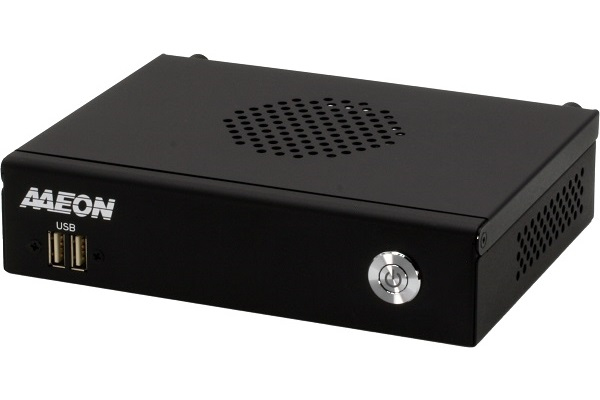

3.5" SUBCmpact Motherboard System with 8th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Leveraging hyper-threading technology integrated into the 8th Generation Intel® Core™ i7/i5/i3/Celeron® on Chip, GENESYS-WHU6 delivers outstanding processing capabilities along with enhanced system memory capacity that is both faster and larger.
Featuring four USB 3.2 Gen2 Ports as well as two COM Ports supporting RS-232/422/485 functionality and AI acceleration module compatibility, GENESYS-WHU6 is designed to facilitate Smart Manufacturing, Safety and Security solutions at the edge.
Features
Intel® Core™ i7/i5/i3/Celeron Processor SoC
Non-ECC DDR4 SODIMM Slot x 2, up to 64GB
VGA x 1, HDMI 2.00 x 1
GbE x 2, SATA III x 1
USB 3.2 Gen2 x 4 (up to Gen 2), RS-232/422/485 x 2
Full Size mSATA/mPCIe Slot x 1 (with Nano-SIM)
M.2 2280 B Key x 1, M.2 2230 E Key x 1
Wide DC Input 9-36V (Optional: 12V Only)
Features
| Product Code | GENESYS-WHU6-A11-0003 |
| Form Factor | 3.5" SUBCmpact |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Core™ i7-8665UE 4 Core 1.70 GHz BM : 5260 |
| Processor [CPU] Family | Intel® Core™ i7-8665UE |
| RAM [System Memory] | DDR4 2400 MHz SODIMM x 2 | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 2 |
| Video Output | HDMI x 1 + VGA x 1 |
| Expansion Slot | M.2 B Key x 1 | M.2 E Key x 1 |
| 4G - LTE | Nano SIM (Opsiyonel) |
| Supply voltage | DC 9V - 36V |
| Operating temperature | 0°C / 50°C |
| External Dimensions (mm) | 178 x 134.1 x 43 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows® 10 IoT | Pro | Linux Ubuntu 21.04 | License Not Included in the Price. |
