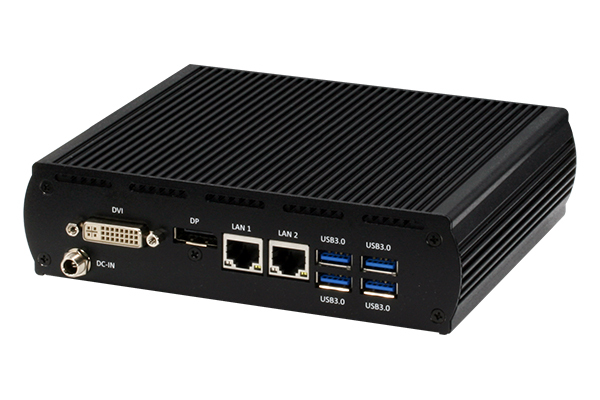

GENESYS-KBU6-A10-0002
Brand: AAEON [An ASUS Co.]
Categories: Industrial Box PC
3.5" sub-compact Motherboard System with 7th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Features
7th Generation Intel® Core™ i7/i5/i3/Celeron® Processors
DDR4 1866/2133, SODIMMx1
DVI x 1, 1 x DPA
SATA 6.0Gb/s and 1 x mSATA
USB 2.0 x 2, 4 x USB 3.2 Gen1
COM x 2 (1 x RS-232, RS-232/422/485 x 1)
Mini Card Slot x 2, TPM, SIM
Supply Voltage 9~36VDC, +12VDC optional
Features
| Product Code | GENESYS-KBU6-A10-0002 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-7300U 2 Core 2.60 GHz BM : 3700 |
| Processor [CPU] Family | Intel® Core™ i5 7. Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 1 |
| Video Output | DVI x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | SIM (Opsiyonel) |
| Supply voltage | DC 9V - 36V |
| Operating temperature | 0°C / 50°C |
| External Dimensions (mm) | 170 x 137 x 44.5 |
| Body Material | Aluminum |
| Certificates | CE |
