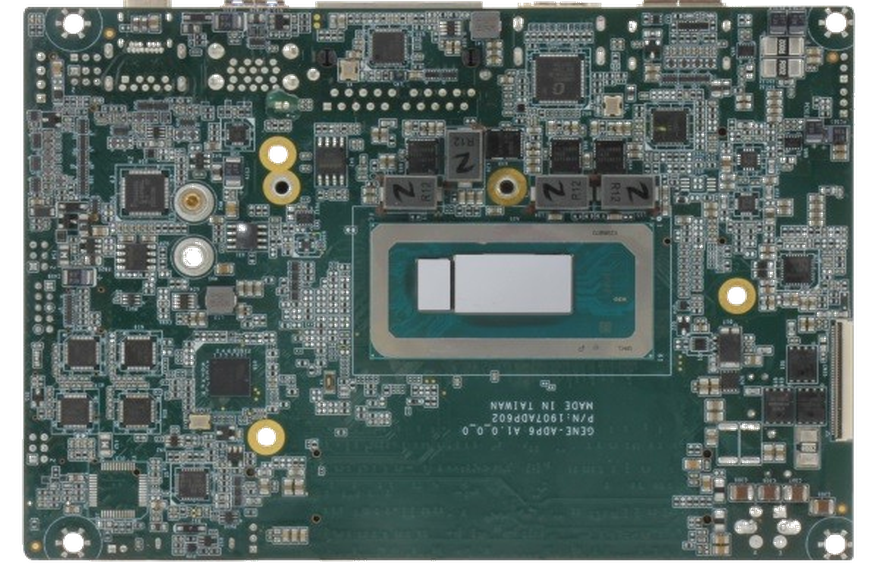

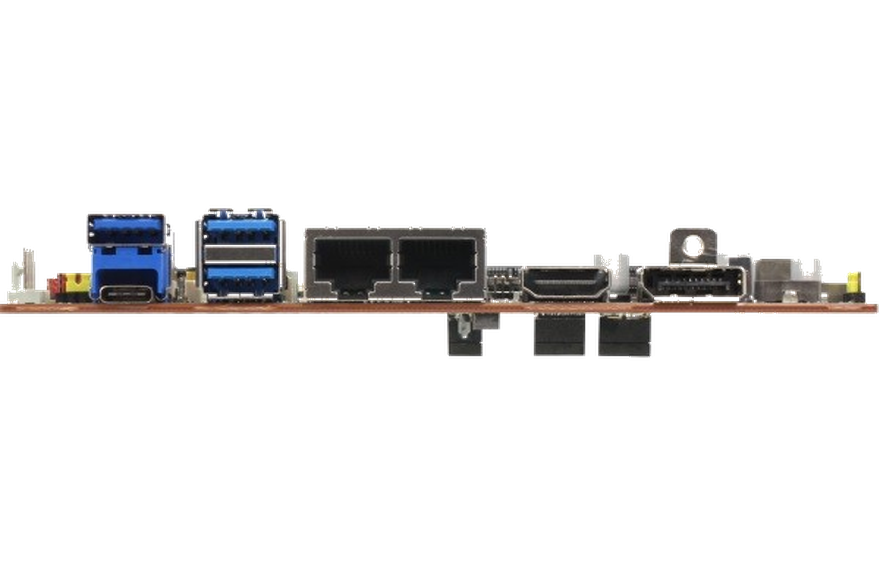

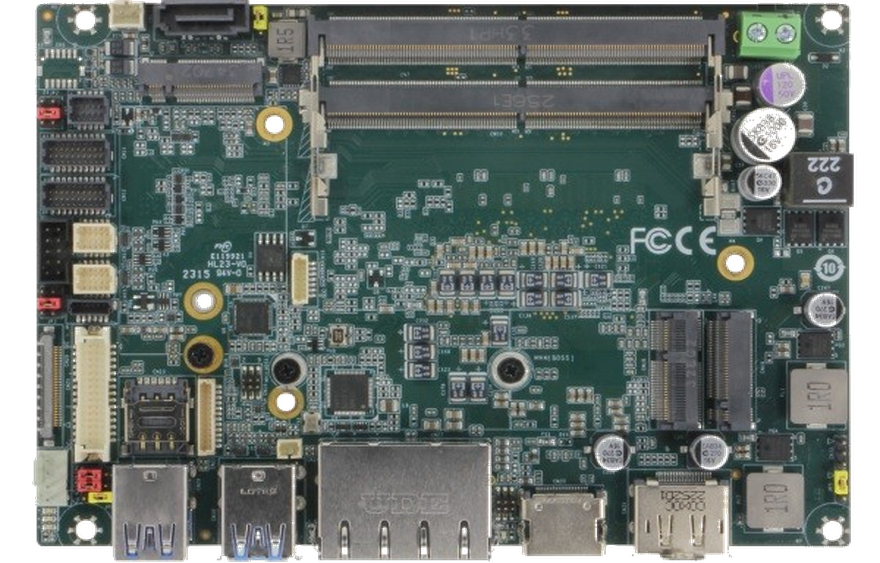

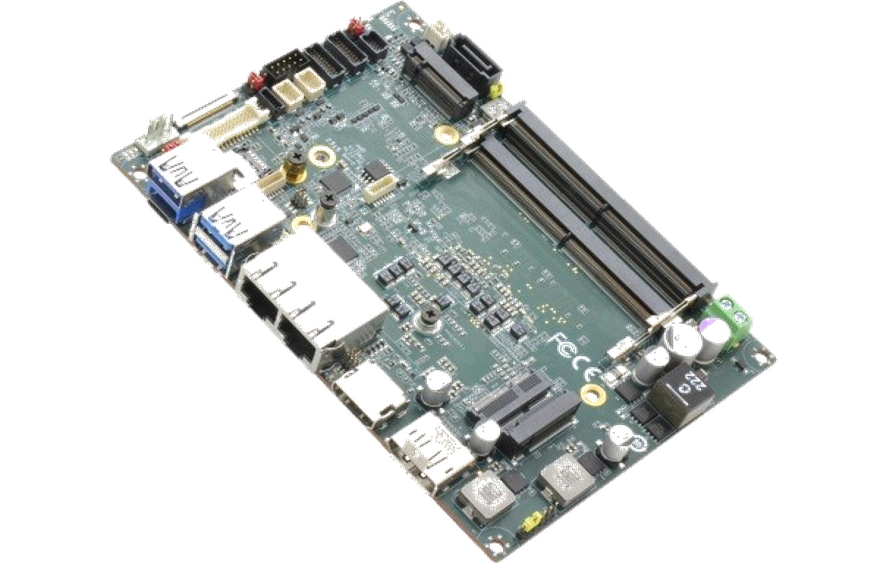

GENE-RAP6-A10-0003

Brand: AAEON [An ASUS Co.]
Categories: 3.5" SUBCmpact

3.5" SUBCmpact Motherboard with 13th Gen Intel® Core™ i7/i5/i3 Processor SoC

GENE-RAP6 is more than a single-board computer; It represents a new era in embedded computing.

Features

13th Generation Intel® Core™ i7/i5/i3/U Series Processor SoC

DDR5 4800, Dual Channel SODIMM x 2, up to 64 GB

LVDS x 1, eDP x1, DP x 1, HDMI x 1

2.5 GbE x 1, GbE x 1, SATA 6 Gb/s x 1, GPIO x 8 bit

USB 3.2 Gen2 x 3, USB 2.0 x 4, USB Type C x 1, RS-232/422/485 x 4

M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3052/3042/2242 B-Key x 1

Wide DC Input 9-36V


Features


Product Code GENE-RAP6-A10-0003
Form Factor 3.5" SUBCmpact
Card Size (mm) 101,6 x 146
Cooling Fanless
Processor [CPU] Intel® Core™ i5-1335UE
Processor [CPU] Family Intel® Core™ i5 13. Gen
RAM [System Memory] DDR5 4800 MHz | [Max 64 GB]
SSD/HDD/mSATA/M.2 SATA x 1
LAN/Ethernet GbE x 1 | 2.5 GbE x 1
USB 3.2 x 3
USB 2.0 x 4
USB Type-C x 1
COM x 4
Digital I/O GPIO x 8
Video Output HDMI x 1 + DP x 1 + eDP x 1 + LVDS x 1
LVDS 18/24 bit 2CH x 1
Audio Output Line Out x 1
Expansion Slot M.2 M Key x 1 | M.2 B Key x 1 | M.2 E Key x 1
SMBUS x 1
4G - LTE Nano SIM (Opsiyonel)
Supply voltage DC 12V
Operating temperature 0°C / 60°C
Certificates CE
Supported Operating Systems Windows® 10 IoT | Pro | License Not Included in the Price.
