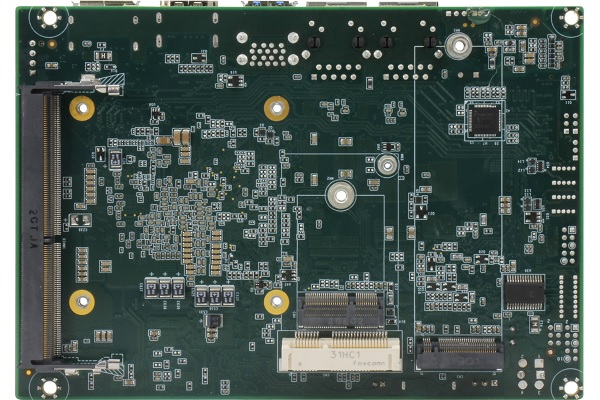

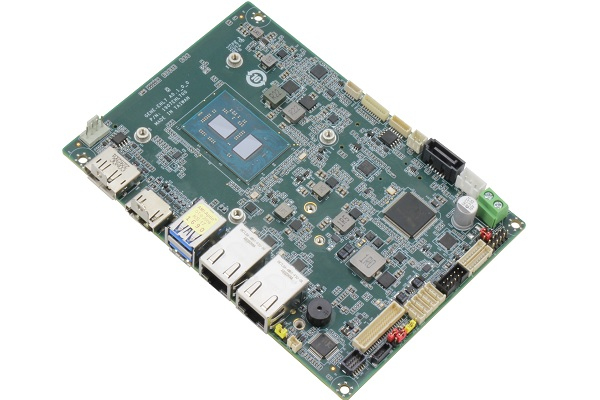

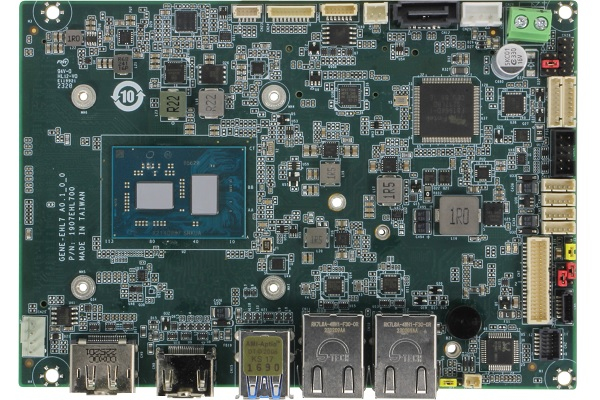

GENE-EHL7-A10-0003

Brand: AAEON [An ASUS Co.]
Categories: 3.5” SUBCmpact Boards

SUBCmpact Motherboard with Intel® Atom™ x6000E Series and Intel® Pentium® and Celeron® N and J Series Processors

With its efficient processing power and diverse range of interfaces, GENE-EHL7 sets a new standard in efficiency and affordability and becomes an essential foundation for a variety of vertical market applications.

GENE-EHL7 has a small footprint measuring just 146 mm x 101.7 mm and weighs less than 1 lb.; This makes it an ideal candidate for discreet installation in application scenarios where space is most limited.

Features

DDR4 3200MHz SODIMM x 1, up to 32GB

HDMI 1.4 x 1, DP 1.4 x 1, LVDS/eDP x 1

GbE x 2, SATA 6.0Gb/s x 1, GPIO x 8-bit

USB 3.2 Gen2 x 2, USB 2.0 x 4, RS-232/422/485 x 1, RS-232 x 1

Mini-PCIe Card x 1, M.2 2230 E-Key x 1, M.2 2280 M-Key x 1


Features


Product Code GENE-EHL7-A10-0003
Form Factor 3.5" SUBCmpact
Card Size (mm) 101,6 x 146
Processor [CPU] Intel® Atom™ x6413E 4 Core 1.50 GHz BM : 4230
Processor [CPU] Family Intel® Atom™
RAM [System Memory] DDR4 3200 MHz SODIMM x 1 | [Max 32 GB]
SSD/HDD/mSATA/M.2 SATA x 1
LAN/Ethernet GbE x 2
USB 3.2 x 2
USB 2.0 x 4
RS 232/422/485 Serial Port x 1
Digital I/O DIO x 16
Video Output HDMI x 1 + DP x 2LVDS x 1
LVDS 18/24 bit 2CH x 1
Expansion Slot M.2 M Key x 1 | M.2 E Key x 1 | Full Size Mini-PCIe x 1
SMBUS x 1
Supply voltage DC 12V
Operating temperature 0°C / 60°C
Certificates CE
