GENE-5315-A13-01
Brand: AAEON [An ASUS Co.]
Categories: 3.5" SUBCmpact

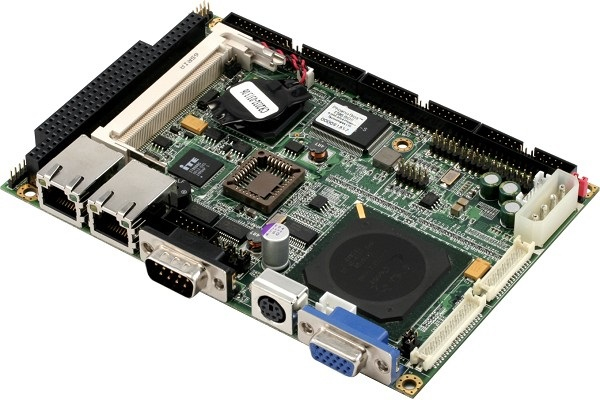

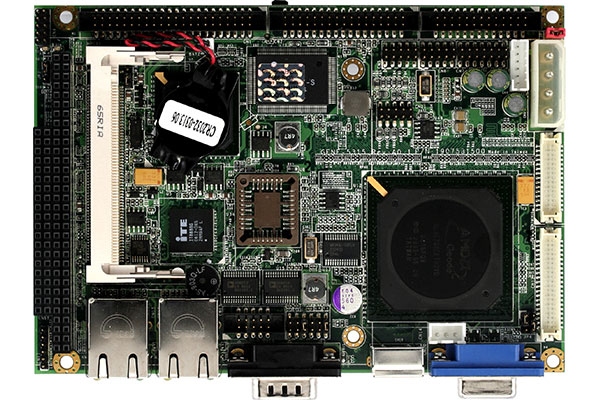

3.5" SUBCmpact Card with AMD® Geode™ LX Series Processor
GENE-5315 Rev. A SUBCmpact card balances performance and cost in the onboard market.
Additionally, it features support for the Second Generation Intel Xeon Scalable Processor with Intel Deep Learning Boost, allowing the FWS-8600 to meet the high data needs of AI edge and cloud networks, including AIOT.
Rev. of GENE-5315 A offers the option to include an onboard AMD® Geode™. The system's memory supports SODIMM DDR 333/400 max. 1 GB capacity. It features Realtek RTL8139DL for dual 10/100Base-TX Ethernet connectivity.
This model uses Type III Mini-PCI socket and PC/104 socket for Expansion.
Also GENE-5315 Rev. Four USB 2.0, IDE, RS-232, RS-232/422/485 and parallel Ports are configured on A.
Features
onboard AMD® Geode™ LX800 Processor
AMD® Geode™ LX+CS5537
DDR 333 MHz SODIMM, up to 1 GB or DDR 400 MHz SODIMM, up to 512 MB
10/100Base-TX Ethernet x 2, RJ-45 x 2
Up to 24 bit Single Channel LVDS/ TTL LCD and CRT
AC97 Codec 2CH Audio
EIDE x 1, Floppy Drive x 1, CompactFlash™ x 1
COM x 2, Parallel x 1, USB 2.0 x 4, 8-bit Digital I/O
Mini-PCI and PC/104 Expansions
(+)
Features
| Product Code | GENE-5315-A13-01 |
| Form Factor | 3.5" SUBCmpact |
| Card Size (mm) | 101,6 x 146 |
| Cooling | Fanless |
| Processor [CPU] | AMD® GEODE™ LX800 2 Core 0.50 GHz BM : 252 |
| Processor [CPU] Family | AMD® |
| RAM [System Memory] | DDR3 SODIMM x 1 |
| SSD/HDD/mSATA/M.2 | EIDE x 1 | CFast x 1 |
| LAN/Ethernet | FE x 2 |
| USB 2.0 | x 4 |
| RS 232 Serial Port | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Digital I/O | DIO x 8 |
| Video Output | LVDS x 1 + CRT x 1 |
| LVDS | 18 bit 1CH x 1 |
| Expansion Slot | Mini-PCI x 1 | PC/104 x 2 |
| Operating temperature | 0°C / 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows® XP 32-bit | License Not Included in the Price. |
