Featuring an advanced hardware platform, FWS-7820 is widely used to defend cyber threats such as Unified Threat Management (UTM), Virtual Private Network (VPN), Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Firewall, Load balancing. , Web Content Filtering to name a few. Therefore, these network security devices are very suitable for cloud computing and data centers.

State-of-the-art FWS-7820 single rack unit, Intel® C236 chipset, 64 GB DDR4 RAM (memory), supports a variety of I/O peripherals and up to 5 N module slots.

5 N module flexible Expansion and high Port density are two important features for AAEON FWS-7820. Supports 1 GB, 10 GB and 40 GB LAN, up to 40 Ports when compatible modules are installed, fiber or copper connection type is Optional

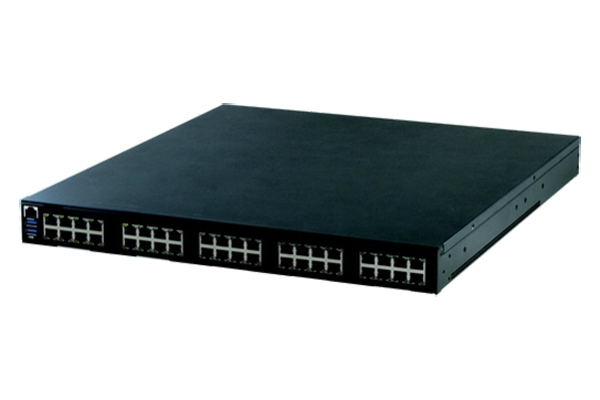

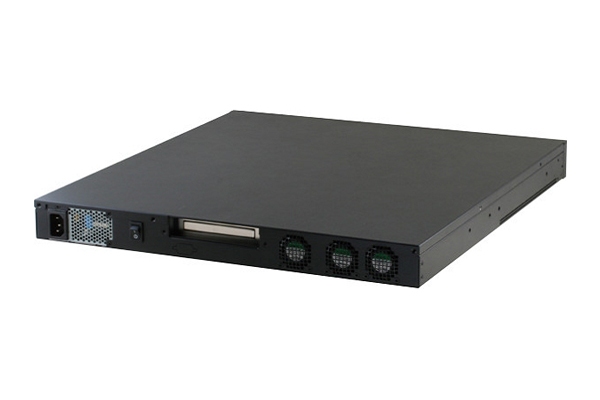

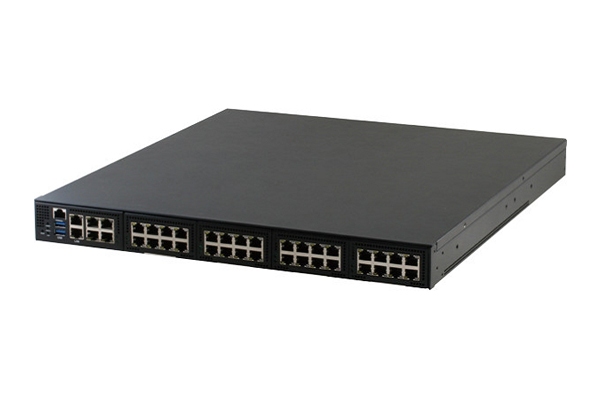

• 1U Rackmount Network Device

• 6th Generation Intel® LGA1151 Core™ / Xeon Processor

• 288-pin DDR4 1600/1866/2133 MHz ECC/U-DIMM x 4, up to 64 GB

• 10/100/1000Base-TX Ethernet Port up to x 38 (depending on NIM)

• 2 to 6 GB SATA Ports (Internal 3.5" SATA HDD x 1 or 2.5" SATA HDD x 2) * Allowed if 2nd SATA HDD uses mSATA/CF/CFast Disabled

• CF socket x 1 (can be replaced with CFast mSATA™ socket or slot)

• Keypad x 1 is LCM (3-Number Slot SKU)

• Console x 1, 2 x USB 3.0, RJ-45

• 250W AC Type Power Input Requirements

• 1 x VGA Header (Optional VGA Cable)
