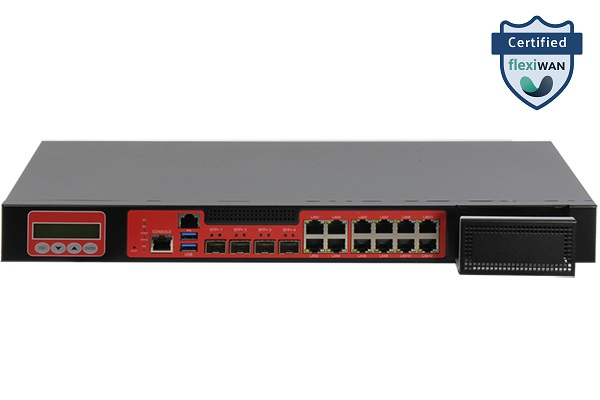

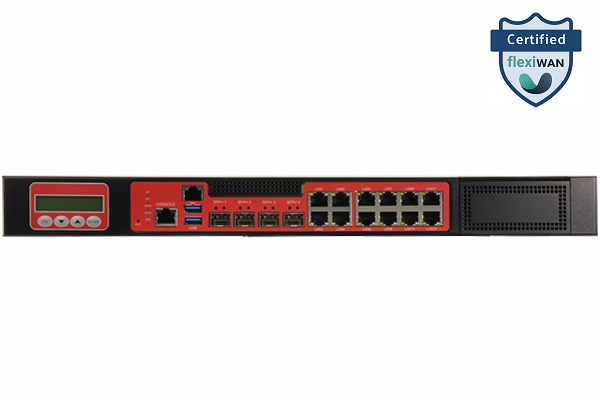

1U Rackmount Network Device with Intel® Xeon® D-1700 Processor

The FWS-7541 is the newest and most advanced member of AAEON's line of Rackmount Networking Devices.

Equipped with Intel® Xeon® D-1700 Processors (formerly known as Ice Lake-D), this solution delivers performance similar to Intel

FWS-7541 is designed with a comprehensive range of functionalities to prove itself as the ultimate solution for network management, balancing low power consumption with superior performance.

The system features scalability in a small footprint as well as compatibility with wireless modules for a variety of network connectivity options. This ensures reliable uCPE and SD-WAN solutions are delivered with consistent stability.

FWS-7541 has now obtained the privilege of flexiWAN certification.

Powered by Intel®

FWS-7541 also accelerates the processing, transmission, encryption and decryption of data with Intel® QAT technology.

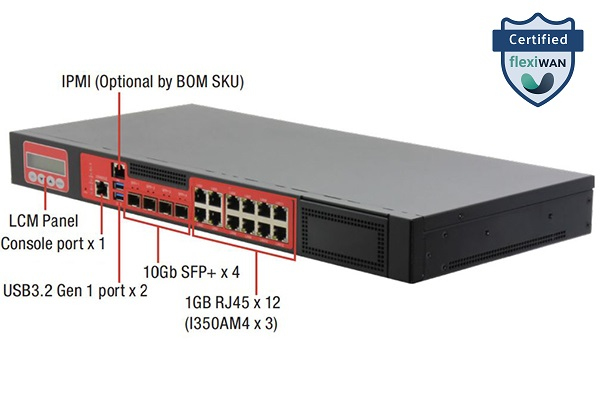

Features

RJ-45 Console Port x 1, USB 3.2 Gen1 x 2

2.5" SATA HDD x 2 (default)

1U Rackmount Network Device

Intel® Xeon® D-1700 Processors

SOC PCH

DDR4 SODIMM x 2 (ECC)

IPMI Support (Project Base)

Up to 10Gb SFP+ x 4 (see note 1)

1GbE RJ-45 x 12

NIM Slot support x 1 (see note 2)

M.2 3052 B Key x 1 for 4G/5G with SIM (USB 3.0 + PCIe)

M.2 2230 E-Key x 1 (PCIe)

TPM 2.00SPI
