FWS-2277-E2-A10-000

Brand: AAEON [An ASUS Co.]
Categories: Desktop Appliance

Desktop Networking Device with Intel® Celeron® Processor N3350 SoC (formerly Apollo Lake)

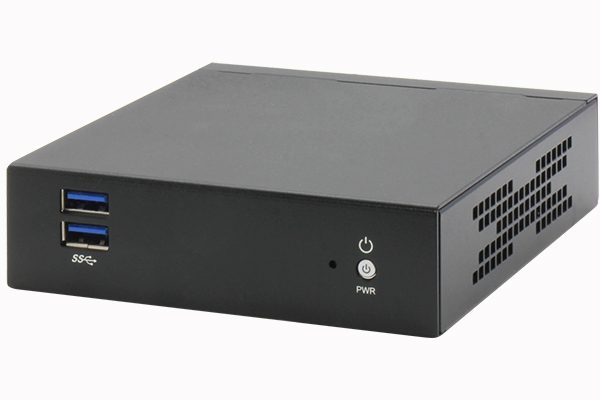

AAEON's FWS-2277 is a versatile networking solution that offers compact design and robust capabilities.

The system has two Gigabit LAN Ports and is both Wi-Fi and Bluetooth certified, providing excellent coverage for connecting to any device.

The system also features a sturdy metal construction that is perfect for Small Office/Home Office (SOHO) deployments.

The FWS-2277 is built to be compact and slightly larger than many consumer-grade modems or switches, allowing it to be deployed anywhere without taking up desktop space or requiring dedicated storage cabinets.

The FWS-2277 delivers exactly the features service providers need to get UTM, VPN and more up and running in a SOHO deployment without unnecessary extras, making the system both lightweight and easy to install.

Features

Desktop Network Device

Intel® Celeron® Processor N3350 SoC

onboard eMMC 16 GB (Optional up to 32 GB)

Intel® i211/i210 GbE x 2,

Full Size Mini Card with Wifi (11a/b/g/n/ac 2Tx2R) + BT (V5.0 LE)

onboard LPDDR4, 4GB

TPM Supported (Optional)


Features


Product Code FWS-2277-E2-A10-000
Cooling Fanless
Processor [CPU] Intel® Celeron® N3350 2 Core 1.10 GHz BM : 1105
Processor [CPU] Family Intel® Celeron®
RAM [System Memory] Onboard
SSD/HDD/mSATA/M.2 16 GB eMMC
LAN/Ethernet GbE x 2
USB 3.1 x 2
Video Output HDMI x 1
Expansion Slot Full Size Mini-PCIe x 1
Mounting Type stand
Supply voltage DC 12V
Operating temperature 0°C / 40°C
External Dimensions (mm) 115 x 115 x 32
Body Material Aluminum
Certificates CE
