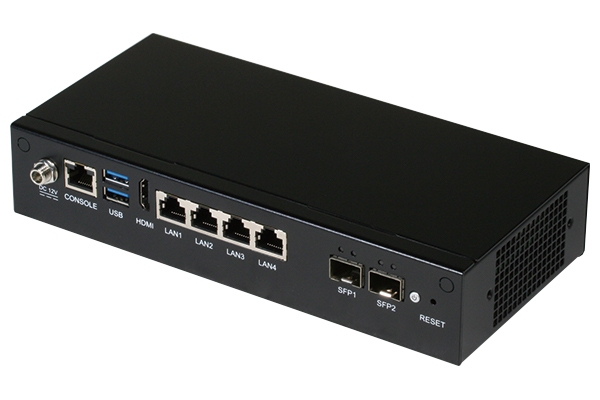

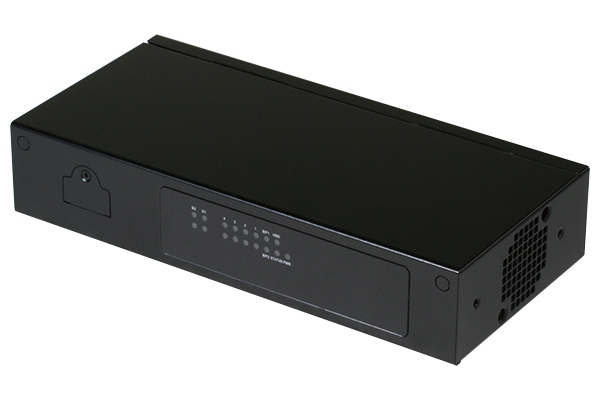

FWS-2273E7-A10-A10-00

Brand: AAEON [An ASUS Co.]
Categories: Desktop Appliance

AAEON's newest desktop networking appliance, the FWS-2273, represents a major step forward in affordable, rugged connectivity and network security. Energy-efficient and user-friendly device that supports a variety of mass storage solutions, wireless gateway and WiFi applications and is ideal for expanded vCPU to deliver 4G LTE.

1 GB Fiber/Copper Ports: One dual fiber Port and four copper SFP GbE LAN Port 2273 FWS-rich I/O capability. Fiber ports provide exceptional speed, while traditional Port FWS-2273 ensures availability of network traffic

Customer-Friendly Housing: Thanks to the FWS-2273's innovative maintenance housing, removal has never been easier with the removal of a single screw. Easily accessible and Mini SIM card covers facilitate system operation and system expansion

Use Versatility: Whether an SMB, home office, or coffee shop needs a wired connection, a customer needs a strong Wi-Fi signal, or a small hotel needs a strong Wi-Fi signal, the FWS-2273 has the ability to stay connected to multiple computers and devices and water.

• N3350 Intel® Celeron® Processor SoC

• 10/100 / 1000BASE-TX x 6 (4 x RJ-45, 2 x SFP Connector)

• Supports up to 2 Double Bypasses

• CF Connector 1 x SATA 6.0 Gb/s 2.5" HDD / SSD Port x 1

• Mini Card Slots (SIM Slot) x 2

• RJ-45 console x 1, USB 3.0 x 2


Features


Product Code FWS-2273E7-A10-A10-00
Cooling Fanless
Processor [CPU] Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107
Processor [CPU] Family Intel® Celeron®
RAM [System Memory] DDR3L
SSD/HDD/mSATA/M.2 2.5" SATA x 1 | CFast x 1
LAN/Ethernet GbE x 6
Video Output HDMI x 1
Expansion Slot Full Size Mini-PCIe x 1 | PCIe [x1] x 1 | PCIe [x1] x 1
Mounting Type stand
Supply Voltage DC V
Chassie Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded.
