FWS-2271E6-A10-A10-00

Brand: AAEON [An ASUS Co.]
Categories: Desktop Appliance

AAEON FWS-2271 is an affordable, high-performance networking device designed to meet the needs of home offices, small and medium-sized businesses, and branch offices. Compact design with tough steel casing, wiring cabinets are ideal for small offices or conference rooms requiring reliable performance and quiet operation.

6-Port Gigabit Ethernet Network Application, SOHO and SMB Firewall, VPN, Load Balancing Software Defined WAN (SD-WAN), Unified Threat Management (UTM), Wireless Access Controller (UTM) suitable for use in network applications, cost included

Designed based on FWS-2271, the 6W TDP Intel® Atom N3350 Processor SoC features excellent performance, multi-capable, highly energy-efficient networking device. Expanding opportunities for more Wi-Fi connections, 3G, 4G LTE and 2.5-inch HD

• Intel N3350 processor SoC

• DDR3L 1867 mhz dual-channel 204-pin SODIMM 1, up to 8 GB

• 10/100 / 1000Base-TX Ethernet Port x 6

• CFast™ Connector x 1

• Mini Card Slot x 2 (USB signals only to SIM slot x 1)

• Accessible SIM Cover

• Supports TPM

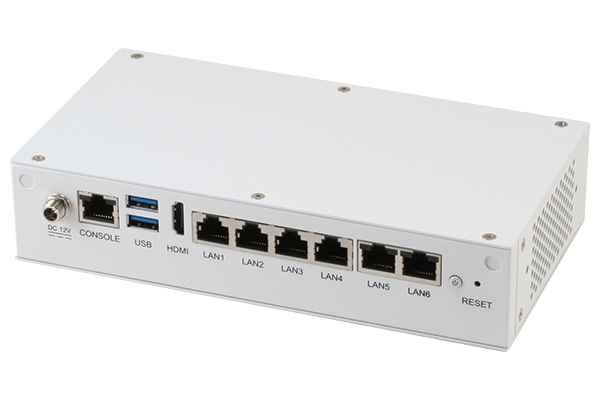

• RJ-45 console x 1, 2 x USB 3.0, HDMI x 1

• Supports up to 4 Antennas


Features


Product Code FWS-2271E6-A10-A10-00
Cooling Fanless
Processor [CPU] Intel® Celeron® N3350 2 Core 1.10 GHz BM : 1105
Processor [CPU] Family Intel® Celeron®
RAM [System Memory] DDR3L
SSD/HDD/mSATA/M.2 CFast x 1 | SATA2 x 1
LAN/Ethernet GbE x 6
Video Output HDMI x 1
Expansion Slot Full Size Mini-PCIe x 1 | USB 2.0 Header x 1
Mounting Type stand
Supply voltage DC
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows® 10 IoT | Pro | Windows® 8 | Windows® 7 | Linux Ubuntu 22.04 | License Not Included in the Price.
