ECB-920A-A11-0001
Brand: AAEON [An ASUS Co.]
Categories:

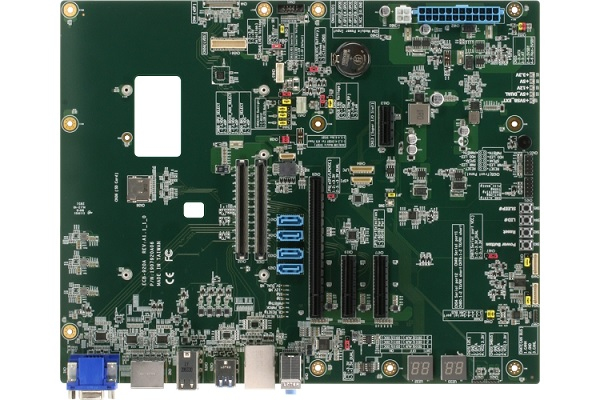

ECB-920A-A11-0001 is an ATX form factor motherboard that supports Type 6 and Type 10 COM Express modules.
It can form the basis for custom carrier board designs, reducing development time and costs.

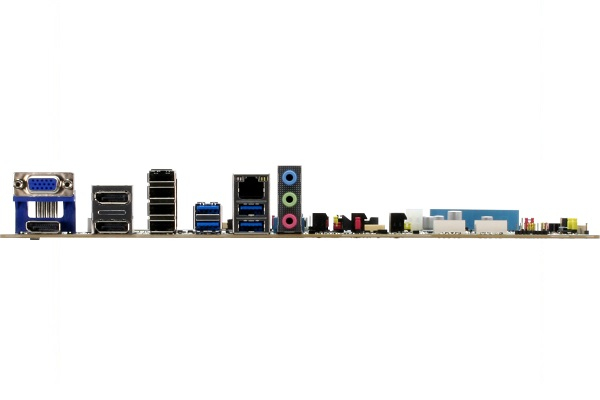

Intel® i226 provides extensive connectivity options with x 2 LAN ports, 4 x USB 3.2, 4 x USB 2.0, GPIO 8Bit and DP x 3 video output.
It provides flexible configuration with 4 x SATA3 storage support and PCIe expansion slots.
It is suitable for industrial use with 0°C ~ 60°C operating temperature, ATX power supply and CE certification.
Features
| Product Code | ECB-920A-A11-0001 |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| SSD/HDD/mSATA/M.2 | SATA3 x 4 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 4 |
| Digital I/O | GPIO 8Bit |
| Video Output | DP x 3 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | PCIe [x4] x 2 | PCIe [x16] x 1 | PCIe [x4] x 2 | PCIe [x16] x 1, SMBUS, LPC, Micro SD |
| Wireless | 802.11 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
