CSB200-897

Brand: IBASE
Categories: Automation Box PC

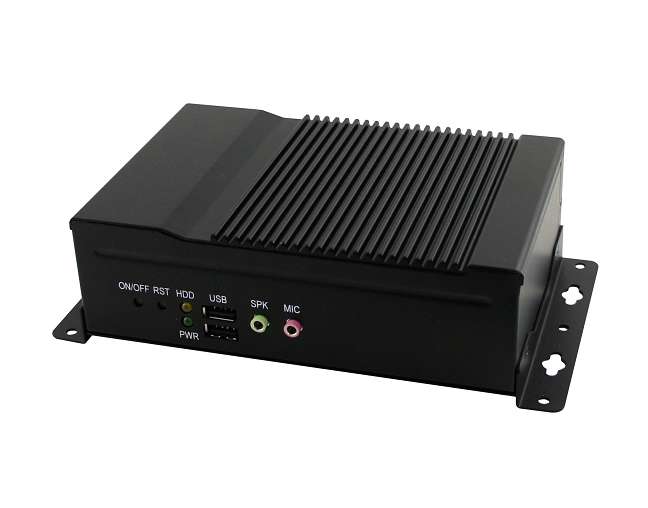

The fanless CSB200-897 system comes with IB897 3.5-inch SBC and integrates Intel® Atom™ E3845 processor with 22nm Micro architecture and 3-D Tri-Gate transistors. The unmatched reliability 1.91GHz processor allows the CSB200-897 to operate in harsh industrial environments across a wide range of temperatures from -30°C to +60°C for 24/7 operation. CSB200-897 is ideal for IOT (Internet of Things), factory automation, In-Vehicle and other rugged applications that can handle wide range power input from 12V to 24V DC.

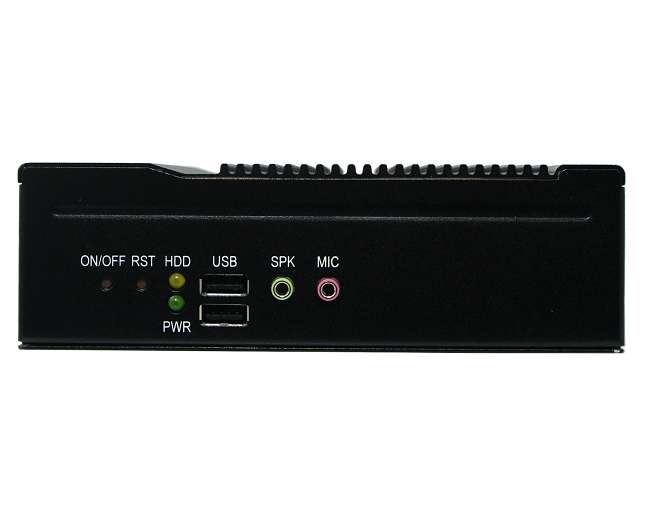

Featuring the E3845 system-on-chip (SoC), the CSB200-897 comes with two 2GB DDR3L-133 SO-DIMM RAM (memory) cards. The maximum system memory capacity is 8 GB. Moreover, the rear panel has one USB 2.0, one USB 3.0, DisplayPort, CRT VGA, two Serial Port, two Gigabit

Measuring 172mm (w) by 112mm (d) by 52mm (h), the black CSB200-897 unit comes with a wall mounting kit and Optional 60W power adapter. This model is currently available with a 2.5-inch 320GB SATA HDD or a 64GB industrial-grade SSD. Expansion two Min


Features


Product Code CSB200-897
Cooling Fanless
Processor [CPU] Intel® Atom™ E3845 4 Core 1.91 GHz BM : 1130
Processor [CPU] Family Intel® Atom™
RAM [System Memory] 4 GB Standart | [Max 8 GB]
SSD/HDD/mSATA/M.2 2.5" SATA 320 GB
LAN/Ethernet GbE x 2
USB 3.0 x 1
USB 2.0 x 3
RS 232/422/485 Serial Port x 2
Video Output VGA x 1 + DP x 1
Wireless 1 x Antenna hole
Mounting Type stand
Supply voltage DC 12V
Operating temperature -30°C / 60°C
External Dimensions (mm) 172 x 111.6 x 52
Weight (kg) 4,1
Body Material Aluminum
Certificates CE
Supported Operating Systems Windows® 10 IoT | Pro | Windows® 8 | Windows® 7 | Linux Ubuntu 22.04 | License Not Included in the Price.
