CSB200-818-I30
Brand: IBASE
Categories: Automation Box PC

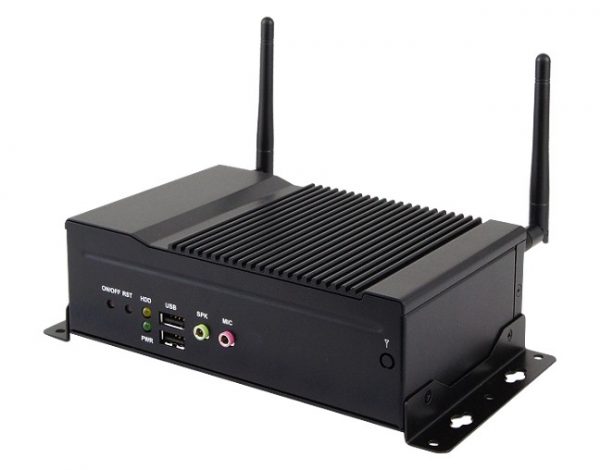

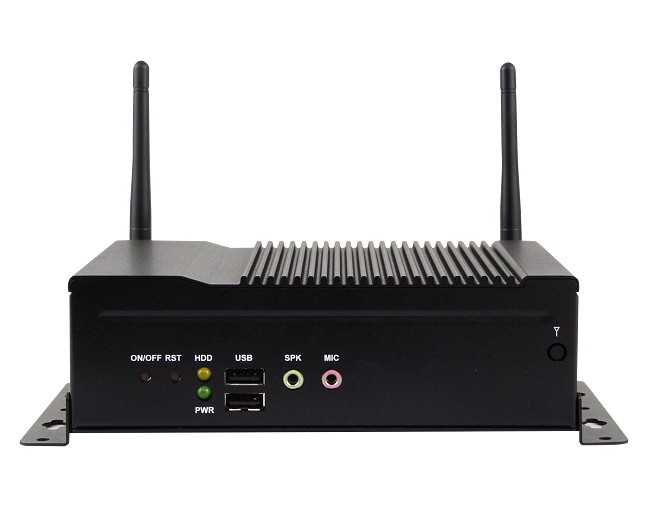

IBASE IB818 Slim Type System with 3.5 inch Disc Size SBC
Features
| Product Code | CSB200-818-I30 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Atom® x5-E3930 2 Core 1.30 GHz | BM : 1100 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 500 GB |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232 Serial Port | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 |
| Wireless | 1 x Antenna hole |
| Mounting Type | stand |
| Supply Voltage | DC 12 V |
| Operating temperature | -30°C ~ 60°C |
| External Dimensions (mm) | 172 x 111.6 x 52 |
| Chassie Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
