COM-TGHB6-A11-0003
Brand: AAEON [An ASUS Co.]
Categories:

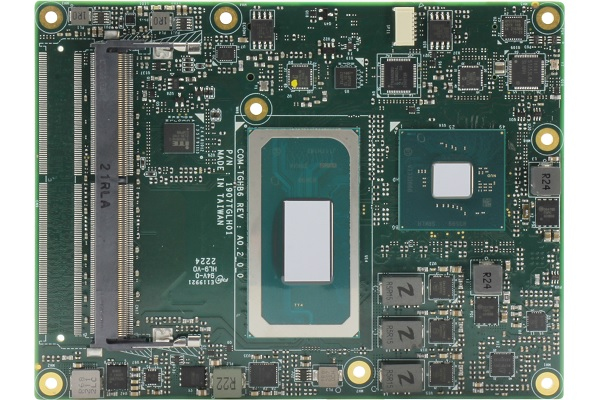

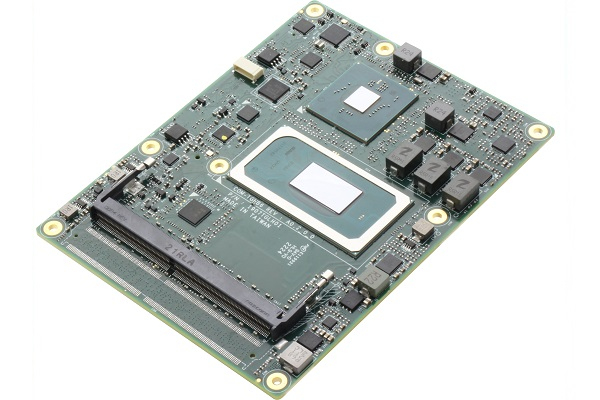

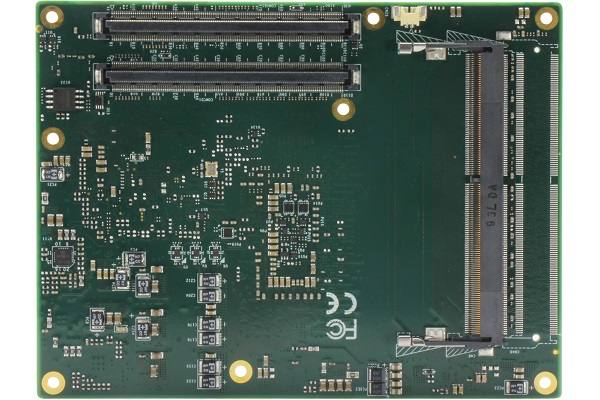

COM-TGHB6-A11-0003 is an industrial application motherboard optimized for the 11th Generation Intel® Core™ i3 processor.
The COM Express Type 6 form factor is ideal for industrial automation and embedded systems.
DDR4 x 2 memory support, PCIe [x1] x 8 and PCIe [x16] x 1 expansion slots enable easy integration into different systems.
VGA x 1 + eDP x 1 + LVDS x 1 + DDI x 3 video outputs, USB 3.2 x 4, USB 2.0 x 8 and Intel® i225-LM LAN connection are available.
With DC 12V supply voltage, 0°C ~ 60°C operating temperature and CE certification, it is compatible with Windows 10 and Linux Ubuntu 20.04 operating systems.
Features
| Product Code | COM-TGHB6-A11-0003 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 125 x 95 |
| AI Accelerator| GPU | Intel® UHD Graphics |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i3-11100HE 2 Core 2.40 GHz | BM : 11280 |
| Processor [CPU] Family | Intel® Core™ i3 11. Gen |
| RAM [System Memory] | DDR4 x 2 |
| SSD/HDD/mSATA/M.2 | SATA3 x 4 |
| LAN/Ethernet | Intel® i225-LM x 1 |
| USB 3.2 | x 4 |
| USB 2.0 | x 8 |
| Digital I/O | GPIO 8 Bit |
| Video Output | VGA x 1 + eDP x 1 + LVDS x 1 + DDI x 3 |
| LVDS | x 1 |
| Expansion Slot | PCIe [x1] x 8 | PCIe [x16] x 1 | PCIe [x1] x 8 | PCIe [x16] x 1 |
| SMBUS | x 1 |
| TPM | TPM 2.0 |
| 4G - LTE | Nano SIM (Opsiyonel) |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system sold separately from license. |
