COM-R2KC6-A10-0003
Brand: AAEON [An ASUS Co.]
Categories:

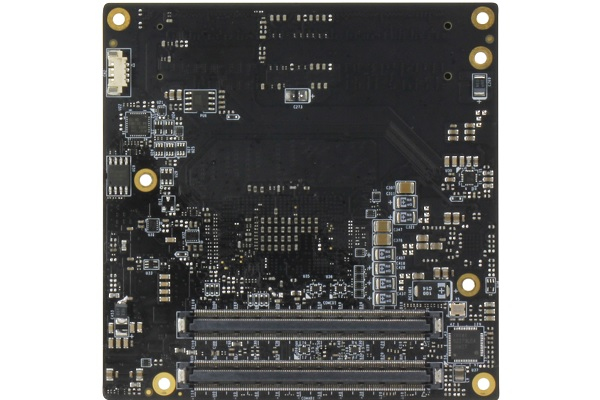

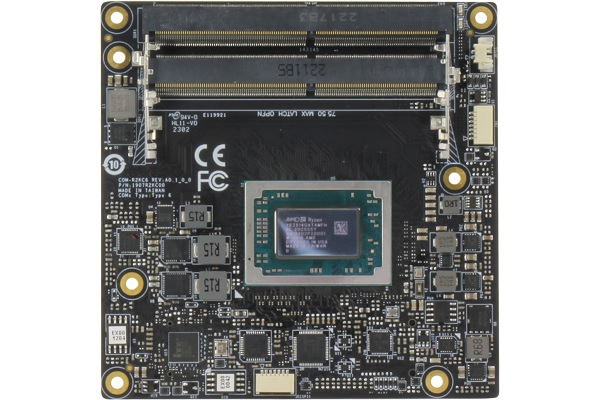

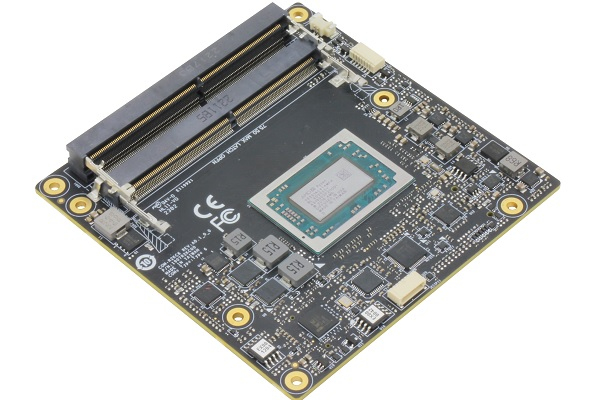

COM-R2KC6-A10-0003 is an industrial COM Express Type 6 motherboard with AMD® Ryzen™ R2314 processor, offering a balance of energy efficiency and performance.
It offers high-resolution image processing with AMD® Radeon™ Vega 8 / Vega 6 graphics card.
It offers flexible design with DDR4 x 2 [Max 32GB] RAM support, SATA3 x 2 storage option and PCIe expansion slots.
It is suitable for industrial systems with Intel® i226LM LAN port, USB 3.2 x 2, USB 2.0 x 8, eDP + DDI x 3 video output and wide connectivity options.
With DC 12V power input, 0°C ~ 60°C operating temperature and CE certification, it is compatible with Windows 10 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | COM-R2KC6-A10-0003 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 95 x 95 |
| AI Accelerator| GPU | AMD® Radeon™ Vega 8 Graphic Card / AMD® Radeon™ Vega 6 Graphic Card |
| Cooling | Fan |
| Processor [CPU] | AMD® RYZEN™ R2314 4 Core 2.10 GHz | BM : 6030 |
| Processor [CPU] Family | AMD® RYZEN™ |
| RAM [System Memory] | DDR4 x 2 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 |
| LAN/Ethernet | Intel® i226-LM x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 8 |
| USB 3.2 | x 1 |
| Digital I/O | GPIO 8 Bit |
| Video Output | eDP x 1 + DDI x 3 |
| Expansion Slot | PCIe [x4] x 1 | PCIe [x1] x 4 | PCIe [x4] x 3 | PCIe [x4] x 1 | PCIe [x1] x 4 |
| SMBUS | x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
