COM-KBUC6-A11-0003
Brand: AAEON [An ASUS Co.]
Categories:

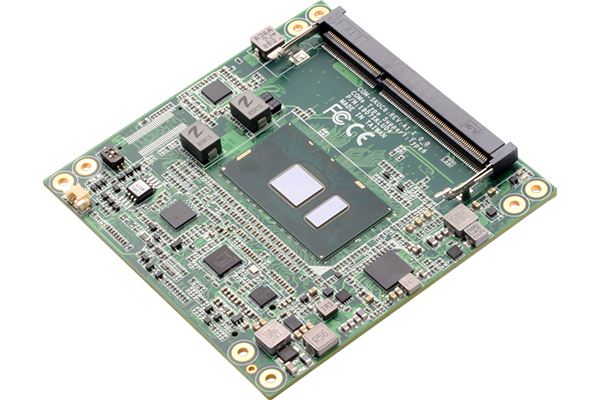

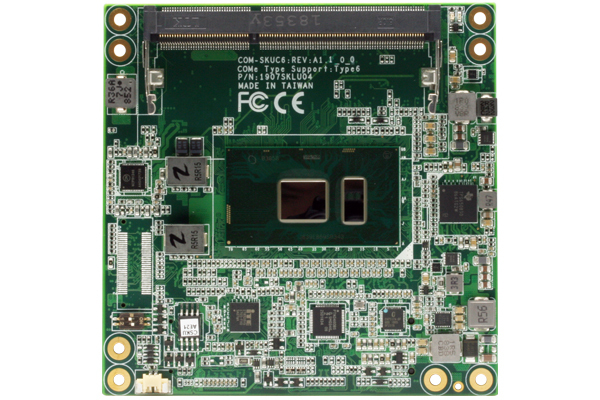

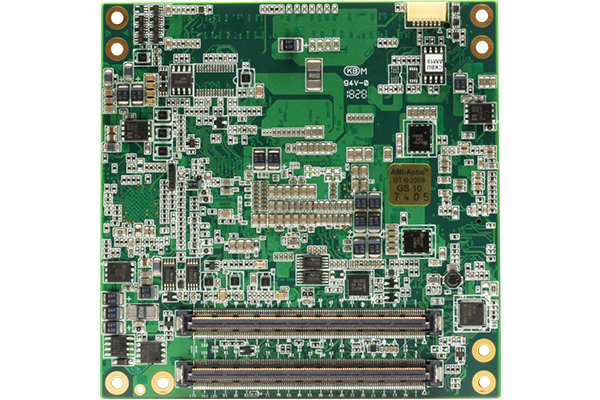

COM-KBUC6-A11-0003 is a compact COM Express Type 6 industrial motherboard with Intel® Core™ i3-7100U processor.
It offers a compact and energy efficient solution with its 2 Core processor at 2.40 GHz.
It offers wide connectivity options with GbE x 1 LAN connection, eDP x 1, LVDS x 1, DDI x 1 and CRT x 1 display outputs.
It provides high data transfer with 2.5" SATA x 2 storage support and PCIe [x8] x 1 expansion slot.
With DC 12V AT/ATX supply voltage, 0°C ~ 60°C operating temperature and CE certification, it is compatible with Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | COM-KBUC6-A11-0003 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 95 x 95 |
| Processor [CPU] | Intel® Core™ i3-7100U 2 Core 2.40 GHz | BM : 2790 |
| Processor [CPU] Family | Intel® Core™ i3 7. Gen |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x 4 |
| USB 2.0 | x 8 |
| Various Ports | SMBus + UART 2 (Tx/Rx) |
| Digital I/O | GPIO 8 Bit |
| Video Output | eDP x 1 + LVDS x 1 + DDI x 1 + CRT x 1 |
| LVDS | 24 bit 1CH x 1 |
| Expansion Slot | PCIe [x8] x 1 | PCIe [x8] x 1 |
| Supply Voltage | DC 12 V AT/ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
