COM-CFHB6-A11-0006
Brand: AAEON [An ASUS Co.]
Categories:

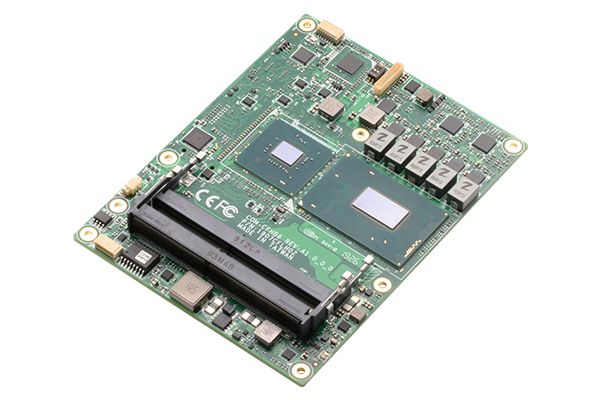

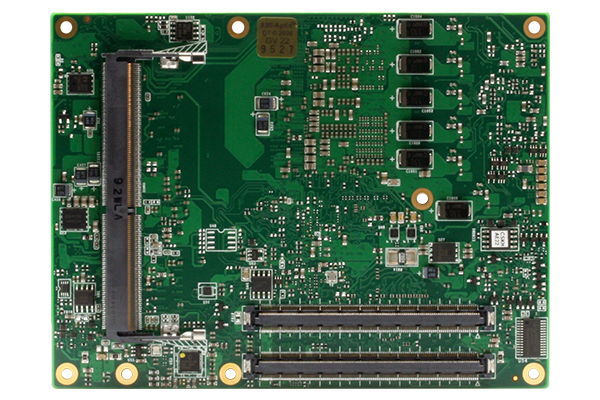

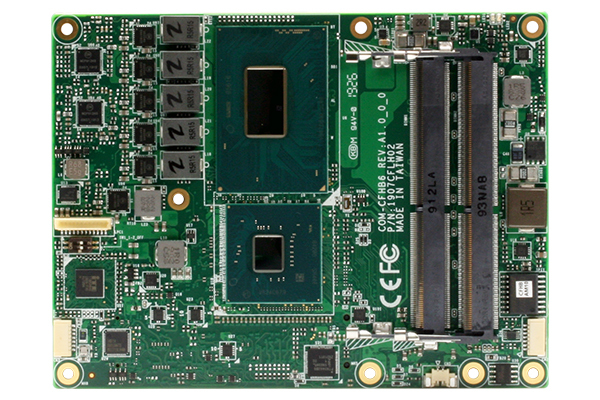

COM-CFHB6-A11-0006 is an industrial COM Express Type 6 motherboard optimized for data-intensive computing with an Intel® Xeon® E-2276ME processor.
It provides rich I/O options with GbE x 1 LAN port, USB 3.2 x 4, USB 2.0 x 8 connections.
PCIe [x1] x 8, PCIe [x16] x 1 expansion slots provide advanced storage and AI acceleration support.
It supports high-resolution visuals with VGA x 1, DDI x 2 and LVDS 18/24 bit 2CH video outputs.
With its 0°C ~ 60°C operating temperature, DC 12V supply voltage and CE certification, it is compatible with Windows 10 and Linux Ubuntu 18.04 operating systems.
Features
| Product Code | COM-CFHB6-A11-0006 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 125 x 95 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® E-2276ME 6 Core 2.80 GHz | BM : 8160 |
| Processor [CPU] Family | Intel® Xeon® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | SATA3 x 4 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x 4 |
| USB 2.0 | x 8 |
| Video Output | VGA x 1 + DDI x 2 |
| LVDS | 18/24 bit 2CH x 1 |
| Expansion Slot | PCIe [x1] x 8 | PCIe [x16] x 1 | PCIe [x1] x 8 | PCIe [x16] x 1 | SMBus x 1 |
| Supply Voltage | DC 12 V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 18.04 | Operating system sold separately from license. |
