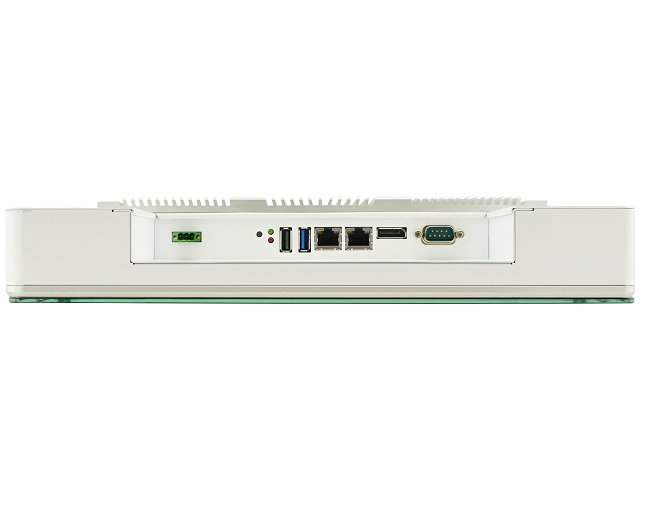

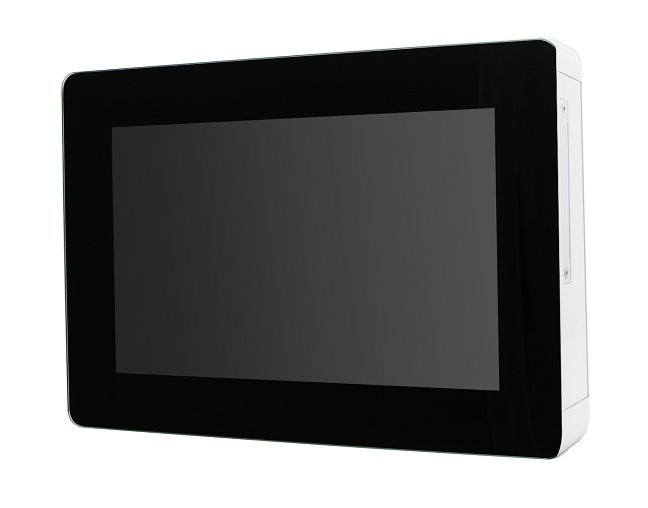

BYTEM-123-PC is based on the quad-core Intel® Atom™ processor E3845 and EN50155 certified for railway applications. It provides high computing performance and low power consumption, operating silently at temperatures from -40°C to 75°C. Units that meet EN50155 standards support input voltages including 24V (default) and 72V and 110V (options). It has IP65 protection to make the front panels dustproof and washable, as well as an IP54 rating for the entire unit. To increase the functionality and performance of BYTEM-103-PC, IBASE has added a two-finger multi-touch screen, giving users more control over the user interface. Onboard I/O and Expansion features support M12 connectors for power input and 10/100M Ethernet communications, two USB 3.0, one USB 2.0, Gigabit Ethernet controllers for system and software setup or maintenance. The systems also support VESA mounting and an optional rack mount kit for mounting in different installation types.

• Smart Transportation

• Rail systems
