BOXER-RK99-A10-0001
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC

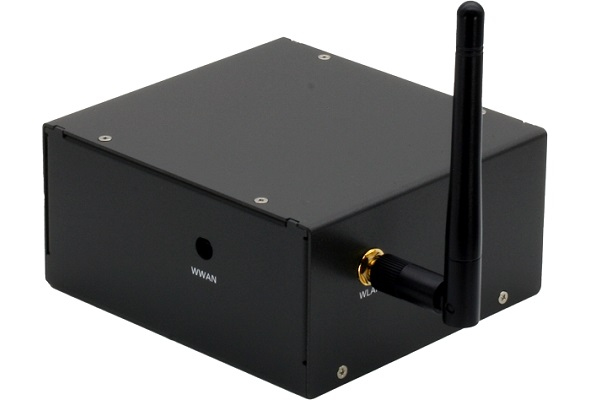

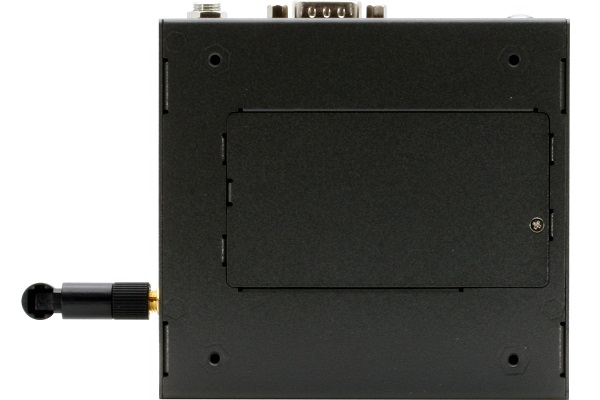

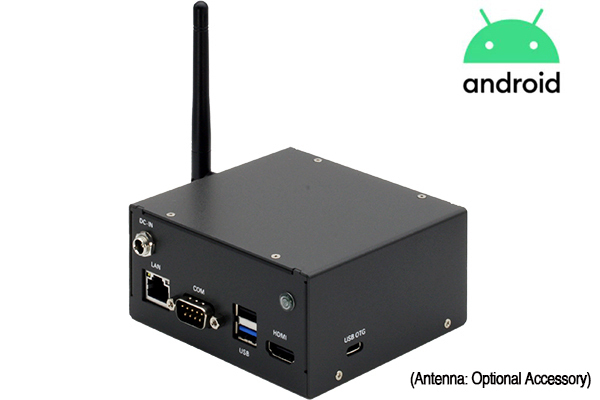

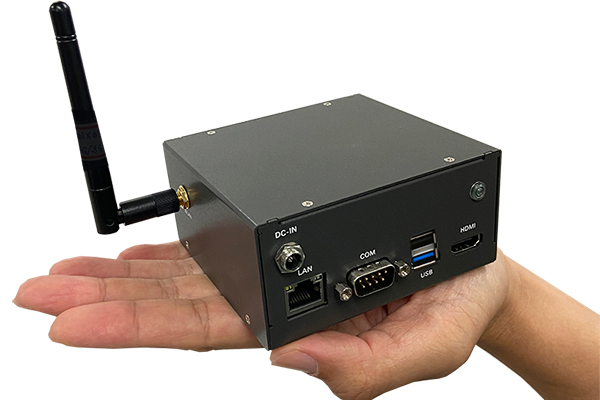

BOXER-RK99-A10-0001 is an ultra-compact AI Box PC with fanless design and powered by Rockchip RK3399 processor.
It runs on Android 8.x operating system and offers a user-friendly interface.

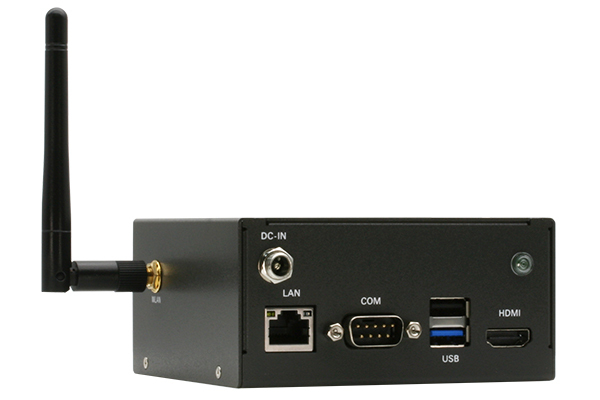

It offers wide connectivity support with HDMI x 2, DVI-I x 1 video output and MicroSD slot.
Equipped with GbE LAN x 1, USB 3.2 x 2, USB 2.0 x 1, RS-232/422/485 x 1 serial ports.
It is compatible with industrial environments with its 0°C ~ 60°C operating temperature, VESA 75 mounting support and CE / FCC certification.
Features
| Product Code | BOXER-RK99-A10-0001 |
| AI Accelerator| GPU | ARM® Mali-T864 |
| Cooling | Without Fan |
| Processor [CPU] | RockChip™ RK3399 + Dual Core Cortex® A72 1.80 GHz + Cortex® A53 Quad Core 1.40 GHz |
| Processor [CPU] Family | RockChip™ |
| RAM [System Memory] | Onboard [Max 4 GB] |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC | MicroSD x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x 2 |
| USB 2.0 | x 1 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 2DVI-I x 1 |
| Expansion Slot | Full Size Mini PCIe x 1 |
| Wireless | Wi-Fi / BT Opsiyonel |
| Mounting Type | VESA 75 | Mounting Unit Not Included. |
| Working temperature | 0°C ~ 60°C |
| External Dimensions (mm) | 103.4 x 96 x 50 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Android 8.x |
