BOXER-RK88-A11-0001
Brand: AAEON [An ASUS Co.]
Categories: RISC Single Board Computers

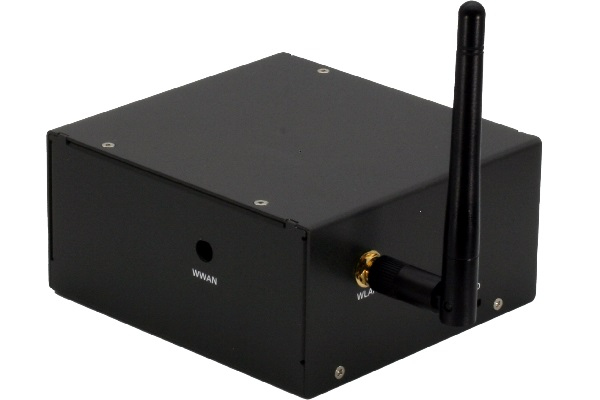

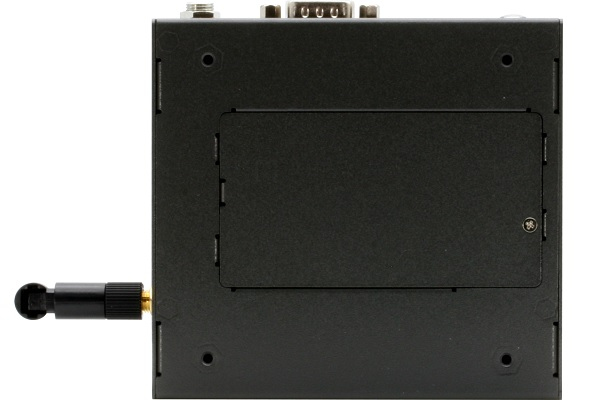

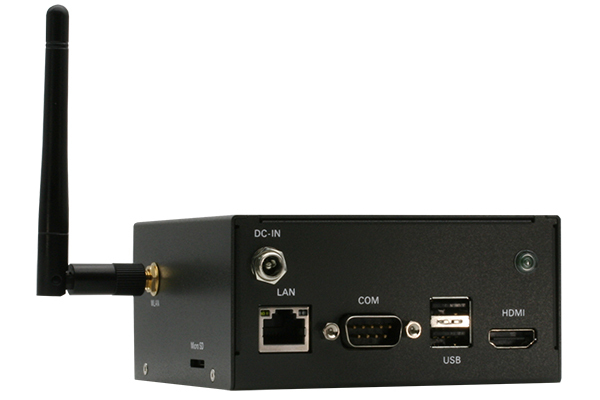

Fanless Embedded Box PC with Rockchip RK3288
To meet different business requirements with simple yet smart solutions, AAEON developed BOXER-RK88 and BOXER-RK99.
Both equipped with Android operating systems and designed as compact, lightweight Box PCs, BOXER-RK88 and BOXER-RK99 offer ideal solutions for customers looking for rapid deployment of edge solutions.
BOXER-RK88 and BOXER-RK99 come equipped with Android 9.0 and 8.1 respectively, offering users enhanced user interface and multimedia capabilities.
BOXER-RK88 and BOXER-RK99 both feature a single MicroSD card slot, HDMI ports and antenna Connectors for Wi-Fi connectivity.
BOXER-RK88 includes two USB 2.0 Ports, while BOXER-RK99 includes one USB 2.0 Port and can also support 3.2 Gen1 USB. Both offer Optional LTE Antenna Connector additions.
Rockchip RK3288
DDR3L 2GB/4GB (Optional)
eMMC 16 GB and MicroSD Card Slot
HDMI (1.4) Port x 1
WiFi 802.11 b/g/n, BT V4.2
GbE: RJ45 x 1
USB 2.0: Micro USB OTG x 1, Type A x 2
RS-232/422/485 x 1, RS-232 x 1 (Optional)
mPCIe Slot x 1
(+)
Operating System Support: Android 9.0
Operating System Support: Android 9.0
Features
| Product Code | BOXER-RK88-A11-0001 |
| AI Accelerator | GPU | Mali-T764 |
| Cooling | Fanless |
| Processor [CPU] | RockChip™ RK3288 ARM® Cortex-A17 1.60 GHz |
| Processor [CPU] Family | RockChip™ RK3288 |
| RAM [System Memory] | DDR3L |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC | MicroSD x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 2.0 | x 3 |
| RS 232/422/485 Serial Port | x 1 |
| Video Output | HDMI x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 |
| Wireless | 802.11 b/g/n + BT 4.2 + EDR |
| Mounting Type | VESA 75 | Mounting Unit Not Included. |
| Operating temperature | 0°C / 60°C |
| External Dimensions (mm) | 103.4 x 96 x 50 |
| Weight (kg) | 0,5 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Android 9.x |
