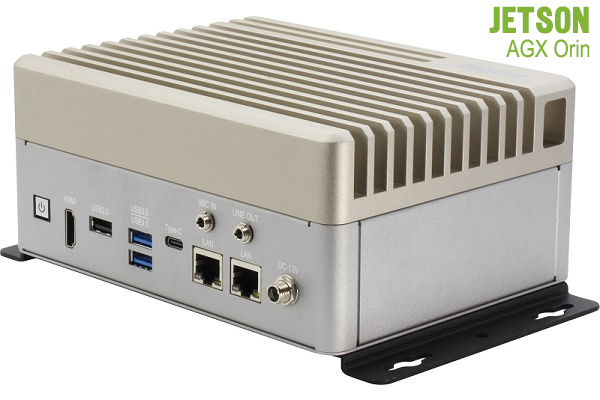

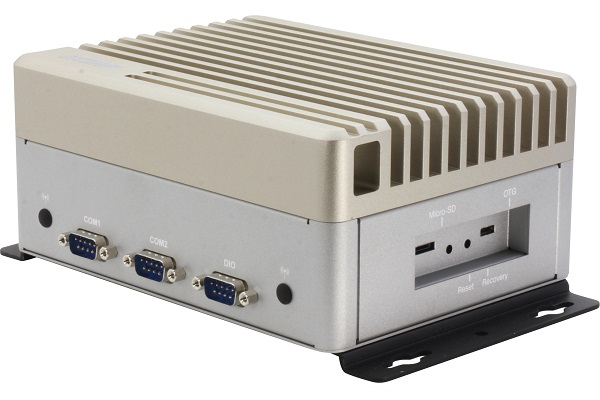

BOXER-8641AI-JP511E-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8641AI-JP511E-A2-1010, AI@Edge Fanless Embedded Artificial Intelligence System with NVIDIA® Jetson™ AGX Orin™.
12 Core ARM Cortex®-A78AE CPU, 64 GB RAM, 64 GB eMMC, MicroSD x1.
2 x GbE LAN, 3 x USB 3.2, 1 x USB 2.0, 2 x RS-232/485, HDMI x1 video output.
M.2 E/B/M Key x1, SIM x1 expansion slot, supports Linux (NVIDIA Jetpack™ 5.0).
Features
| Product Code | BOXER-8641AI-JP511E-A2-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ AGX Orin™ 64 GB |
| Cooling | Without Fan |
| Processor [CPU] | 6 Core ARM® Carmel® V8.2 64bit |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 64 GB Onboard |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC | MicroSD x 1 | 2.5" SATA x 1 | M.2 M Key x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x 3 |
| USB 2.0 | x 1 |
| RS 232/485/CANBUS Serial Port | x 2 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 | M.2 M Key x 1 | SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12 V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 180 x 136 x 61.1 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
