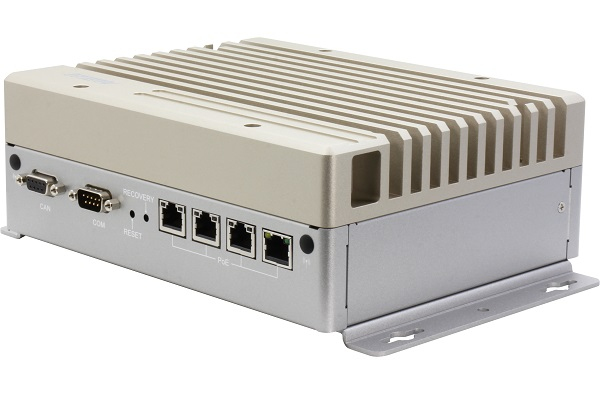

BOXER-8640AI-JP511E-A2-1010

Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC

AI@Edge Fanless Embedded AI System with NVIDIA® Jetson™ AGX Orin™

Leveraging state-of-the-art NVIDIA® Jetson™ AGX Orin™ technology, the BOXER-8640AI Fanless Box PC delivers unique AI capabilities to the edge, expanding its applicability in a variety of fields.

The Ampere Architecture in NVIDIA® Jetson™ AGX Orin™ is equipped with 1792 CUDA® cores and 56 Tensor cores, delivering a maximum performance of 200 TOPS.

This enables the BOXER-8640AI to leverage revolutionary cd/m²e inference capabilities across multiple video streams simultaneously.

AAEON's meticulously engineered hardware, featuring the latest NVIDIA® JetPack™ SDK, expands application potential and gives creators a comprehensive framework with world-class AI acceleration, multimedia, graphics and computer vision tools for any application.

One of the BOXER-8640AI's key strengths lies in its adaptability when deployed, having a wide operating temperature range of -4°F to 131°F (-20°C to 55°C), making it suitable for use in a variety of environments.

Moreover, the complexity and versatility of its architecture is epitomized by four Power over Ethernet (PoE) LAN Ports that combine power with versatility.

NVIDIA® Jetson™ AGX Orin™

PoE/PSE 802.3af x 4 (Max. 60W)

RS-232/422/485x1, CANBusx2

40-pin header, Microphone In/Line-Out

M.2 2230 E-Key, M.2 2280 M-Key, 2.5" SATA Drive Bay


Features


Product Code BOXER-8640AI-JP511E-A2-1010
AI Accelerator | GPU NVIDIA® Jetson™ AGX Orin™
Cooling Fanless
Processor [CPU] NVIDIA® Jetson™ AGX Orin™ 64GB
Processor [CPU] Family NVIDIA® Jetson™ AGX Orin™
RAM [System Memory] 64 GB Onboard
SSD/HDD/mSATA/M.2 64 GB eMMC | MicroSD x 1 | 2.5" SATA x 1 | M.2 M Key x 1
LAN/Ethernet POE LAN x 4
USB 3.2 x 4
CANBus x 1
RS 232/422/485 Serial Port x 2
Video Output HDMI x 1
Expansion Slot M.2 M Key x 1 | M.2 E Key x 1
Mounting Type wall mount
Supply voltage DC 12V - 24V
Operating temperature -20°C / 55°C
External Dimensions (mm) 211 x 164.2 x 74
Weight (kg) 3,76
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Linux (NVIDIA® Jetpack™ 5.0)
