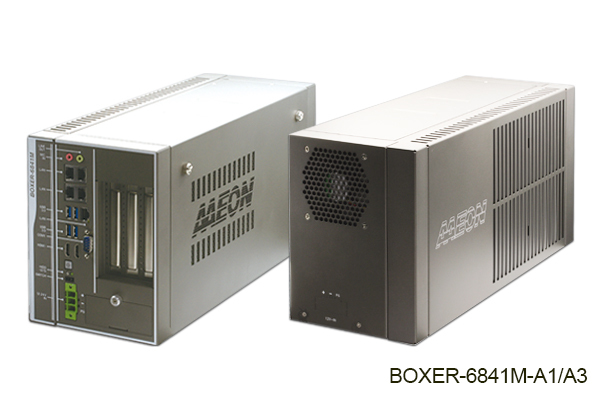

BOXER-6841M-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: Expandable Box PC
BOXER-6841 is designed for edge and machine vision applications.
Different models have PCIe [x16] slots for NVIDIA® GPUs (Au perfect Edge applications) or frame-grabbing PCIe [x8] slots for cards. Users can also choose from high-performance Intel® Celeron or Xeon CPUs.
To meet the power needs of high-end GPUs, the BOXER-6841 features a smart design: Two 12 VDC power inputs. This feature reduces costs and reduces waste levels, making the system more stable.
The BOXER-6841 also has five Intel LAN chips with plenty of Edge features, including a removable HDD and dual mSATA slots.
• 6 and 7 Intel® Core™ i5/i7 processor support, Max. 65W
• Xeon server class processors, Maximum 73W support
• H110 Intel PCH, PCH C236
• Expansion slot design for easy installation
• Supports PCIe [x16] PCIe x1 [x8] x2 PCIe [x1] x1
• Supports Maximum Graphics Card up to 250W
• Fanless System or PWM function System Fan
• Machine Vision / Vision Applications
Features
| Product Code | BOXER-6841M-A1-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Xeon® | Core™ i7 | i5 | i3 | Celeron® |
| Processor [CPU] Family | Intel® Xeon™ | Core™ i7 | i5 | i3 | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 | RAID |
| LAN/Ethernet | GbE x 5 |
| USB 3.0 | x 4 |
| RS 232 Serial Port | x 1 |
| Video Output | HDMI x 2DVI-I x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 2 | PCIe [x16] x 1 | PCIe [x1] x 1 | PCIe [x16] x 1 | PCIe [x1] x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24 V |
| Operating temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 155 x 200 x 400 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
