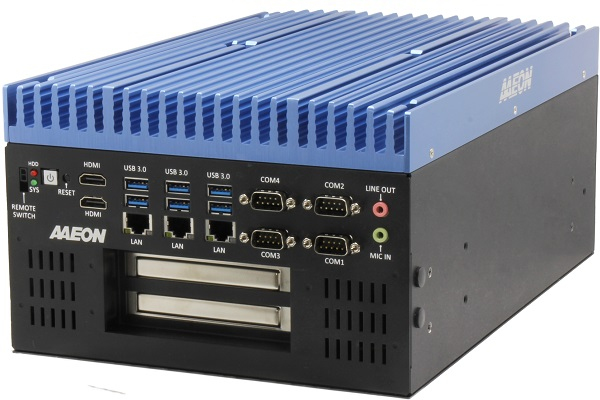

BOXER-6840-CFL-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: Expandable Box PC
BOXER-6840-CFL-A1-1010 is designed as embedded controller with 8th and 9th Generation Intel® processor with high computing power.
Supports Intel® Xeon® | Core™ 8th Gen i9 | i7 | i5 | i3 | Pentium® processors and delivers high performance.
[Max 128 GB] RAM support provides expansion with MicroSD x 1 | 2.5" SATA x 2 | RAID | M.2 NVMe x 1 storage options.
It offers extensive connectivity options with 3 x GbE LAN ports, 6 x USB 3.2, HDMI x 2 + VGA video output and various expansion slots.
DC 12-24V wide voltage range, can work in the temperature range of -20°C ~ 60°C, and is compatible with Windows 10, Linux operating systems.
Features
| Product Code | BOXER-6840-CFL-A1-1010 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | MicroSD x 1 | 2.5" SATA x 2 | RAID | M.2 NVMe x 1 |
| LAN/Ethernet | GbE x 3 |
| USB 3.2 | x 6 |
| Video Output | HDMI x 2 + VGA x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 2 | Half Size Mini-PCIe x 1 | M.2 B Key x 1 | PCIe [x4] x 1 | PCIe [x16] x 1 | PCIe [x4] x 1 | PCIe [x16] x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24 V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 220 x 150 x 320 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
