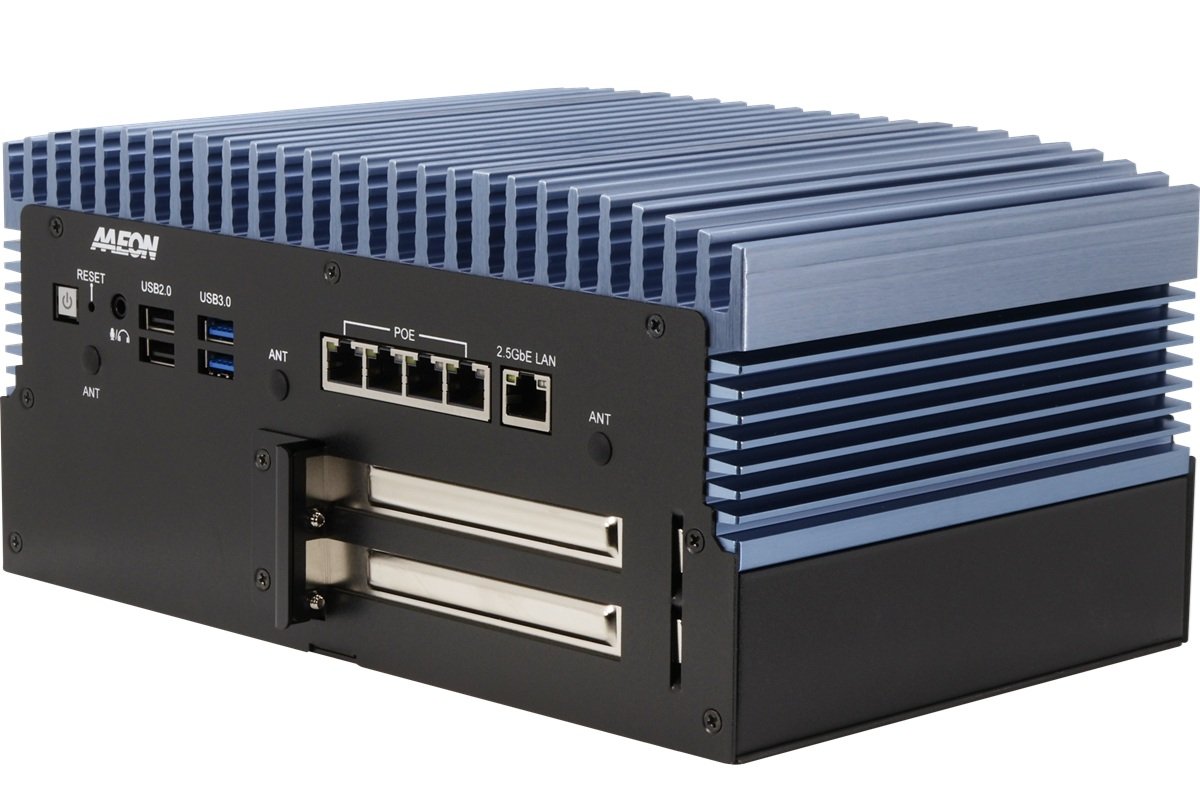

BOXER-6801-RAP-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:
It delivers high-level processing performance even in a fanless structure, thanks to the 13th Generation Intel® Core™ i7/i5/i3 Mobile Processors (Raptor Lake-P series).
It provides high-speed data flow and storage with dual slot support for up to 96GB DDR5 memory and 5 2.5GbE LAN ports.
4 of the 5 2.5GbE ports have PoE (Power over Ethernet) function and provide a total of 60W power sharing, providing energy to devices such as cameras and sensors.
It includes both a modern PCIe [x1] slot and a PCI slot for compatibility with legacy systems, supporting both legacy and next-generation add-in cards.
With its fanless structure, wide operating temperature range of -20°C ~ 60°C and wide voltage input range of 9V~36V DC, it operates reliably in harsh industrial environments.
Features
| Product Code | BOXER-6801-RAP-A2-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-1340PE 12 Core 1.80 / 4.50 GHz | BM : 20040 |
| Processor [CPU] Family | Intel® Core™ i5 13. Gen |
| RAM [System Memory] | DDR5 SO-DIMM x 2, Maks. 96GB |
| SSD/HDD/mSATA/M.2 | 2.5” SATA Drive Bay x 1, M.2 2280 M-key (NVMe Gen4x4) x 1 |
| LAN/Ethernet | 2.5GbE x 5 |
| USB 3.2 | x 2 |
| USB 2.0 | x 2 |
| RS 232/422/485 Serial Port | x 2 |
| Video Output | HDMI x 2 |
| Digital I/O | GPIO 8Bit |
| Audio Output | Line-out x 1, MIC-in x 1 |
| Expansion Slot | M.2 (M, E, B-Key), PCIe[x1] x 1, PCI Slot x 1 |
| Mounting Type | Wallmount |
| Supply Voltage | DC 9V-36V |
| Working temperature | -40˚C ~ 80˚C |
| External Dimensions (mm) | 264 x 179 x 124 |
| Weight (kg) | 4.9 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 10 IoT | Windows® 11 IoT | Linux Ubuntu 22.04 | İşletim sistemi lisans harici olarak satılır. |
