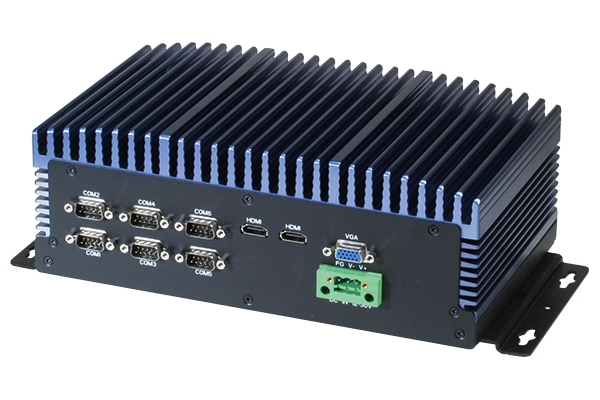

The BOXER-6639 will be optimized for factory automation, product line management and automotive embedded control applications in a compact (Embedded) and integrated system combines a comprehensive portfolio of different applications with a single machine vision platform.
Designed to facilitate industrial automation processes such as factory control and product lifecycle management, BOXER-6639 is a reliable machine vision architecture that is flexible, low-maintenance and designed for rapid deployment options. PROCESSOR,
Designed for longevity and flexibility, the BOXER-6639 is a durable and ruggedized, highly scalable computer that can be used in harsh environments such as factories. -20 ~ 55°C operating temperature spectrum and installed components and support systems
• Incredibly Powerful Computing and Graphics Display Features
• Desktop Processor Type Socket Class with Long Life Support
• Supports up to 32 GB DDR4 ECC or non-ECC SODIMM
• VGA + HDMI x 2 triple display, HDMI supports 4K display
• Support USB 3.0 x 4, 2 x USB 2.0
• Support industrial-grade Intel® GbE LAN x 3
• BIOS selectable RS-232/422/485 x 6 support
• Compact Size and Easy Access Design
• Wide Range DC 9 ~ 36V Input
• 34 bit Digital Input and Output
• Aluminum body design
Product Code | BOXER-6639M-A1-1010 |
Cooling | Fanless |
Processor [CPU] | Intel® Core™ 7. Gen i7 | i5 | i3 | Pentium® | Celeron® |
Processor [CPU] Family | Intel® Core™ 7. Gen i7 | i5 | i3 | Pentium® | Celeron® |
RAM [System Memory] | [Max 32 GB] |
SSD/HDD/mSATA/M.2 | mSATA x 1 | 2.5" SATA x 1 | CFast x 1 |
LAN/Ethernet | GbE x 3 |
USB 3.2 | x 4 |
USB 2.0 | x 2 |
RS 232/422/485 Serial Port | x 6 |
Digital I/O | GPIO 34Bit |
Video Output | HDMI x 2 + VGA x 1 |
Audio Output | Line-in x 1 + Line-Out x 1 |
Expansion Slot | Full Size Mini-PCIe x 2 |
Mounting Type | wall mount |
Supply voltage | DC 12V - 36V |
Operating temperature | -20°C / 55°C |
External Dimensions (mm) | 264.2 x 96.4 x 154.2 |
Weight (kg) | 4 |
Body Material | Aluminum |
Certificates | CE | FCC |
Supported Operating Systems | Windows® 10 IoT | Pro | Windows® 8 | Windows® 7 | Linux Ubuntu 22.04 | License Not Included in the Price. |
