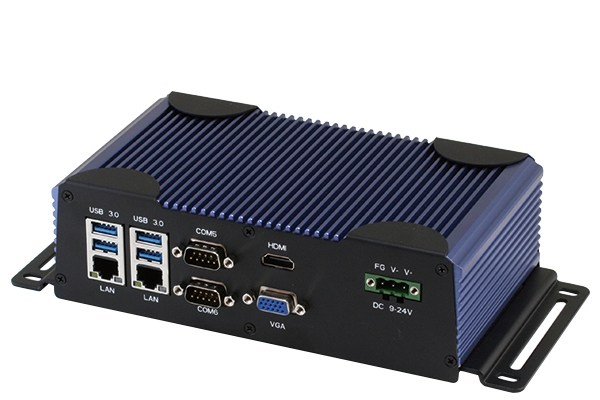

BOXER-6616-A2-1110
Brand: AAEON [An ASUS Co.]
Categories: Automation Box PC
AAEOs, a major IT solution developer for Industry 4.0, has introduced the BOXER-6616 to the PC market, perfect for low-power embedded applications (Embedded) for digital signage, building control and factory automation.
Powered by a wide voltage input of 9-24v and the new Apollolaan CPU BOXER-6616, it is compact and has minimal power consumption (17 watt limit), making it perfect for entry-level demanding industrial use.
BOXER-6616 is the first and only commercially available product that offers a switchable AT/ATX footswitch on the external I/O side and supports Embedded and remote PC BOX for easier accessibility.
Features
| Product Code | BOXER-6616-A2-1110 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 GHz BM : 1105 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232 Serial Port | x 6 |
| Video Output | HDMI x 1 + VGA x 1 |
| Audio Output | Line-in x 1 + Line-Out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| Wireless | 5G/LTE |
| Mounting Type | VESA | Wallmount | Din Rail | Optional | Mounting Unit Not Included. |
| Supply voltage | DC 9V - 24V |
| Operating temperature | -20°C / 55°C |
| External Dimensions (mm) | 197 x 110 x 55 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows® 10 IoT | Pro | Windows® 8 | Windows® 7 | Linux Ubuntu 22.04 | License Not Included in the Price. |
