BOXER-6405-A1-1011
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway

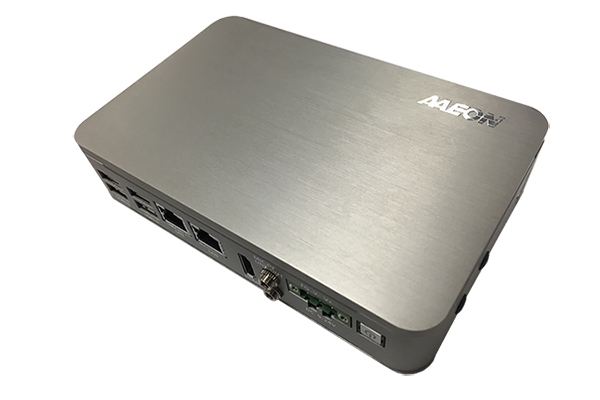

BOXER-6405 is a smart factory, ultra-compact edge computing solution for rugged applications. At just 37mm thick, it can be placed almost anywhere and operate in harsh plant environments with an operating temperature range of -20°C to 60°C.
BOXER-6405 is a versatile system powered by an Intel Celeron or Pentium processor and a wide range of I/O Ports.
Features
| Product Code | BOXER-6405-A1-1011 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® N3350 2 Core 1.10 / 2.40 GHz | BM : 1107 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | 4 GB Default 4 GB DDR3L |
| SSD/HDD/mSATA/M.2 | mSATA x 1 |

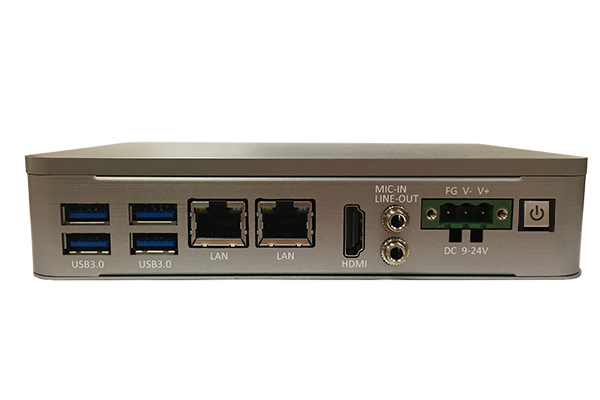

| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 4 |
| RS 232 Serial Port | x 3 |
| Video Output | HDMI x 1 + VGA x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| Mounting Type | Wallmount | Din Rail | optional |
| Supply Voltage | DC 9-19 V |
| Operating temperature | -30°C ~ 60°C |
| External Dimensions (mm) | 166 x 107 x 37 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Linux | Licence Price is excluded. |
