BOXER-6404M-A1-1210
Brand: AAEON [An ASUS Co.]
Categories: IoT Gateway

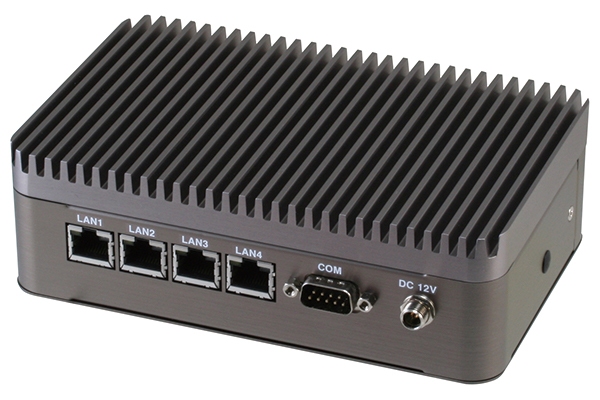

LAN x 4, 2 x HDMI, Intel® Celeron® J1900/N2807 processor Wide Temperature onboard Compact (Embedded) Box PC
Features
| Product Code | BOXER-6404M-A1-1210 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Celeron® J1900 4 Core 2.00 GHz | BM : 1150 |
| Processor [CPU] Family | Intel® Celeron® |
| RAM [System Memory] | Default 4 GB DDR3L [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 | RAID | CFast x 1 |
| LAN/Ethernet | GbE x 4 |
| USB 3.0 | x 1 |
| USB 2.0 | x 1 |
| Serial Port | 2 Cable UART (Tx /Rx) x 2 |
| RS 232 Serial Port | x 3 |
| Video Output | HDMI x 2DVI-I x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 |
| Wireless | 2 x Antenna hole |
| Mounting Type | VESA 75 | Din Rail | Mounting Unit Not Included. |
| Supply Voltage | DC 12 V |
| Operating temperature | -30°C ~ 75°C |
| External Dimensions (mm) | 166 x 107 x 42 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
