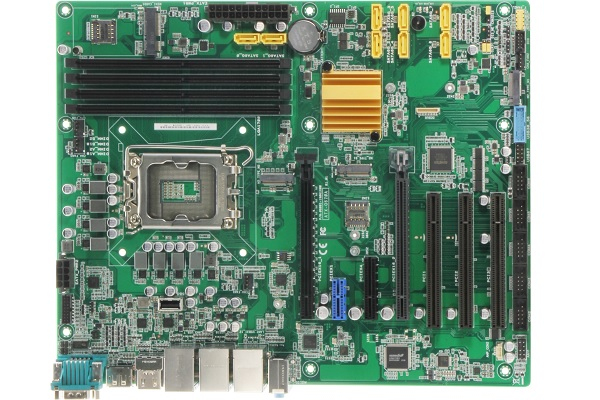

ATX-Q670A-A10-2L
Brand: AAEON [An ASUS Co.]
Categories: ATX
12./13. ATX with Generation Intel® Core™ LGA1700 Socket Processor, TDP Max. 125W, DDR5 DRAM, Multi-Display Port
AAEON's newest industrial motherboard, the ATX-Q670A, showcases AAEON's commitment to innovation.
Features
12./13. Generation Intel® Core™ LGA1700 Socket Processors
DDR5 DRAM Support, 4000MHz, Max. 128GB

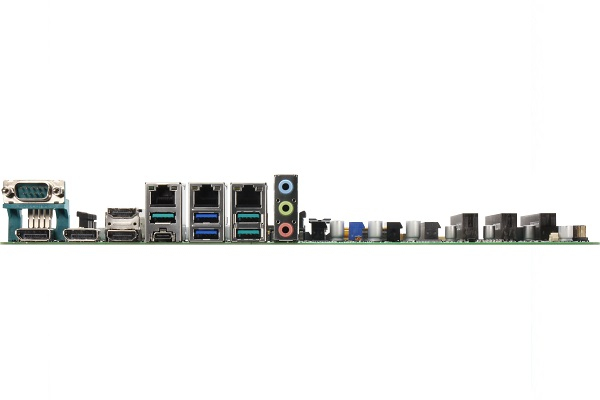

Four Independent Displays: HDMI 2.0 x 2, DP x 2, VGA x 1
Dual Intel® GbE (Optional: additional LAN 3 I225-LM x 1)
M.2 2280/2242 M-Key x 2, M.2 3042/3052 B-Key x 1 + Micro SIM Slot x 1, Mini-PCIe x 1 + Micro SIM Slot x 1
USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 4, USB 2.0 x 3 (Optional: USB Type-C x 1, USB 3.2 Gen2 x 3)
SATA x 8
Switchable USB Power feature to reset USB device
Bootable feature on rear USB Port for enhanced security
onboard TPM 2.0
Features
| Product Code | ATX-Q670A-A10-2L |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Cooling | Fan |
| Processor [CPU] | Intel® Core™ i9 | i7 | i5 | i3 | |
| Processor [CPU] Family | Intel® Core™ i9 | i7 | i5 | i3 | Pentium® |
| RAM [System Memory] | DDR5 4000 MHz DIMM x 4 | [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 2 | SATA3 x 8 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 1 |
| USB 3.2 | x 4 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 5 |
| Video Output | HDMI x 2 + VGA x 1 + DP x 2 |
| Expansion Slot | PCIe [x16] x 1 | PCIe [x1] x 1 | PCIe [x4] x 1 | PCIe [x16] x 1 | PCI x 3 | M.2 B Key x 1 | PCIe x 1 | Mini-PCIe x 1 | Micro SIM x 1 |
| TPM | TPM 2.0 |
| Supply voltage | ATX |
| Operating temperature | 0°C / 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows® 11 IoT | Pro | Windows® 10 IoT | Pro | License Not Included in the Price. |
