ASB200-908-4COM
Brand: IBASE
Categories: Automation Box PC

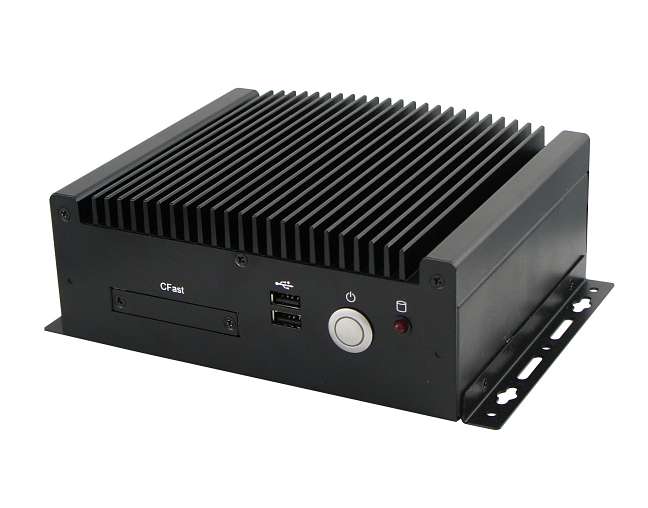

ASB200-908 is a Fanless box system with 12V~24V wide range power input. The system is built with the IBASE IB908 3.5-inch SBC, designed with 4th Generation Intel® Core™ i7-4650U and i5-4300U processors.
The ASB200-908 is ideal for industrial automation, transportation, security and retail POS applications that can benefit from the system's four Serial Ports and DC power input. Introduces IBASE's iSMART green technology with EuP/ErP power saving and smart timer
Measuring just 180x150x66mm, the ASB200-908 operates quietly and reliably in a small space. There are two 1600MHz DDR3L slots that accept up to 16GB of system memory. External I/Os 5x USB, 4x COM, 2x GbE, DVI-I, CFast socket, HDD LED
Features
| Product Code | ASB200-908-4COM |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-4300U 2 Core 1.90 GHz | BM : 2495 |
| Processor [CPU] Family | Intel® Core™ i5 4. Gen |
| RAM [System Memory] | [Max 16 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA320 GB |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 4 |
| Video Output | DVI-I x 1 |
| Mounting Type | stand |
| Supply Voltage | DC 12-24 V |
| Operating temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 180 x 150 x 66 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
