ARES-WHI0-A10-00
Brand: AAEON [An ASUS Co.]
Categories: ATX Sever Board
Powered by 3rd Gen Intel®
The ARES-WHI0 server motherboard is designed to combine industrial reliability and performance with artificial intelligence capability in a standard platform.
Based on the ATX standard form factor, the ARES-WHI0 server motherboard is powered by 3rd Gen Intel Xeon SP, providing next-generation high-end computing performance and support for vital data integrity and security technologies.

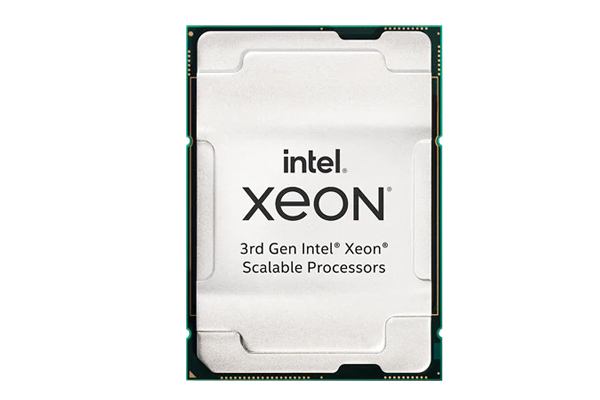

3rd Generation Xeon SP delivers faster processing speeds and Intel® Deep Learning Boost™ technology, enabling greater acceleration and more efficient processing for AI server applications.

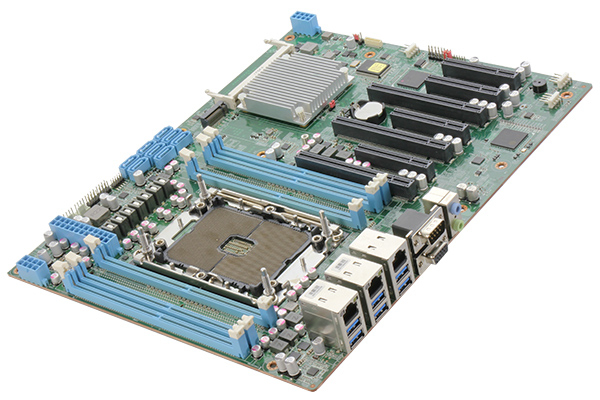

The ARES-WHI0 server motherboard comes equipped with three PCIe Gen4 [x16] slots and one PCIe 3.0 [x8] slot with [x16] form factor, allowing the motherboard to power up to four GPUs.
This support enables the ARES-WHI0 server blade to power performance-demanding applications, from edge AI servers to AI-Based visual inspection.
Additionally, the ARES-WHI0 server board offers three PCIe 3.0 [x4] slots in a [x8] form factor, perfect for frame grabbers, AI accelerators, or functional add-ons to meet the needs of individual applications.
The ARES-WHI0 server motherboard comes equipped with three PCIe Gen4 [x16] slots and one PCIe 3.0 [x8] slot with [x16] form factor, allowing the motherboard to power up to four GPUs.
This support enables the ARES-WHI0 server blade to power performance-demanding applications, from edge AI servers to AI-Based visual inspection.
Additionally, the ARES-WHI0 server board offers three PCIe 3.0 [x4] slots in a [x8] form factor, perfect for frame grabbers, AI accelerators, or functional add-ons to meet the needs of individual applications.

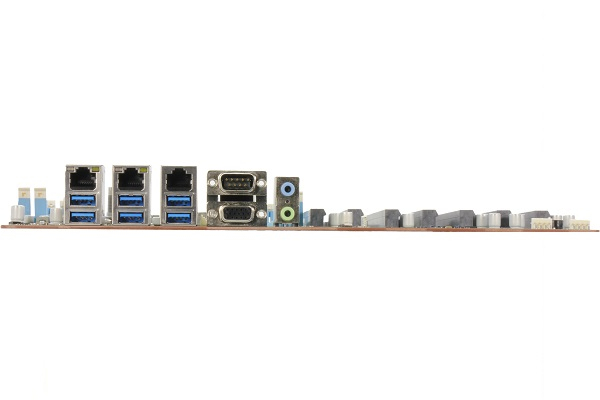

The ARES-WHI0 server motherboard is produced with AAEON's focus on industrial design, with I/O features including DIO, GPIO and Case Open headers.
Additionally, AAEON offers industry-leading service and support to deliver a platform designed for long service life.
The ARES-WHI0 server motherboard provides eight SATA III (6.0 Gbps) Ports, RAID support, and support for increased storage capacity with NVMe.
The motherboard also supports DDR4 2666 MHz R-DIMM Slot x 6, allowing for greater flexibility and storage speed in data server applications.
Features
| Product Code | ARES-WHI0-A10-00 |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Cooling | Optional: Heat Spreader |
| Processor [CPU] | Intel® Xeon® |
| Processor [CPU] Family | Intel® Xeon® |
| RAM [System Memory] | DDR4 |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA x 8 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 6 |
| Serial Port | x 1 header |
| Video Output | VGA x 1 |
| Expansion Slot | PCIe 3.0[x16] x 3 | PCIe 3.0[x8] x 1 | PCIe 3.0[x4] x 1 | [PCIe 3.0 x 8] x |
| Supply Voltage | ATX |
| Operating temperature | 0°C ~ 60°C |
| Certificates | CE |
