AMS302
Brand: IBASE
Categories:
AMS300 is a compact yet expandable Fanless system designed for industrial control and measurement in smart factory automation applications. It is powered by 6th and 7th Generation Intel® Core™ i7/i5/i3 processors.
It comes integrated with 8GB RAM (memory) and 64GB industrial-grade SSD storage. Optional 2MB MRAM Expansion module is available to store data even without power.
The AMS300 is manufactured with two module slots for PCIe/PCI cards and Fieldbus modules. It provides customers with flexibility in configuring the various I/Os required.

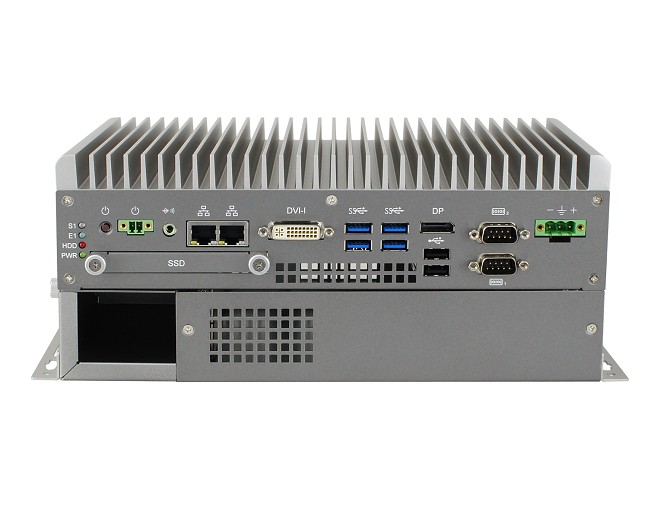

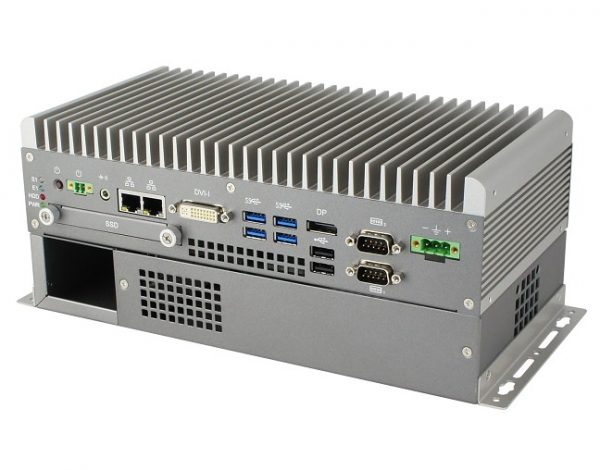

The unit has high vibration and impact resistance, important for use in harsh conditions, and all interfaces are placed on one side for easy installation and expansion.

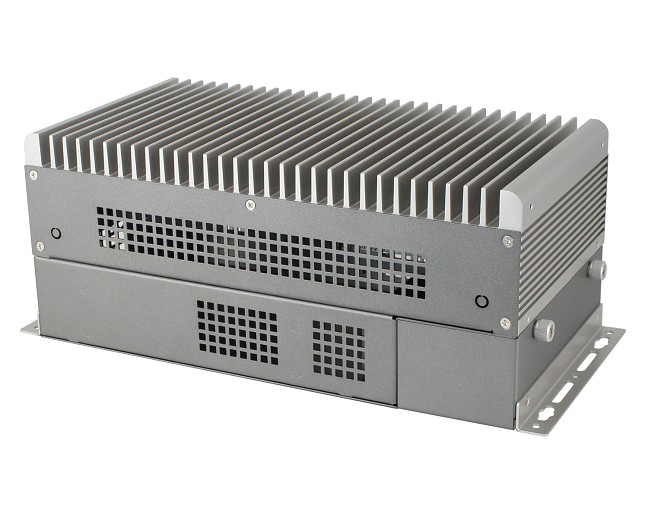

Built with a passive fin heat sink, the robust AMS300 delivers excellent thermal performance while operating reliably within the temperature range of -10°C to 60°C.
To meet customer-specific requirements, the AMS301 and AMS300 models include an expansion module with an IP301 card with 3x Mini-PCIe slots that can be fitted with optional PROFINET and PROFIBUS Fieldbus modules.
Features
| Product Code | AMS302 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 64 GB |
| LAN/Ethernet | GbE x 2 |
| RS 232 Serial Port | x 3 |
| Video Output | DVI-I x 1 + DP x 1 |
| Expansion Slot | Full Size Mini-PCIe [x1] x 1 | PCIe [x8] x 1 | PCIe [x4] x 1 | PCIe [x8] x 1 | PCIe [x4] x 1 |
| Mounting Type | stand |
| Supply Voltage | DC 24 V |
| Working temperature | -10°C ~ 60°C |
| External Dimensions (mm) | 275 x 140 x 117 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license. |
