AMS300

Brand: IBASE
Categories:

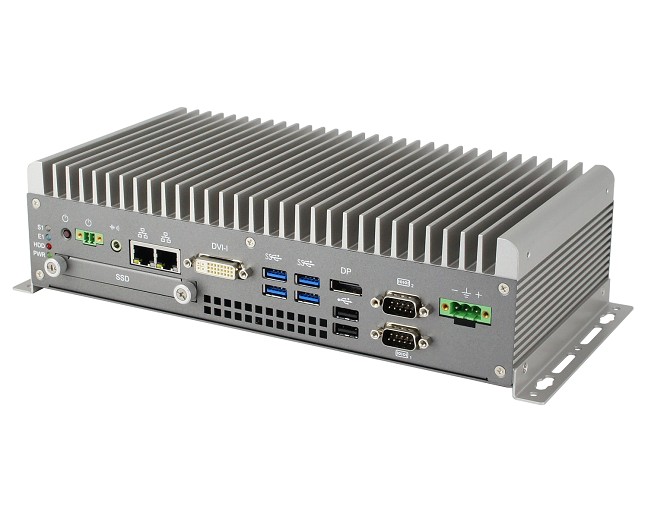

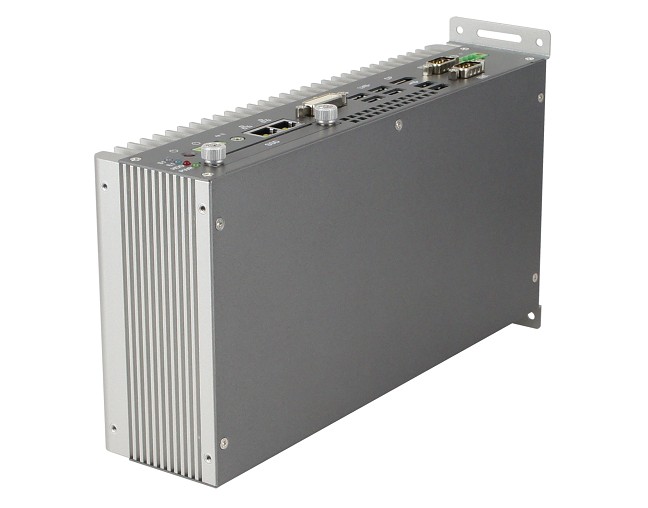

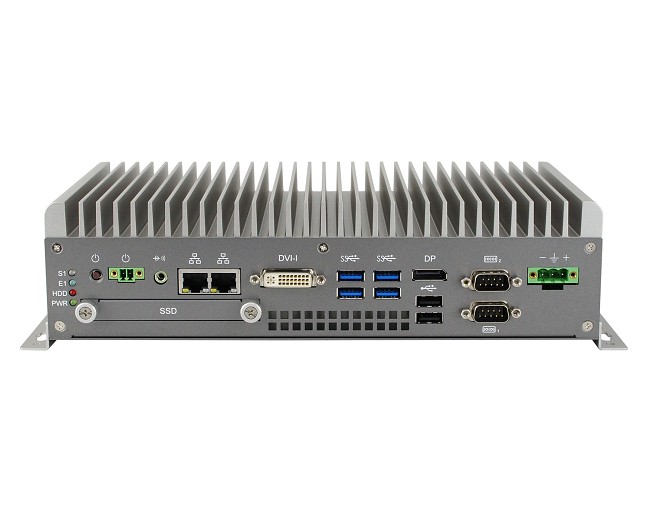

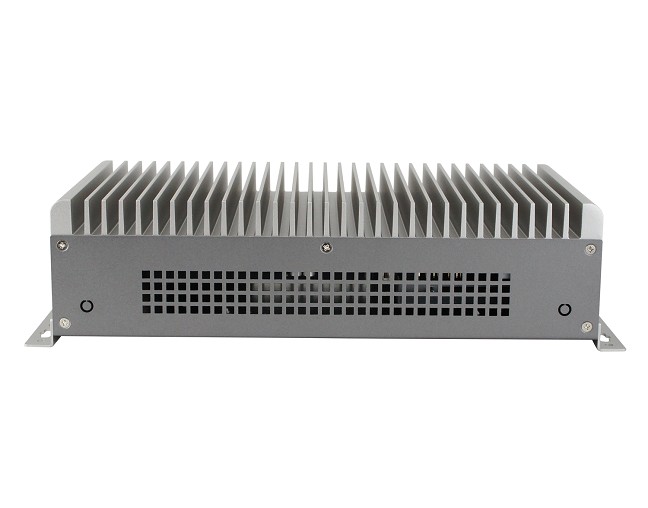

AMS300 is a compact yet expandable Fanless system designed for industrial control and measurement in smart factory automation applications. It is powered by 6th and 7th Generation Intel® Core™ i7/i5/i3 processors.

It comes integrated with 8GB RAM (memory) and 64GB industrial-grade SSD storage. Optional 2MB MRAM Expansion module is available to store data even without power.

It provides customers with flexibility in configuring the variety of I/O required. The unit also has very high vibration and shock resistance for use in harsh conditions, and all interfaces are on one side for easy installation and expansion.

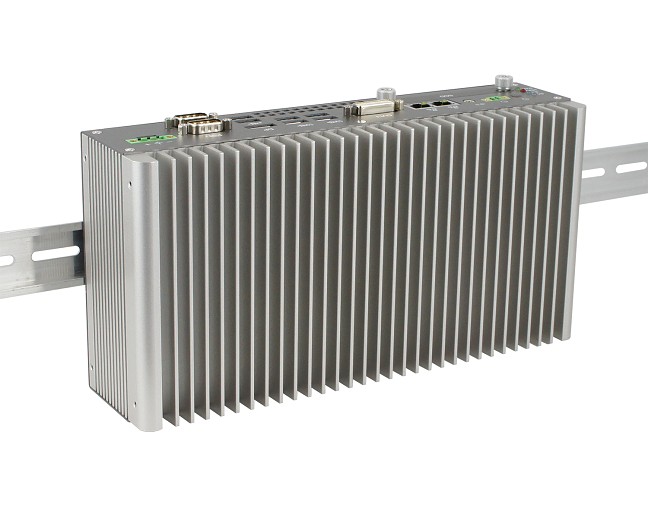

Built with a passive fin heat sink, the robust AMS300 delivers excellent thermal performance while operating reliably over a temperature range of -10°C to 60°C. Fits securely in wall, side and DIN, space-constrained and industrial environments

To meet customer-specific requirements, the AMS301 and AMS300 models include an expansion module with an IP301 card with 3x Mini-PCIe slots that can be fitted with optional PROFINET and PROFIBUS Fieldbus modules.


Features


Product Code AMS300
Cooling Without Fan
Processor [CPU] Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
Processor [CPU] Family Konfigüre edilebilir Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
RAM [System Memory] [Max 8 GB]
SSD/HDD/mSATA/M.2 2.5" SATA 64 GB
LAN/Ethernet GbE x 2
USB 3.0 x 4
USB 2.0 x 2
RS 232 Serial Port x 3
Video Output DVI-I x 1 + DP x 1
Audio Output Line-out x 1
Expansion Slot Full Size Mini PCIe x 1
Mounting Type stand
Supply Voltage DC 24 V
Working temperature -10°C ~ 60°C
External Dimensions (mm) 275 x 140 x 70
Body Material Aluminum
Certificates CE | FCC
Supported Operating Systems Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system sold separately from license.
