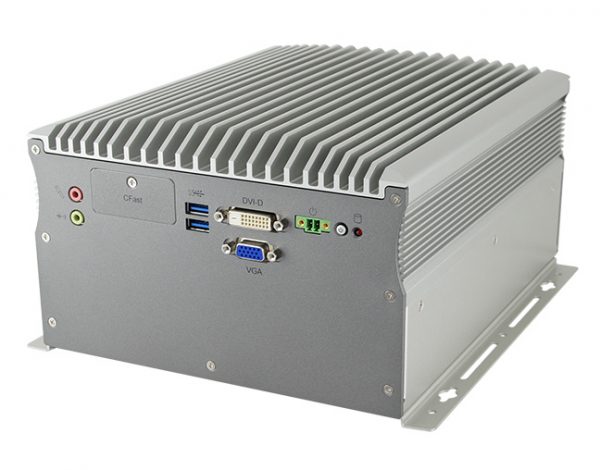

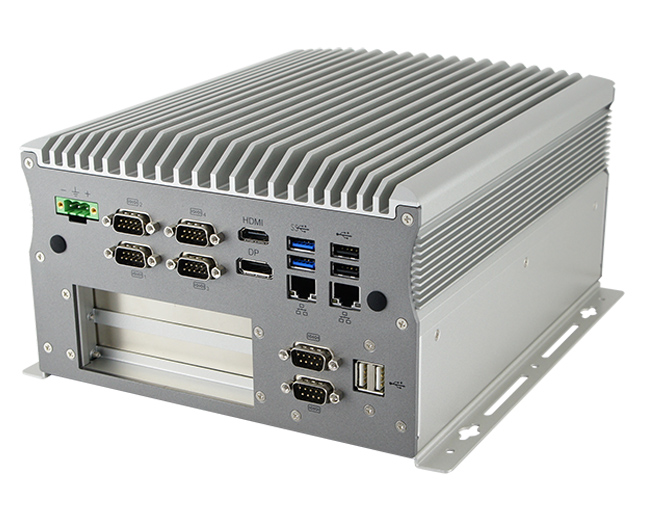

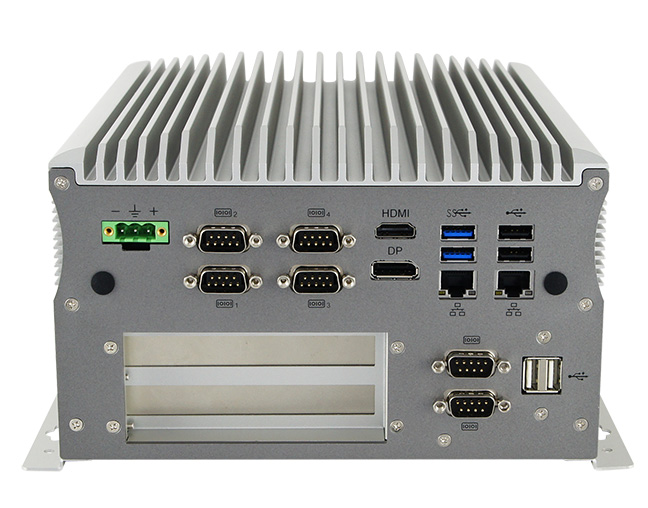

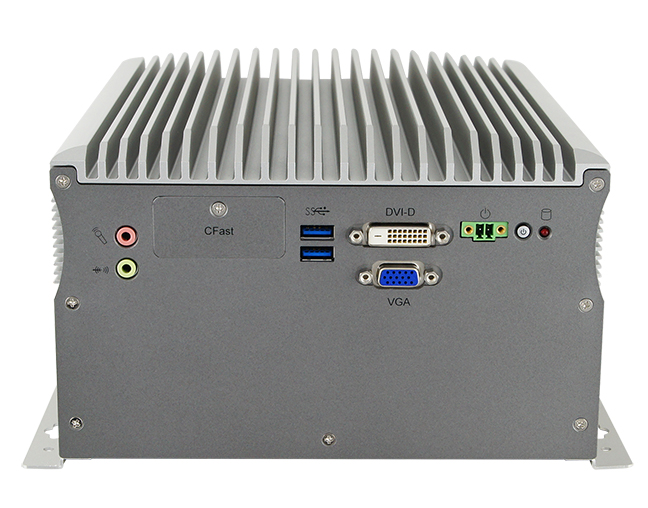

AMI210AF-PE
Brand: IBASE
Categories: Automation Box PC
AMI210 is an expandable modular Fanless system supporting 6th and 7th generation Intel® Core™ i7/i5/i3 desktop processors designed for industrial-grade solutions in smart factory automation and retail applications.
AMI210 is an innovative Fanless and wireless system built with an industrial-grade motherboard with efficient passive fin heat sink and a power supply with rich I/O interface and over-voltage, under-voltage and short-circuit protection. AMI220, system mount
The rugged AMI210 series is suitable for demanding applications in harsh environments. It has an operating temperature of -10°C to 50°C with enhanced passive cooling for maximum thermal performance. Additionally, it provides a wide range of voltage input from 12 V – 24 V and greater durability.
Features
| Product Code | AMI210AF-PE |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i7 | i5 | i3 7. Gen | Pentium® | Celeron® |
| Processor [CPU] Family | Intel® Core™ i7 | i5 | i3 7. Gen | Pentium® | Celeron® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 64 GB |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x 2 |
| USB 2.0 | x 2 |
| RS 232 Serial Port | x 3 + x 1 (Isolated) |
| Video Output | HDMI x 1 + VGA x 1 + DVI-D x 1 + DP x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | PCIe [x8] x 1 | PCIe [x1] x 1 | PCIe [x8] x 1 | PCIe [x1] x 1 |
| Wireless | 1 x Antenna hole |
| Mounting Type | stand |
| Supply Voltage | DC 12-24 V |
| Operating temperature | -10°C ~ 45°C |
| External Dimensions (mm) | 210 x 265 x 134 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC | LVD |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
