AMI200-970-3120ME
Brand: IBASE
Categories: Automation Box PC
The AMI200-970 industrial Fanless box pc includes an MI970 Mini-ITX motherboard supporting 3rd Generation Intel® Core™ processors.

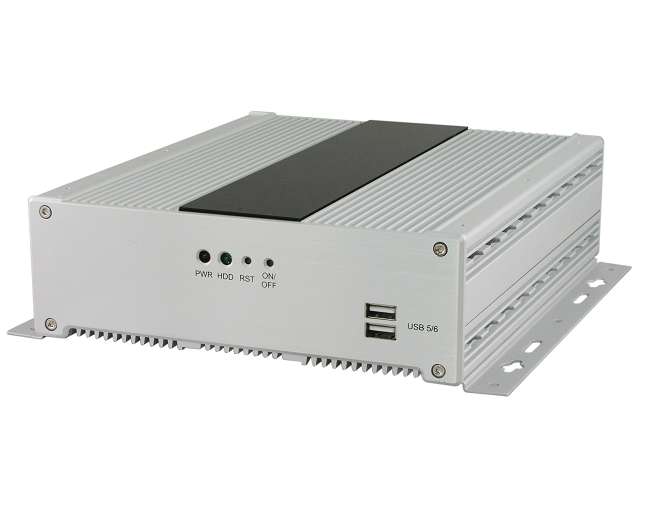

The silver-colored AMI200-970 functions as a desktop or wall-mount system, designed with LEDs for power and HDD, reset and power buttons, and two USB 2.0 Ports on the front panel. 232mm x 199mm x 63mm dimensions, Serial Port, DVI-I + DVI-D, dual
Each AMI200-970 comes standard with 8 GB DDR3 SO-DIMM system memory, a 100 GB hard disk drive and a 120 W power adapter. Ideal for environments and applications such as factory automation, multimedia, medical and digital signage. Fanless design allows the system
Features
| Product Code | AMI200-970-3120ME |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i3-3120ME 2 Core 2.40 GHz | BM : 1750 |
| Processor [CPU] Family | Intel® Core™ i3 3. Gen |
| RAM [System Memory] | 8 GB Default DDR4 |
| SSD/HDD/mSATA/M.2 | 2.5" SATA 100 GB |
| LAN/Ethernet | GbE x 2 |
| USB 2.0 | x 2 |
| Digital I/O | 4DI / 4DO |

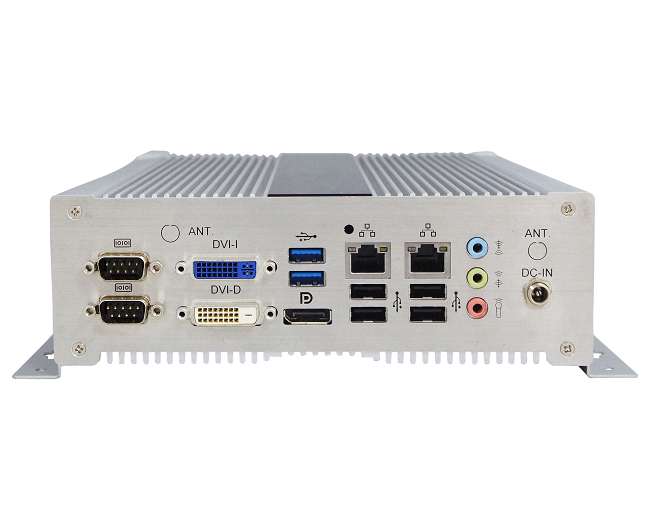

| Video Output | DVI-I x 1 + DVI-D x 1 + DP x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Wireless | 2 x Antenna hole |
| Mounting Type | stand |
| Supply Voltage | DC 24 V |
| Operating temperature | 0°C ~ 45°C |
| External Dimensions (mm) | 199 x 232 x 63.4 |
| Chassie Material | Aluminum |
| Certificates | CE | FCC | LVD |
| Supported Operating Systems | Windows 10 | Windows 8 | Windows 7 | Linux Ubuntu 22.04 | Licence Price is excluded. |
